Maximum Output Power per Carrier
6.3.2
No. of
Carriers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Note: Operation at or above these output power levels may prevent Fusion from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.
6-6
CONFIDENTIAL

800 MHz or 900 MHz SMR

Power per Carrier

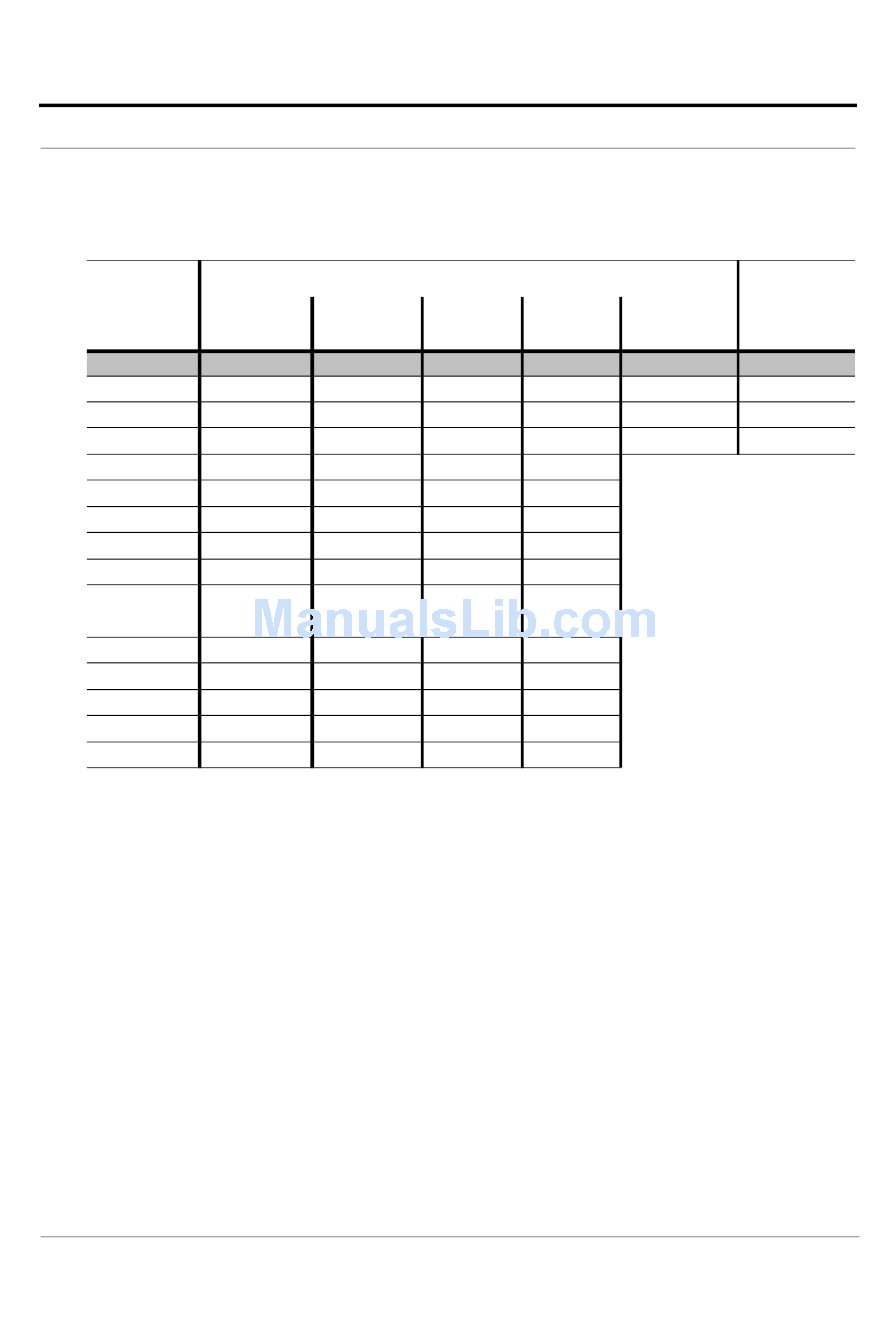

Table 6-1
Power per Carrier (dBm) - 800MHz/900 MHz
iDEN Analog FM
16.6/14.5 24.0/23.0
13.0/11.0 19.0/17.0
10.5/8.5 15.5/13.5
9.0/7.0 12.5/10.0
8.0/6.0 11.0/9.0
7.0/5.0 9.5/7.5
6.0/4.0 8.5/6.5
5.5/3.5 7.5/5.5
5.0/3.0 7.0/5.0
4.5/2.5 6.0/4.0
4.0/2.0
3.5/1.5
3.0/1.0
3.0/1.0
2.5/0.5
2.0/0
InterReach Fusion Installation, Operation, and Reference Manual
CQPSK C4FM
21.0/19.0 24.0/23.0
16.0/14.0 18.5/16.5
13.5/11.5 15.0/13.0
11.5/9.5 12.5/10.5
10.0/8.0 10.5/8.5
8.5/6.5 9.0/7.0
8.0/6.0 8.0/6.0
7.0/5.0 7.5/5.5
6.5/4.5 6.5/4.5
6.0/4.0 6.0/4.0
DataTac/ POCSAG/
Mobitex REFLEX
24.0/23.0 23.0
18.5/16.5 16.5
15.0/13.0 13.0
12.5/10.5 10.5
