D-620610-0-20 Rev D
WARNING: The warning color code of the power cables depends on
the color coding of the DC power source installed at your site. Color
code standards for DC wiring do not exist. To ensure that the correct
polarity is connected to the hubs, confirm the connection of the
power cables to the + (positive) and - (negative) leads (Figure 7-6) at
the power source.

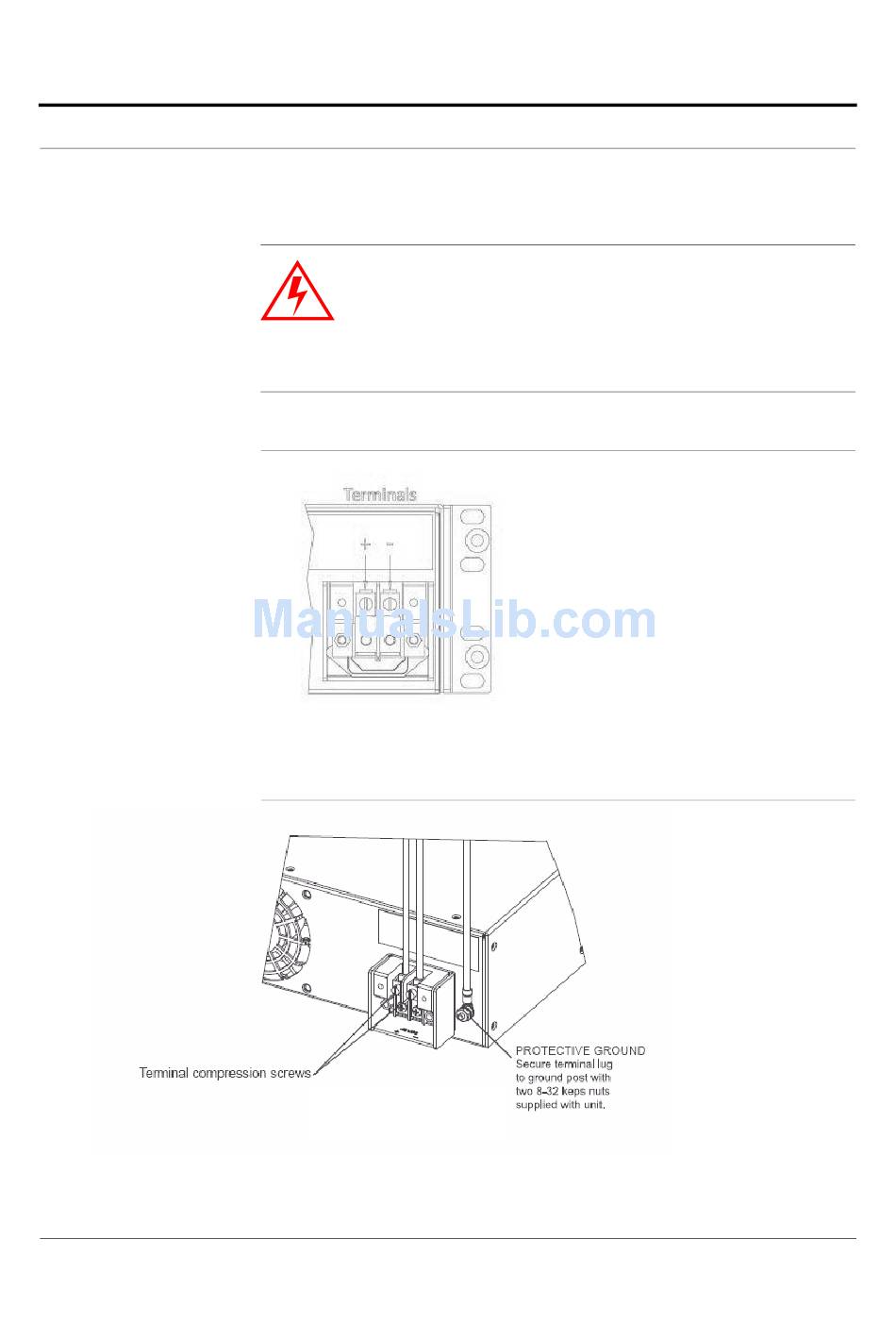

DC Terminals
Figure 7-6
Use the illustrations in Figure 7-7 and Figure 7-9 to connect the power.
7.
Power Screw Locations
Figure 7-7
Help Hot Line (U.S. only): 1-800-530-9960
Fusion Installation Procedures
CONFIDENTIAL
7-19
