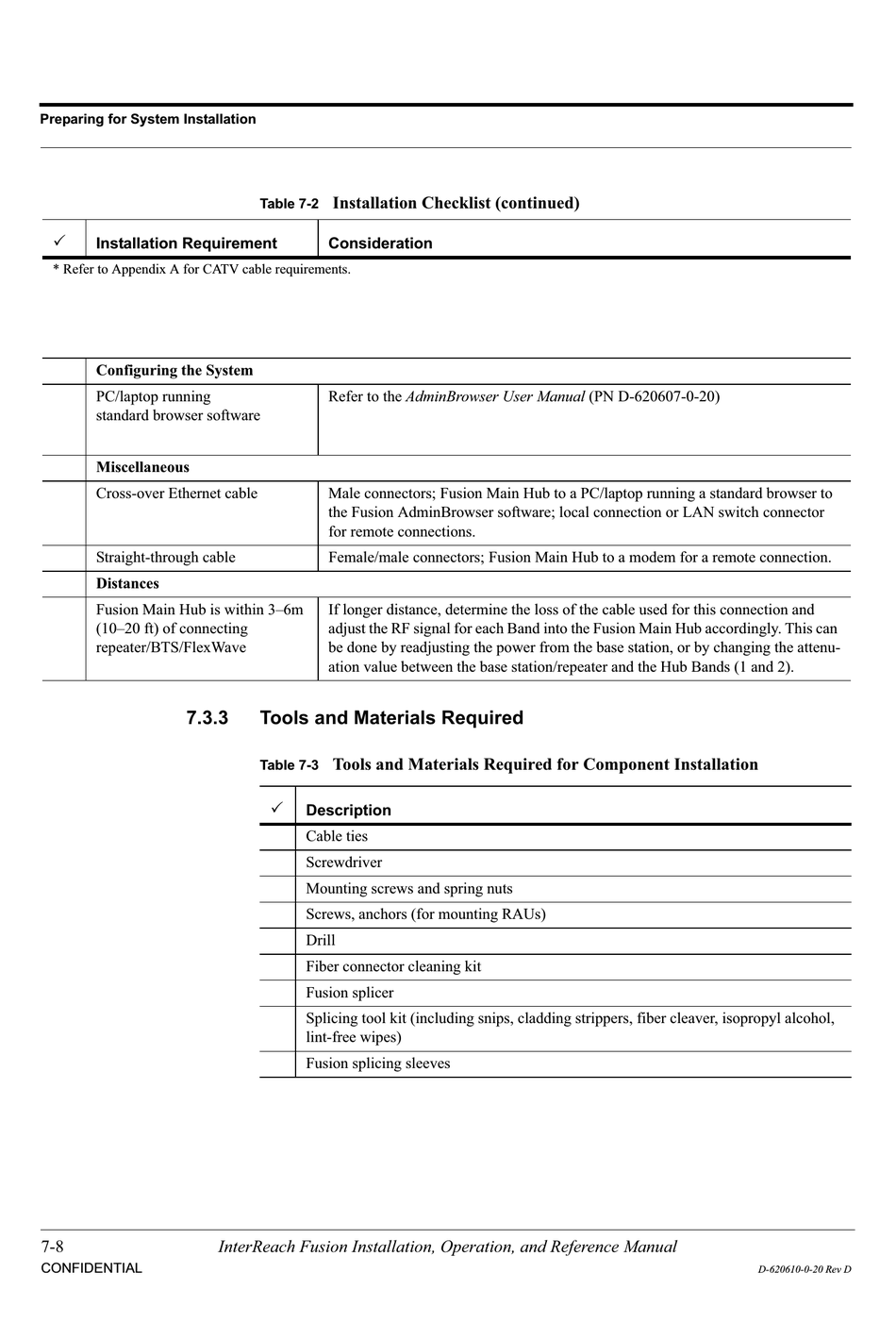

Tools And Materials Required; Table 7-3 Tools And Materials Required For Component Installation - ADC InterReach Fusion Installation, Operation And Reference Manual

Preparing for System Installation
3
Installation Requirement
* Refer to Appendix A for CATV cable requirements.
Configuring the System
PC/laptop running
standard browser software
Miscellaneous
Cross-over Ethernet cable
Straight-through cable
Distances
Fusion Main Hub is within 3–6m
(10–20 ft) of connecting
repeater/BTS/FlexWave
7.3.3
7-8
CONFIDENTIAL
Installation Checklist (continued)
Table 7-2
Consideration
Refer to the AdminBrowser User Manual (PN D-620607-0-20)
Male connectors; Fusion Main Hub to a PC/laptop running a standard browser to
the Fusion AdminBrowser software; local connection or LAN switch connector
for remote connections.
Female/male connectors; Fusion Main Hub to a modem for a remote connection.
If longer distance, determine the loss of the cable used for this connection and
adjust the RF signal for each Band into the Fusion Main Hub accordingly. This can
be done by readjusting the power from the base station, or by changing the attenu-
ation value between the base station/repeater and the Hub Bands (1 and 2).

Tools and Materials Required

Tools and Materials Required for Component Installation
Table 7-3
3
Description
Cable ties
Screwdriver
Mounting screws and spring nuts
Screws, anchors (for mounting RAUs)
Drill
Fiber connector cleaning kit
Fusion splicer
Splicing tool kit (including snips, cladding strippers, fiber cleaver, isopropyl alcohol,
lint-free wipes)
Fusion splicing sleeves
InterReach Fusion Installation, Operation, and Reference Manual
D-620610-0-20 Rev D
