D-620610-0-20 Rev D

Installing a Fusion Expansion Hub Directly to the Wall

To install the Hub directly to the wall:
Pre-install 3/4" plywood to the wall.
1.
Mount both of the rack mounting brackets using #10-32 machine screws (refer to
2.
illustration Figure 7-17).
Attach the Hub to the wall so the mounting brackets are orientated at the top and
3.
bottom of the wall mounted hub. (Refer to Figure 7-18.)

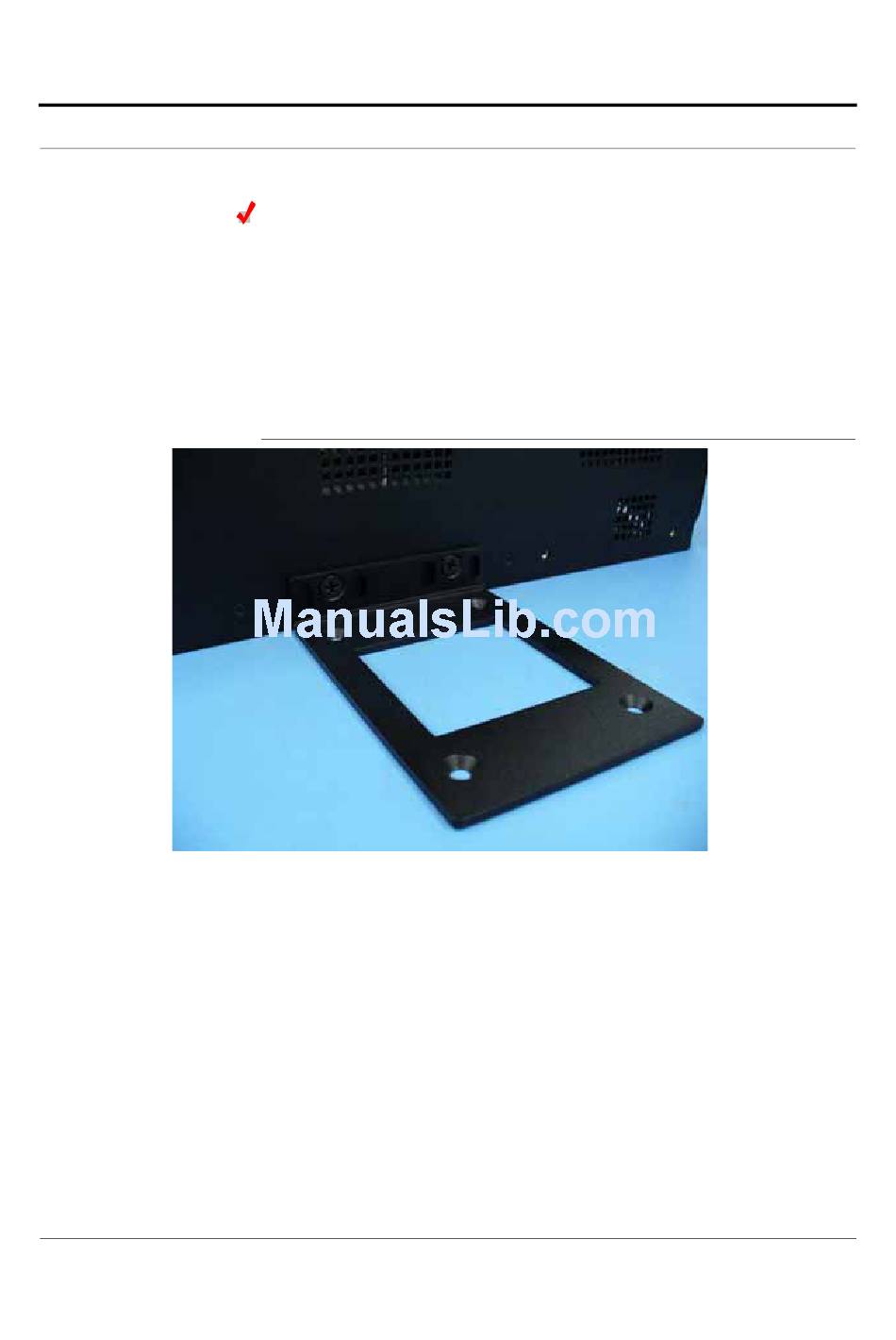

Using Hub Rack-Mounting Brackets for Direct Wall Installation
Figure 7-17
Help Hot Line (U.S. only): 1-800-530-9960
Fusion Installation Procedures
CONFIDENTIAL
7-27
