Remote Access Unit Connectors; 50 Ohm Type-N Connector; 75 Ohm Type-F Connector - ADC InterReach Fusion Installation, Operation And Reference Manual

5.2
5.2.1
5.2.2
D-620610-0-20 Rev D

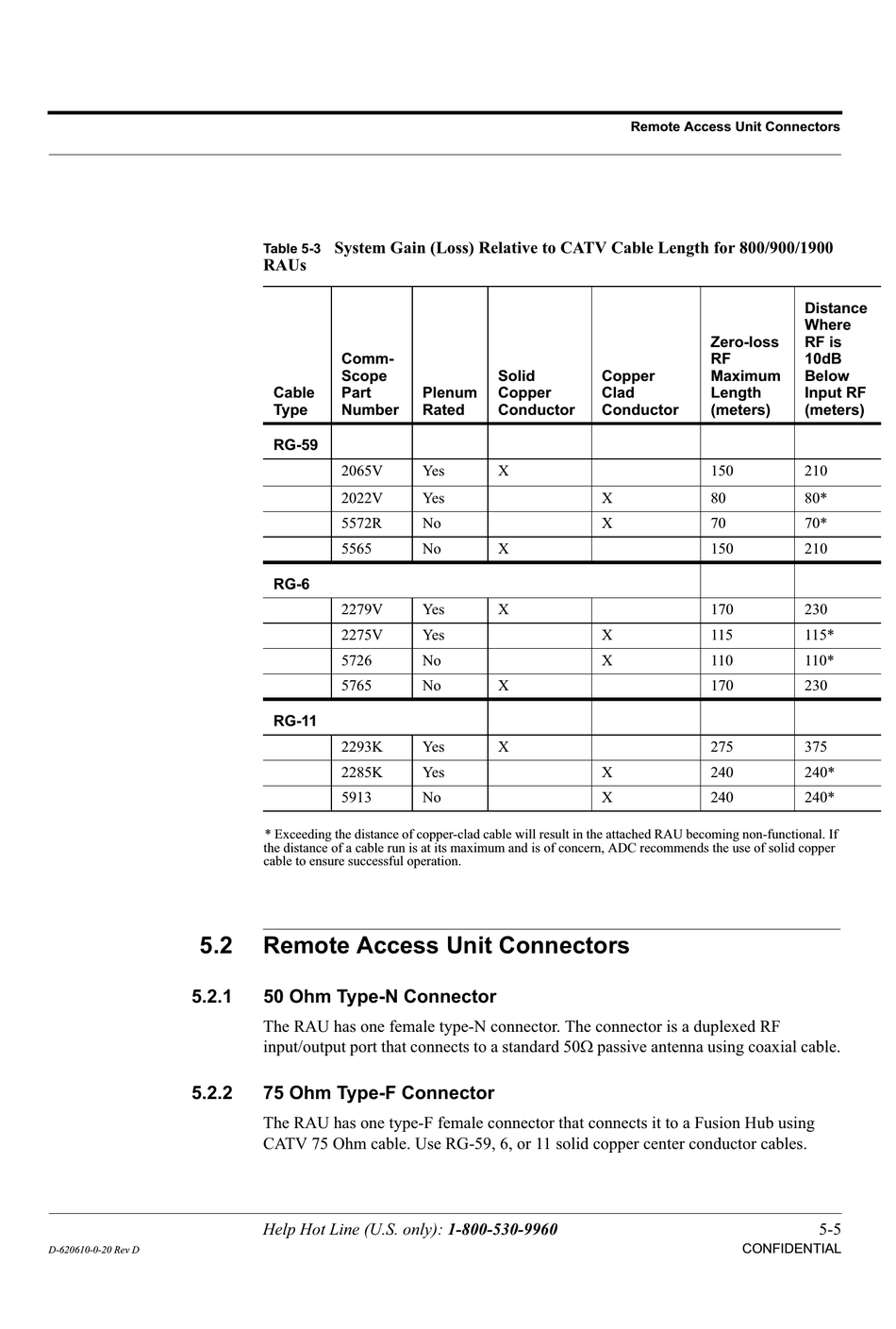

System Gain (Loss) Relative to CATV Cable Length for 800/900/1900
Table 5-3
RAUs
Comm-
Scope
Cable Part Plenum
Type Number Rated
RG-59
2065V Yes
2022V Yes
5572R No
5565 No
RG-6
2279V Yes
2275V Yes
5726 No
5765 No
RG-11
2293K Yes
2285K Yes
5913 No
* Exceeding the distance of copper-clad cable will result in the attached RAU becoming non-functional. If
the distance of a cable run is at its maximum and is of concern, ADC recommends the use of solid copper
cable to ensure successful operation.

Remote Access Unit Connectors

50 Ohm Type-N Connector

The RAU has one female type-N connector. The connector is a duplexed RF
input/output port that connects to a standard 50: passive antenna using coaxial cable.

75 Ohm Type-F Connector

The RAU has one type-F female connector that connects it to a Fusion Hub using
CATV 75 Ohm cable. Use RG-59, 6, or 11 solid copper center conductor cables.
Help Hot Line (U.S. only): 1-800-530-9960
Remote Access Unit Connectors
Solid Copper
Copper Clad
Conductor Conductor
X
X
X
X
X
X
X
X
X
X
X
Distance
Where
Zero-loss RF is
RF 10dB
Maximum Below
Length Input RF
(meters) (meters)
150 210
80 80*
70 70*
150 210
170 230
115 115*
110 110*
170 230
275 375
240 240*
240 240*
5-5
