7.8
7.8.1
D-620610-0-20 Rev D

Alarm Monitoring Connectivity Options

The following connectivity options are described:
• Section 7.8.1 Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-61
• Section 7.8.2 Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-62
• Section 7.8.3 100 BASE-T Port Expander Connection . . . . . . . . . . . . . . . . . 7-71
• Section 7.8.4 POTS Line Sharing Switch Connection . . . . . . . . . . . . . . . . . . 7-72
• Section 7.8.5 Ethernet RF Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-73
• Section 7.8.6 Ethernet LAN Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-74
• Section 7.8.7 SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-75

Direct Connection

In this configuration, the PC connects directly to the
Fusion Main Hub's front panel using an Ethernet cross-over cable.

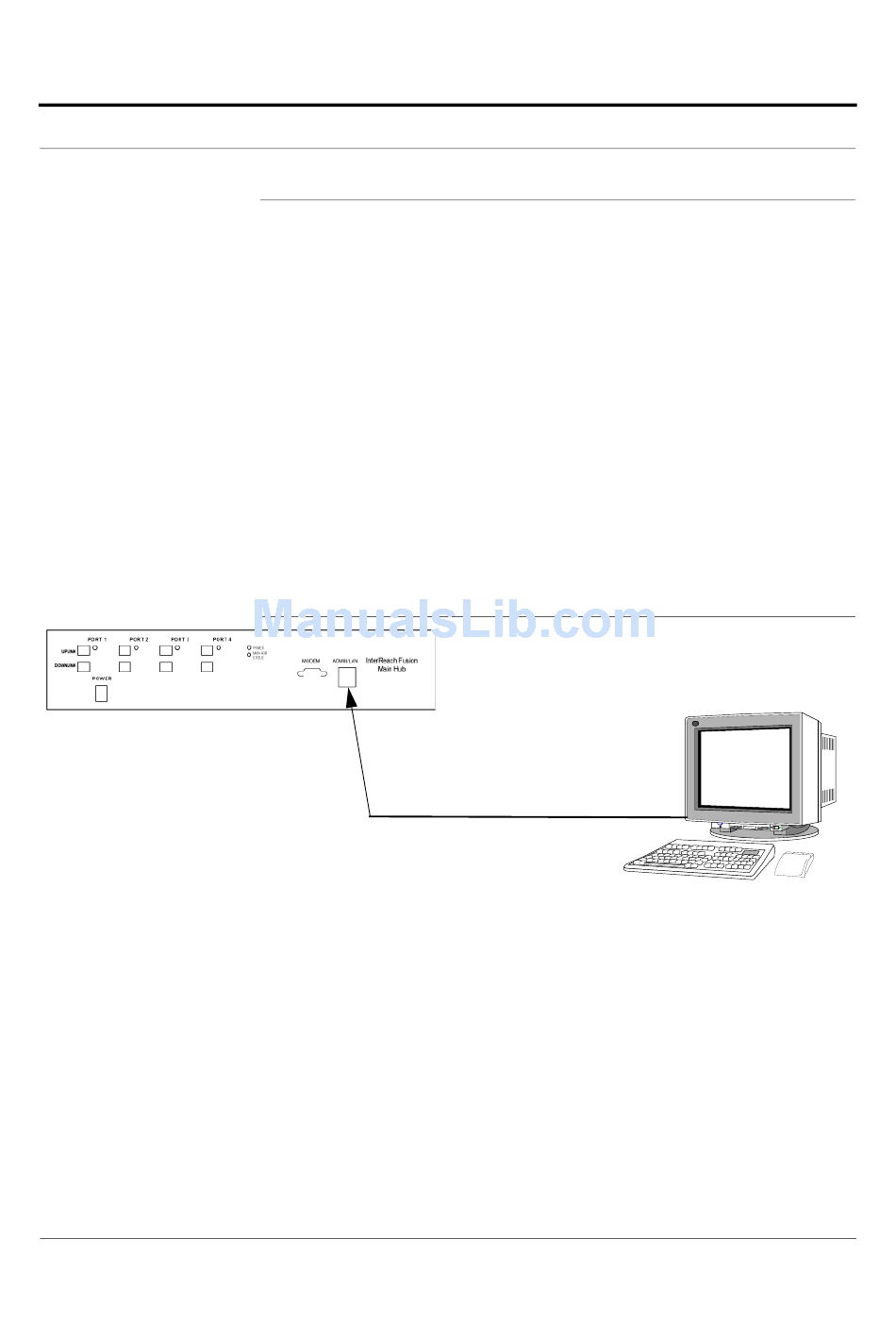

OA&M Direct Connection
Figure 7-38
Cross-over 100 BASE-T Cable
Help Hot Line (U.S. only): 1-800-530-9960

Alarm Monitoring Connectivity Options

RJ-45 100 BASE-T
AdminBrower is resident
in Fusion.
port on the
PC running
Standard Browser
Software
7-61
