2.3
Use AdminBrowser to configure
or monitor a local or a remote
Fusion system.
D-620610-0-20 Rev D
System OA&M Capabilities Overview
InterReach Fusion is microprocessor controlled and contains firmware to enable much of
the operations, administration, and maintenance (OA&M) functionality.
Complete alarming, down to the field replaceable unit (that is, Fusion Main Hub,
Expansion Hub, and Remote Access Unit) and the cabling infrastructure, is available.
All events occurring in a system, defined as a Fusion Main Hub and all of its associ-
ated Expansion Hubs and Remote Access Units, are automatically reported to the
Main Hub. The Main Hub monitors system status and communicates that status using
the following methods:
• Normally closed (NC) alarm contact closures can be tied to standard NC alarm
monitoring systems or directly to a base station for basic alarm monitoring.
• Connection Methods:
• The Main Hub's front panel RJ-45 port connects directly to a PC (for local
Ethernet access).
• The Main Hub's front panel RS-232 serial port connects directly to a modem
(for remote access).
• Remote access is also available with an optional 100BASE-T LAN switch con-
nections to the RJ-45 port.

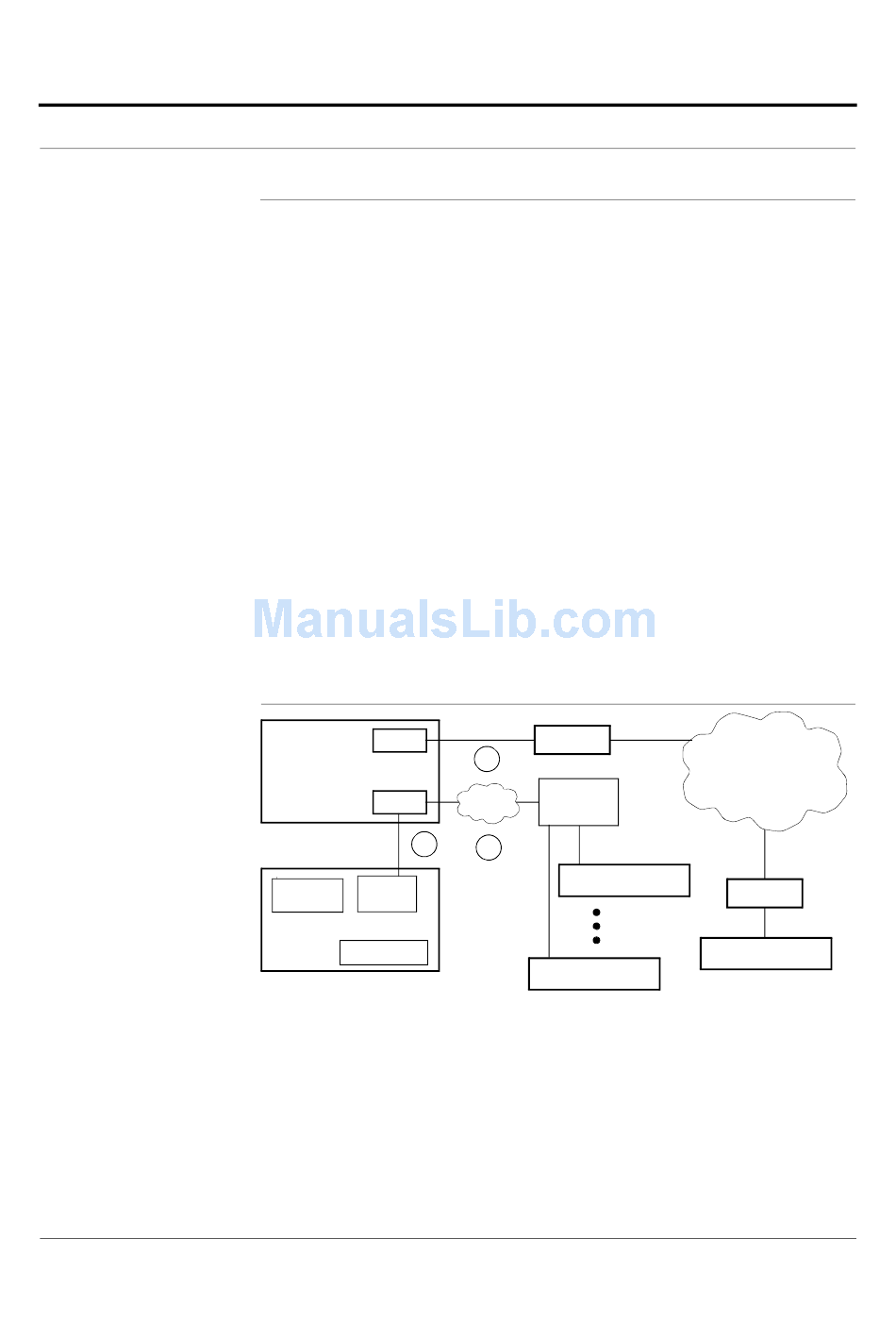

Three Methods for OA&M Communications
Figure 2-3
PC/Laptop
RS-232
running a
Standard Browser
RS-232 Ethernet
1
RS-232
R-J-45
Ethernet
Modem
t
Fusion Main Hub
F-conn.
Admin Browser
AdminBrowser OA&M software runs on the Fusion Main Hub microprocessor and
communicates to its downstream Expansion Hubs and associated RAUs. Using
AdminBrowser, you can perform the following from any standard web browser
(Internet Explorer) running on your PC/laptop system:
• Configure a newly installed system
• Change system parameters
Help Hot Line (U.S. only): 1-800-530-9960
System OA&M Capabilities Overview
Modem
2
LAN
TCP/IP
Switch
3
Ethernet
Fusion Main Hub
Fusion Main Hub
PSTN
Modem
Fusion Main Hub
2-5
