2.4
PORT 1 PORT 2 PORT 3 PORT 4
CATV (RG-59, 6, or 11)
RAU
D-620610-0-20 Rev D
When you connect FlexWave Focus or a BTS to the Fusion, the Fusion Main Hub
outputs the alarms (alarm source) and FlexWave Focus or the BTS receives the
alarms (alarm sense). This is described in Section 7.7.1 on page 7-56.

System Connectivity

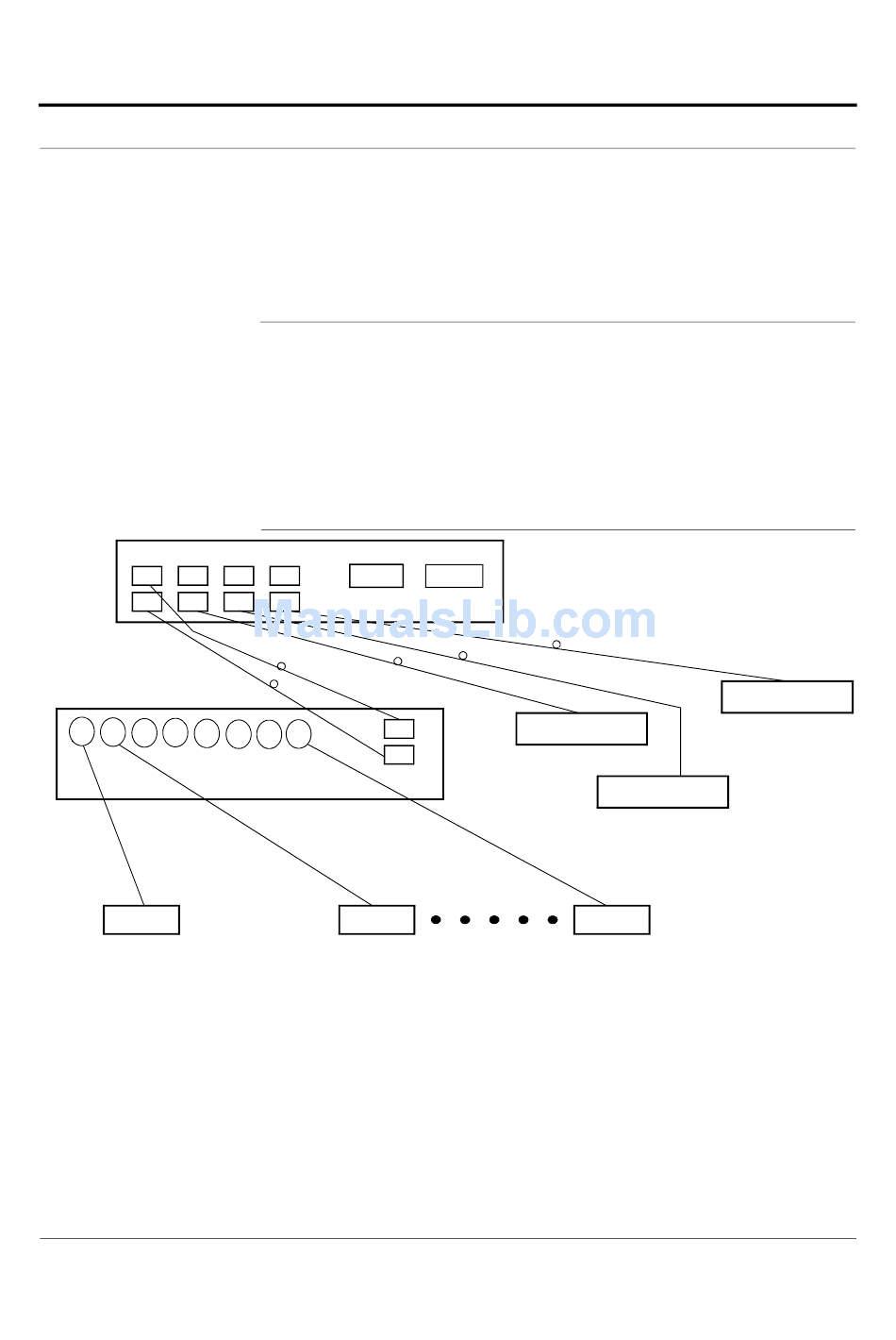

The double star architecture of the Fusion system, illustrated in Figure 2-5, provides
excellent system scalability and reliability. The system requires only one pair of
fibers for eight antenna points. This makes any system expansion, such as adding an
extra antenna for additional coverage, potentially as easy as pulling an extra CATV
cable.
Fusion's Double Star Architecture
Figure 2-5
RS-232
Main Hub
Fiber
Expansion Hub
CATV
RAU
up to 8 RAUs per Expansion Hub
Help Hot Line (U.S. only): 1-800-530-9960
RJ-45
Expansion Hub
CATV
RAU
System Connectivity
Expansion Hub
Expansion Hub
CONFIDENTIAL
2-7
