Installing a Fusion Main Hub Directly to the Wall

To install the Hub directly to the wall:
Pre-install 3/4" plywood to the wall.
1.
Mount both of the rack mounting brackets using #10-32 machine screws (refer to
2.
illustration Figure 7-4).
Attach the Hub to the wall so the mounting brackets are orientated at the top and
3.
bottom of the wall mounted hub. (Refer to Figure 7-3.)

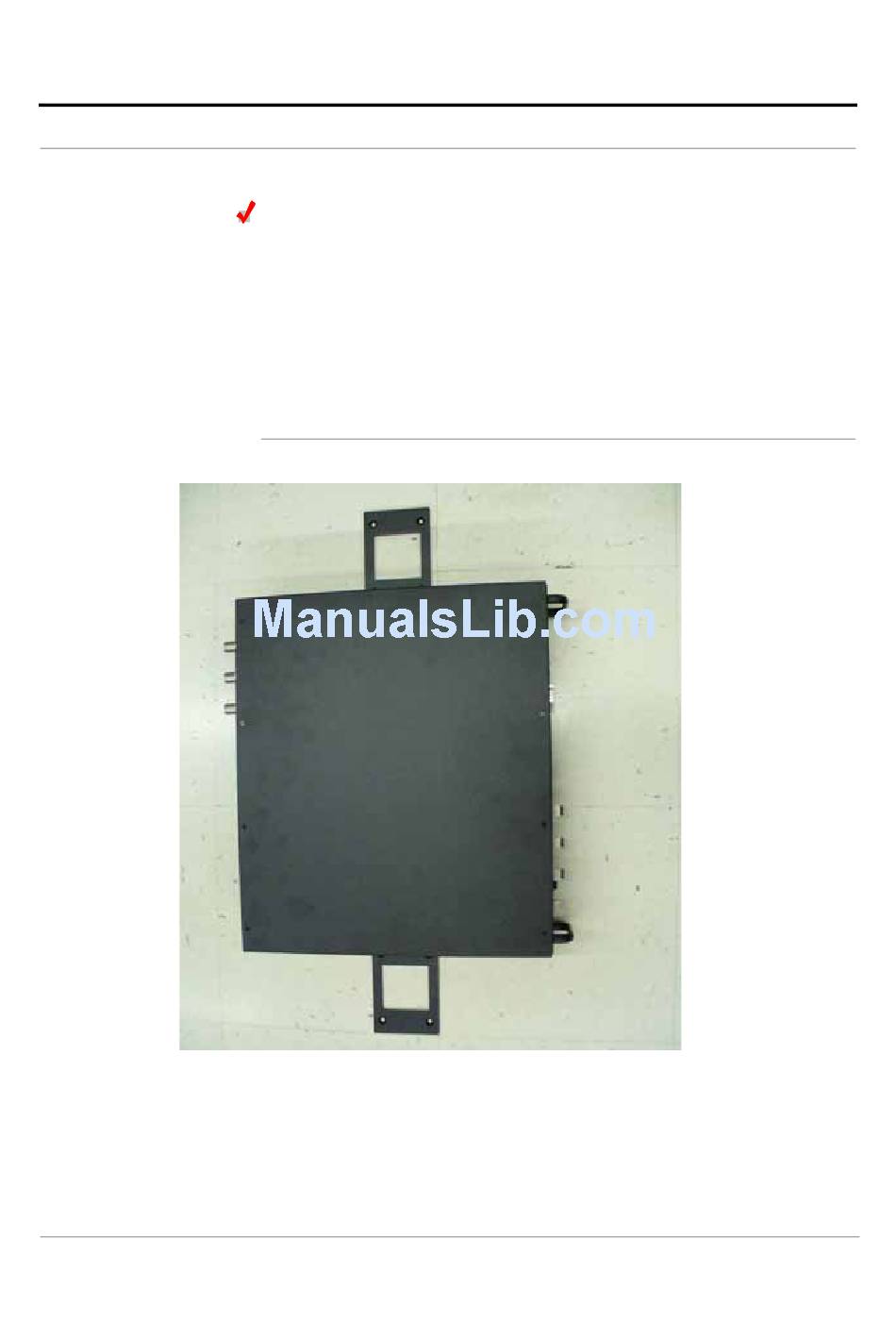

Installing Directly to the Wall
Figure 7-3
Use two #10 Pan Head wood screws, 1-1/2" length, to secure each bracket to the
plywood. In this orientation the enclosure fans shall face to the left.
