Fusion Installation Procedures
7-22
CONFIDENTIAL

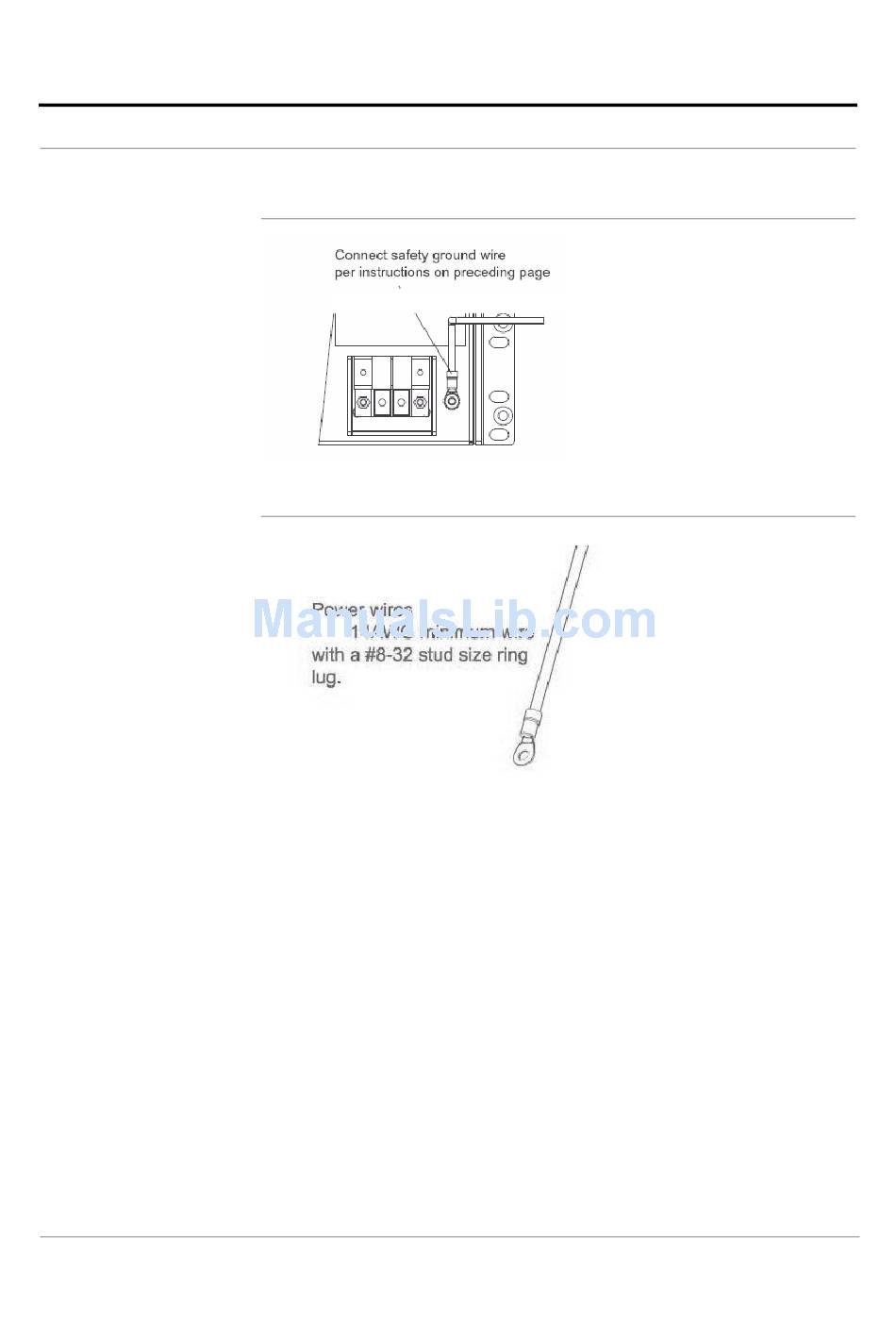

Grounding Wire Connection
Figure 7-11
Power Wires and Studs
Figure 7-12
Install the finish wires using the proper polarity and secure them with #8-32 pan
3.
head screws previously removed as illustrated in Figure 7-13.
InterReach Fusion Installation, Operation, and Reference Manual
D-620610-0-20 Rev D
