Table 3-1 Fusion Hub Status Led States; Table 3-2 Fusion Hub Port Led States - ADC InterReach Fusion Installation, Operation And Reference Manual

POWER
STATUS
POWER
STATUS
POWER
STATUS
POWER
STATUS
POWER
STATUS
PORT
PORT
PORT
D-620610-0-20 Rev D

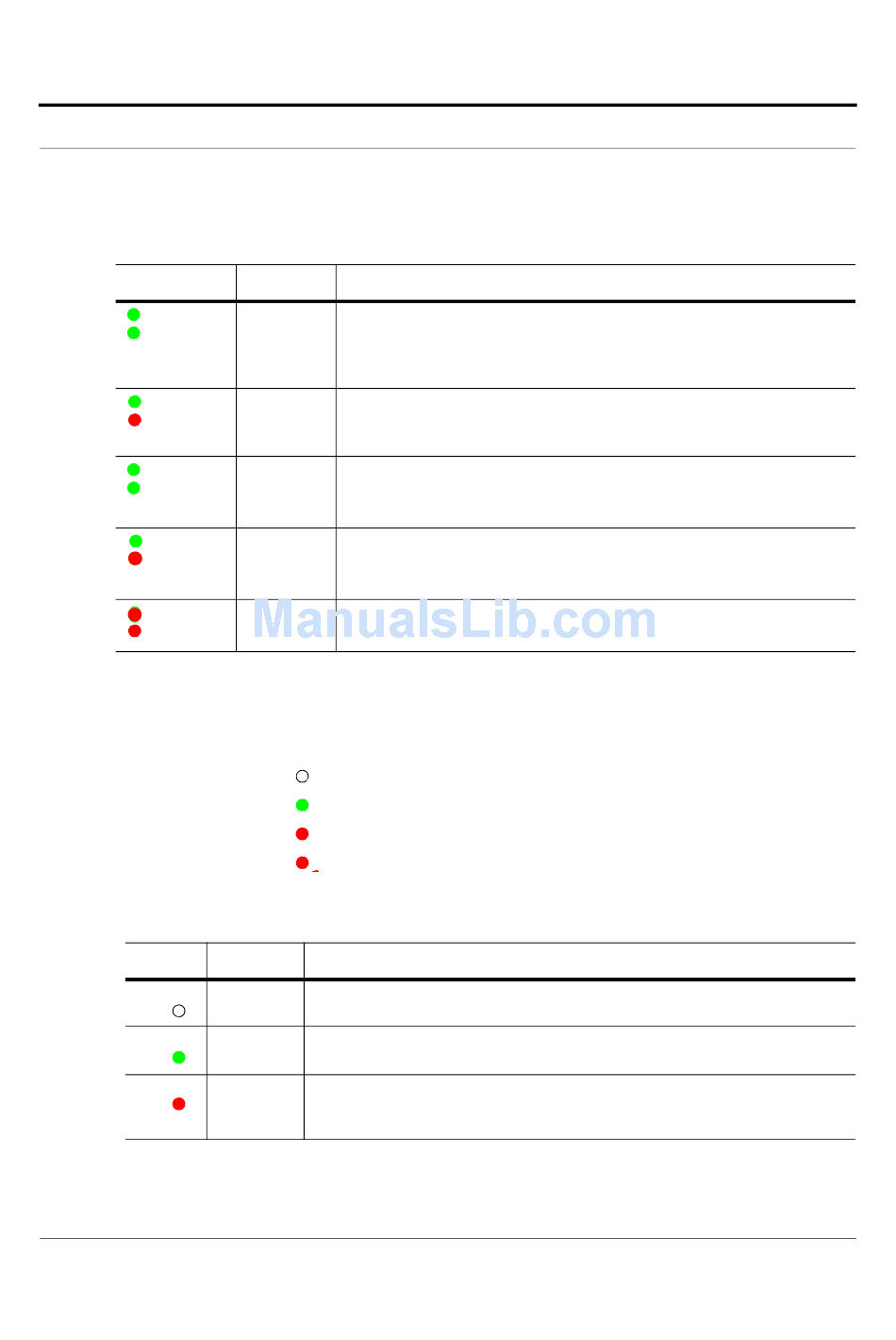

Fusion Hub Status LED States
Table 3-1
LED State Indicates
Green • The Main Hub is connected to power and all power supplies are operating.
• The Main Hub is not reporting a fault; however, the system test may need to
Green
be performed or a warning condition may exist. Use AdminBrowser to deter-
mine this.
Green • The Main Hub is connected to power and all power supplies are operating.
Use AdminBrowser to power status.
Red
• The Main Hub is reporting a fault.
Green • The Main Hub is connected to power and all power supplies are operating.
Use Admin Browser to determine power status.
Green
• The Main Hub is reporting a lockout condition.
(60-ppm)
Green • The Main Hub is connected to power and all power supplies are operating.
• The Main Hub DL input signal level is too high.
Red
(60-ppm)
Red • One or more power supplies are out-of-specification.
Red
Fiber Port LEDs
The Main Hub has one fiber port LED for each of the four fiber ports. The LED can
be in one of the states shown in Table 3-2. This LED can be:
off
steady green
steady red
flashing red (60 ppm)
Fusion Hub Port LED States
Table 3-2
LED State Indicates
Off • The Expansion Hub is not connected.
• The Expansion Hub is connected.
Green
• There are no faults from the Expansion Hub or any connected RAU.
Red • There was a loss of communications with the Expansion Hub.
(60 PPM)
Help Hot Line (U.S. only): 1-800-530-9960
Fusion Main Hub Front Panel
CONFIDENTIAL
3-7
