Table 2-18 2100 Mhz Rf End-To-End Performance; Table 2-19 2100 Mhz Rf End-To-End Performance - ADC InterReach Fusion Installation, Operation And Reference Manual

D-620610-0-20 Rev D

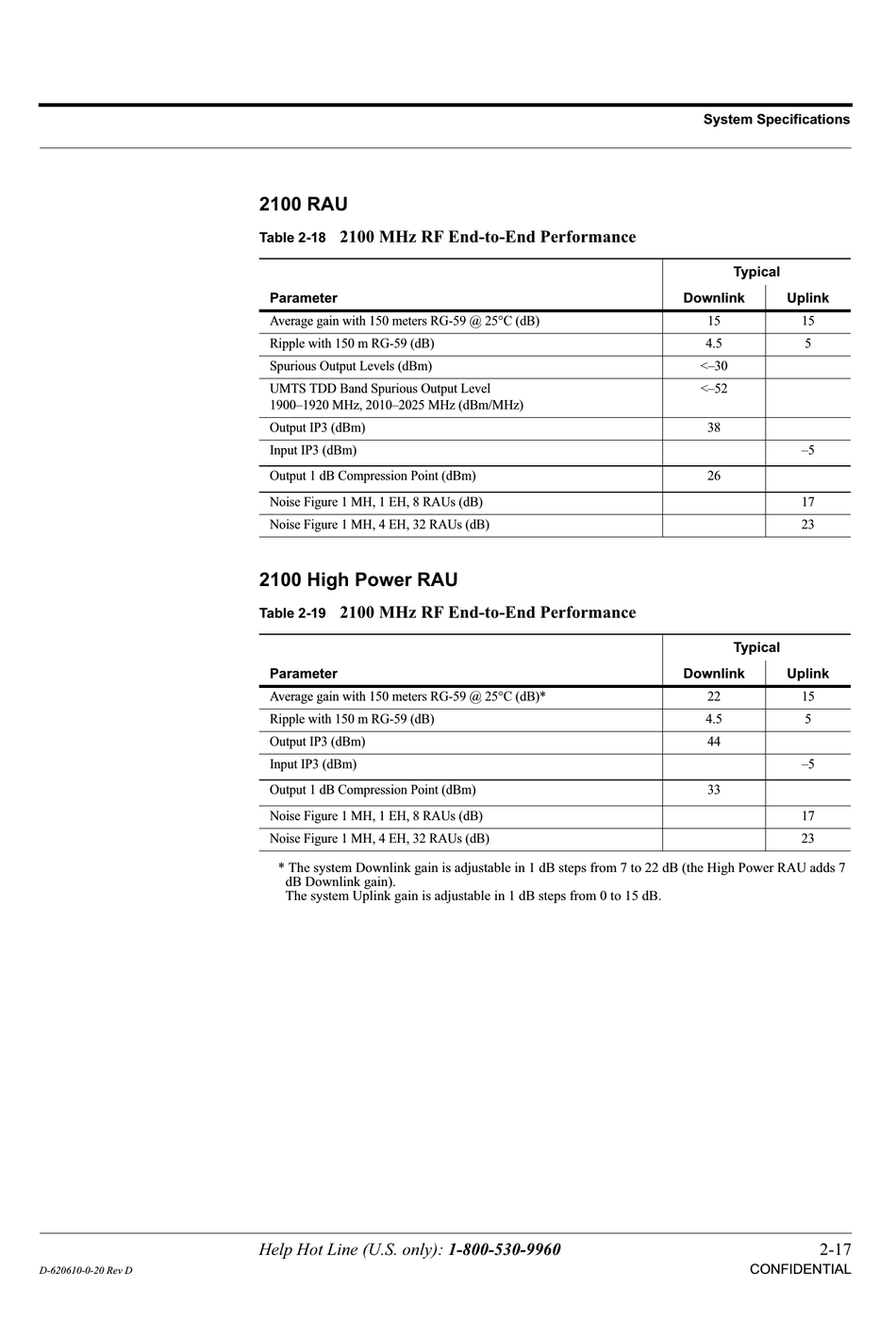

2100 RAU
2100 MHz RF End-to-End Performance
Table 2-18
Parameter
Average gain with 150 meters RG-59 @ 25qC (dB)
Ripple with 150 m RG-59 (dB)
Spurious Output Levels (dBm)
UMTS TDD Band Spurious Output Level
1900–1920 MHz, 2010–2025 MHz (dBm/MHz)
Output IP3 (dBm)
Input IP3 (dBm)
Output 1 dB Compression Point (dBm)
Noise Figure 1 MH, 1 EH, 8 RAUs (dB)
Noise Figure 1 MH, 4 EH, 32 RAUs (dB)
2100 High Power RAU
2100 MHz RF End-to-End Performance
Table 2-19
Parameter
Average gain with 150 meters RG-59 @ 25qC (dB)*
Ripple with 150 m RG-59 (dB)
Output IP3 (dBm)
Input IP3 (dBm)
Output 1 dB Compression Point (dBm)
Noise Figure 1 MH, 1 EH, 8 RAUs (dB)
Noise Figure 1 MH, 4 EH, 32 RAUs (dB)
* The system Downlink gain is adjustable in 1 dB steps from 7 to 22 dB (the High Power RAU adds 7
dB Downlink gain).
The system Uplink gain is adjustable in 1 dB steps from 0 to 15 dB.
Help Hot Line (U.S. only): 1-800-530-9960
System Specifications
Typical
Downlink Uplink
15 15
4.5 5
<–30
<–52
38
–5
26
17
23
Typical
Downlink Uplink
22 15
4.5 5
44
–5
33
17
23
2-17
