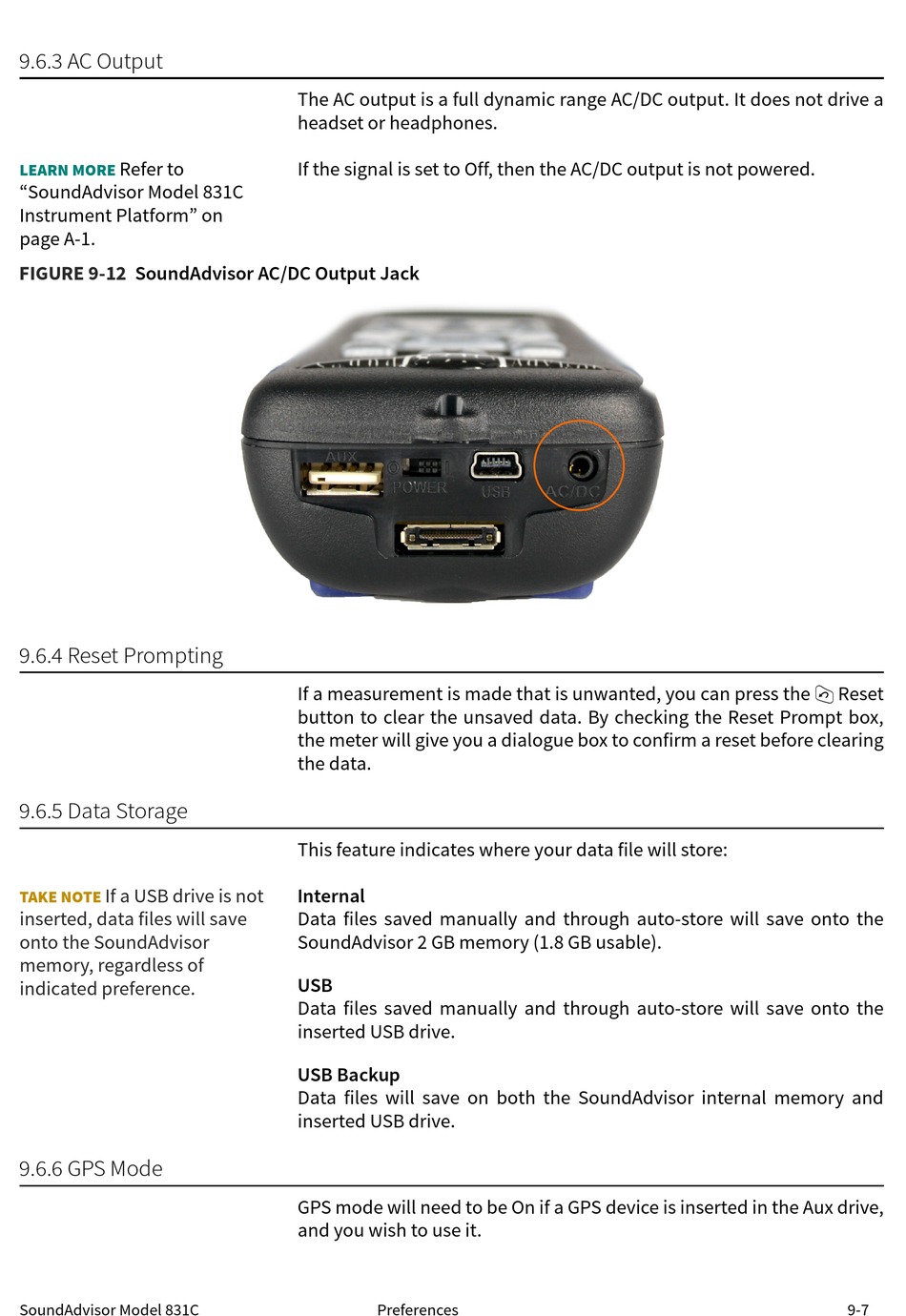

Larson Davis SoundAdvisor 831C Reference Manual page 99

9.6.3 AC Output
Refer to
LEARN MORE
"SoundAdvisor Model 831C
Instrument Platform" on
page A-1.
FIGURE 9-12 SoundAdvisor AC/DC Output Jack
9.6.4 Reset Prompting
9.6.5 Data Storage
If a USB drive is not
TAKE NOTE
inserted, data files will save
onto the SoundAdvisor
memory, regardless of
indicated preference.
9.6.6 GPS Mode
SoundAdvisor Model 831C
The AC output is a full dynamic range AC/DC output. It does not drive a
headset or headphones.
If the signal is set to Off, then the AC/DC output is not powered.
If a measurement is made that is unwanted, you can press the 1 Reset
button to clear the unsaved data. By checking the Reset Prompt box,
the meter will give you a dialogue box to confirm a reset before clearing
the data.
This feature indicates where your data file will store:
Internal
Data files saved manually and through auto-store will save onto the
SoundAdvisor 2 GB memory (1.8 GB usable).
USB
Data files saved manually and through auto-store will save onto the
inserted USB drive.
USB Backup
Data files will save on both the SoundAdvisor internal memory and
inserted USB drive.
GPS mode will need to be On if a GPS device is inserted in the Aux drive,
and you wish to use it.
Preferences 9-7
