WiFi Status
USB Memory Status
Input Overload Icon
SoundAdvisor Model 831C
symbol appears over the battery icon if the battery is currently
charging.

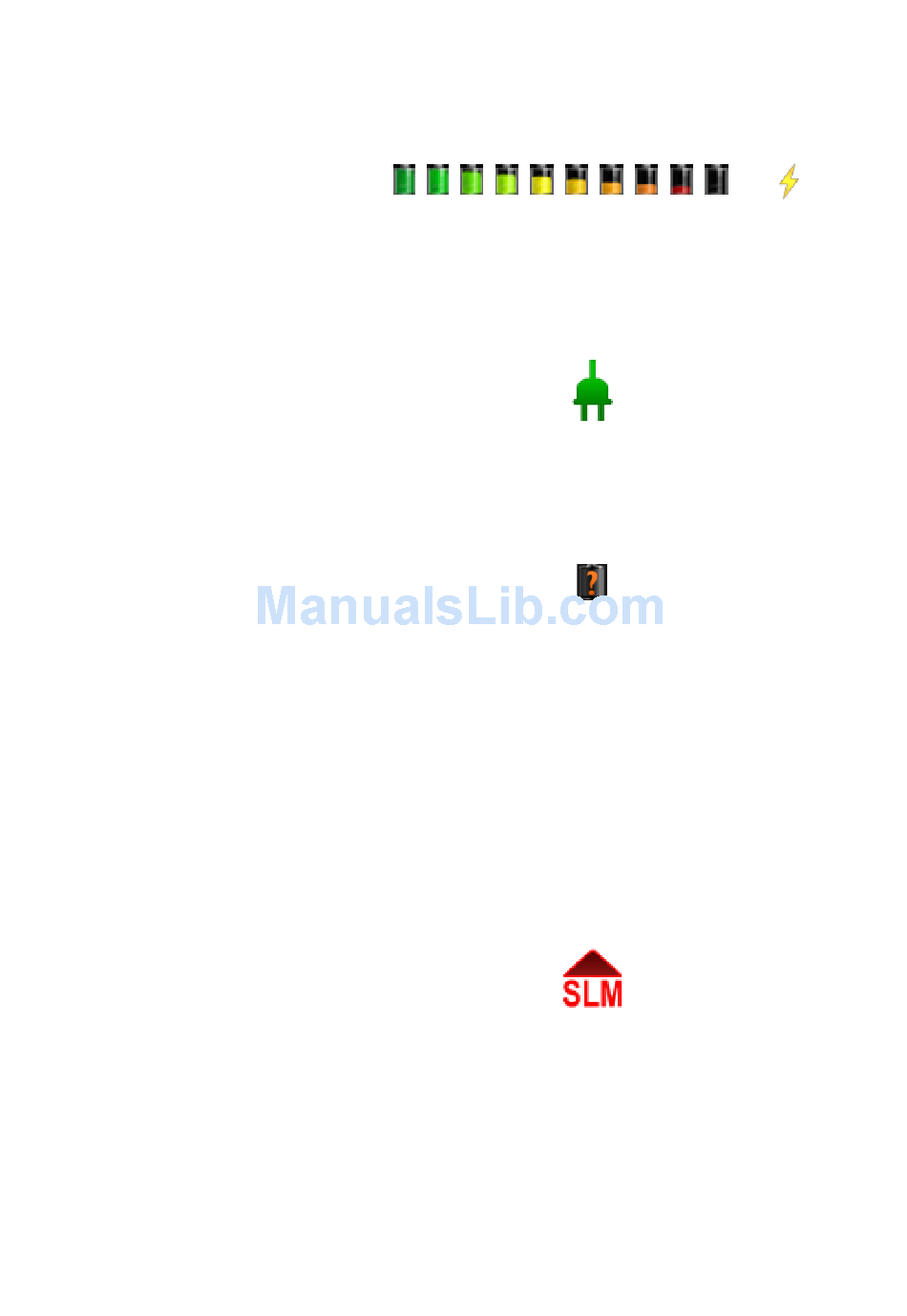

FIGURE 2-8 Battery States
External Power
The external power connection icon appears when the SoundAdvisor is
powered from an external power supply or via the USB port.
FIGURE 2-9 External Power Icon
Battery Status Pending
While the SoundAdvisor is checking the battery status, this pending
icon will appear until the battery percentage is determined.
FIGURE 2-10 Battery Status Pending Icon
See "WiFi" on page 13-3.
See "USB Drive Storage" on page 8-5.
When a signal from the preamplifier exceeds the calibrated input range
of the SoundAdvisor, the Input Overload icon will appear. While the
overload is present, the icon will flash.
If a measurement is running and an overload occurs, the icon shown
below will flash during the overload.
FIGURE 2-11 SLM Overload Icon
When the overload has been removed, the icon will still be present (not
flashing) to indicate that an overload has occurred during the
measurement. A reset will clear the icon from the display.
Displays and Icons 2-9
