3.7.1 Control using G4 LD Utility

3.7.2 Control Using Web Browser

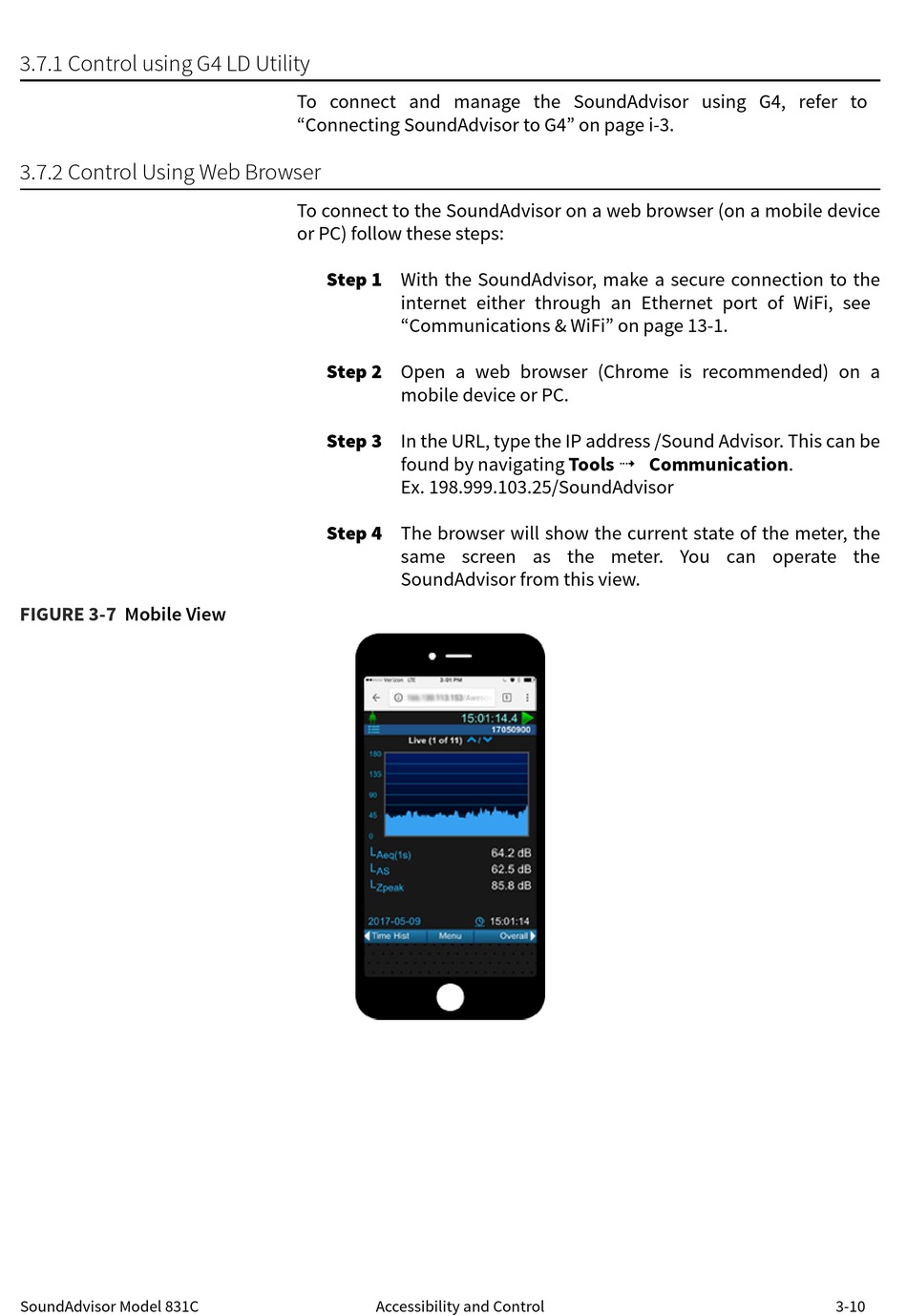

FIGURE 3-7 Mobile View
SoundAdvisor Model 831C
To connect and manage the SoundAdvisor using G4, refer to
"Connecting SoundAdvisor to G4" on page i-3.
To connect to the SoundAdvisor on a web browser (on a mobile device
or PC) follow these steps:
Step 1 With the SoundAdvisor, make a secure connection to the
internet either through an Ethernet port of WiFi, see
"Communications & WiFi" on page 13-1.
Step 2 Open a web browser (Chrome is recommended) on a
mobile device or PC.
Step 3 In the URL, type the IP address /Sound Advisor. This can be
found by navigating Tools Communication.
Ex. 198.999.103.25/SoundAdvisor
Step 4 The browser will show the current state of the meter, the
same screen as the meter. You can operate the
SoundAdvisor from this view.
Accessibility and Control 3-10
