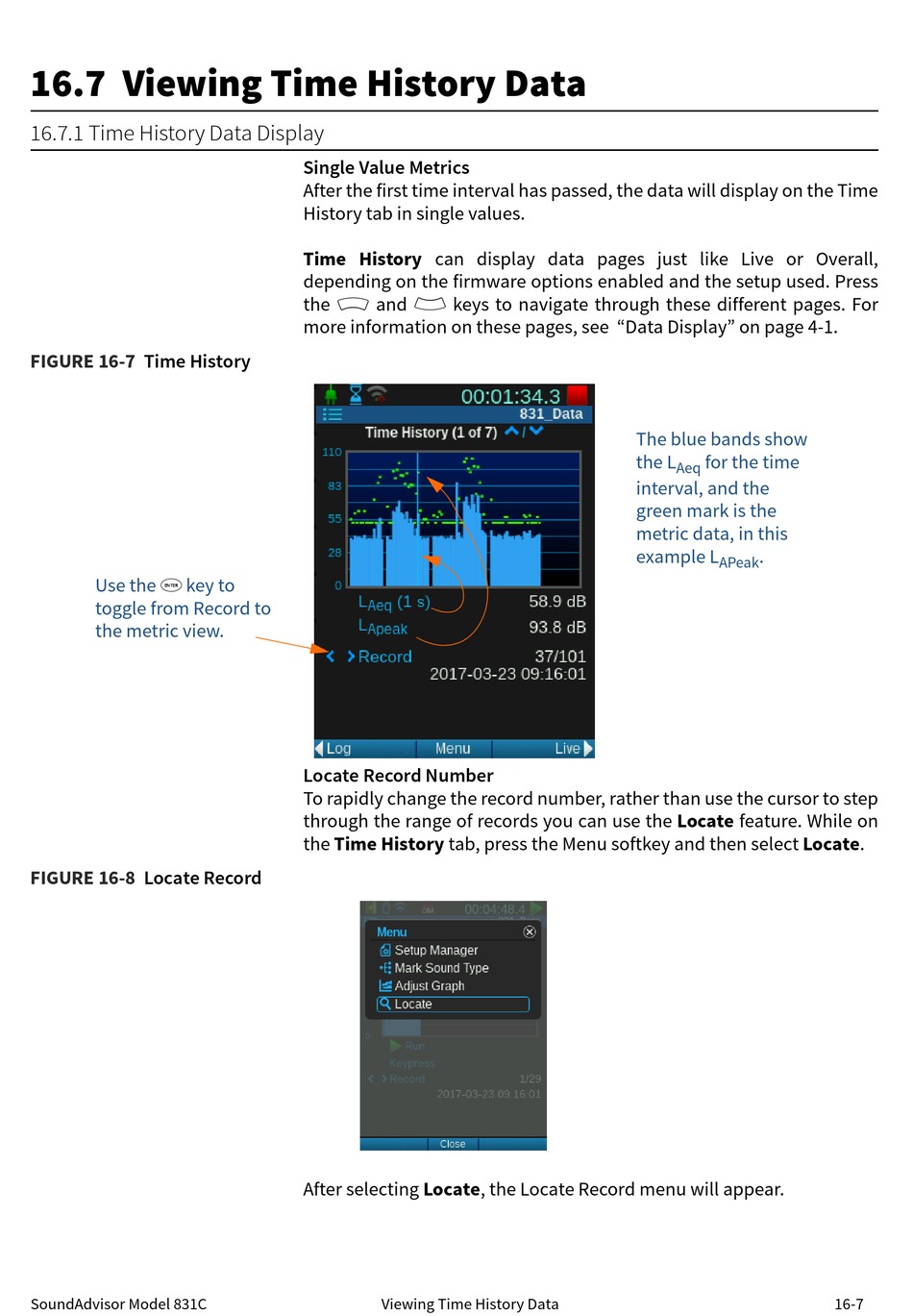

16.7 Viewing Time History Data

16.7.1 Time History Data Display

FIGURE 16-7 Time History
5
Use the key to
toggle from Record to
the metric view.
FIGURE 16-8 Locate Record
SoundAdvisor Model 831C
Single Value Metrics
After the first time interval has passed, the data will display on the Time
History tab in single values.
Time History can display data pages just like Live or Overall,
depending on the firmware options enabled and the setup used. Press
the 8 and 2 keys to navigate through these different pages. For
more information on these pages, see "Data Display" on page 4-1.
Locate Record Number
To rapidly change the record number, rather than use the cursor to step
through the range of records you can use the Locate feature. While on
the Time History tab, press the Menu softkey and then select Locate.
After selecting Locate, the Locate Record menu will appear.

Viewing Time History Data

The blue bands show
the L for the time
Aeq
interval, and the
green mark is the
metric data, in this
example L .
APeak
16-7
