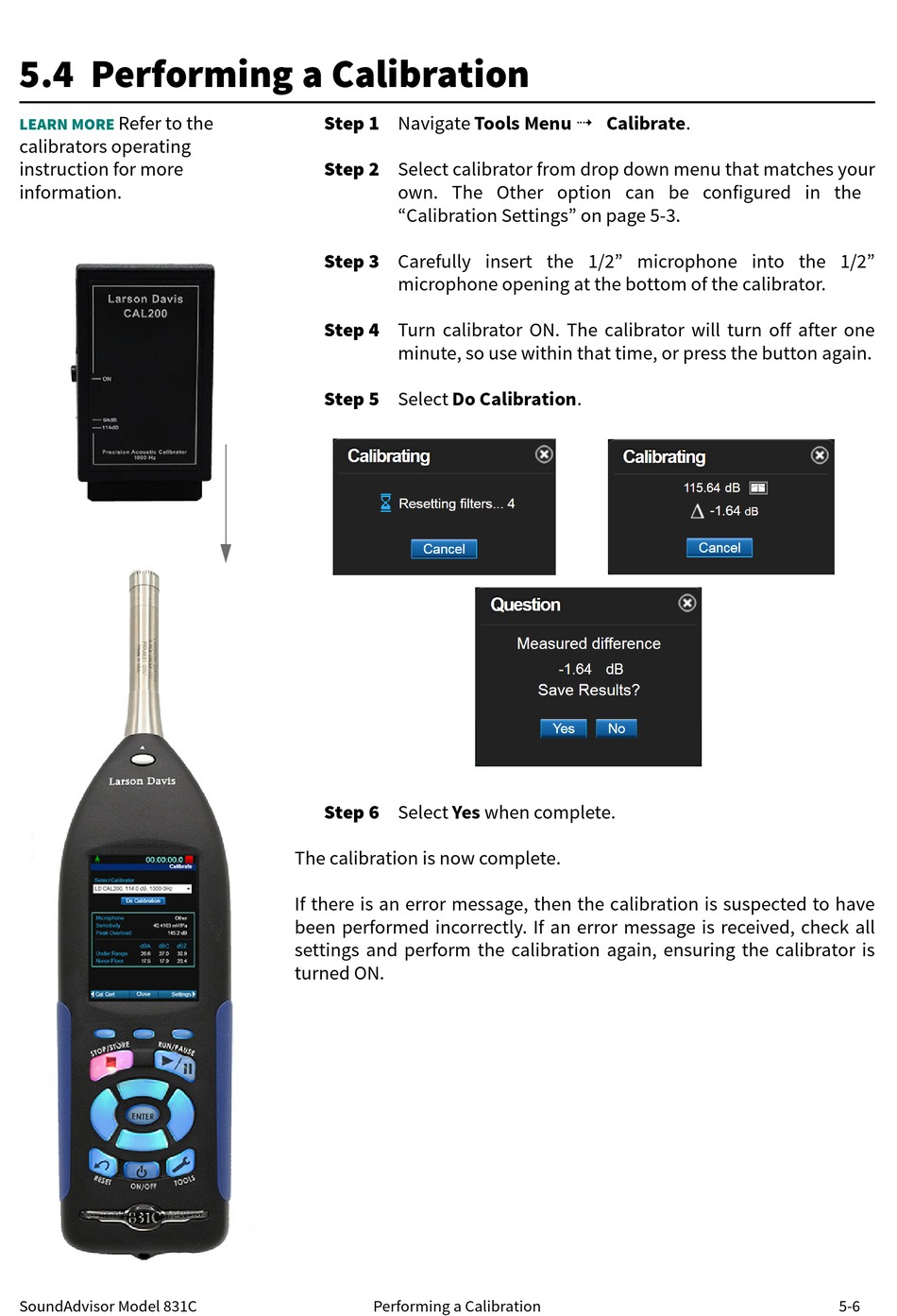

5.4 Performing a Calibration

Refer to the
LEARN MORE
calibrators operating
instruction for more
information.
SoundAdvisor Model 831C
Step 1 Navigate Tools Menu Calibrate.
Step 2 Select calibrator from drop down menu that matches your
own. The Other option can be configured in the
"Calibration Settings" on page 5-3.
Step 3 Carefully insert the 1/2" microphone into the 1/2"
microphone opening at the bottom of the calibrator.
Step 4 Turn calibrator ON. The calibrator will turn off after one
minute, so use within that time, or press the button again.
Step 5 Select Do Calibration.
Step 6 Select Yes when complete.
The calibration is now complete.
If there is an error message, then the calibration is suspected to have
been performed incorrectly. If an error message is received, check all
settings and perform the calibration again, ensuring the calibrator is
turned ON.
Performing a Calibration 5-6
