Save File To Usb Drive - Larson Davis SoundAdvisor 831C Reference Manual

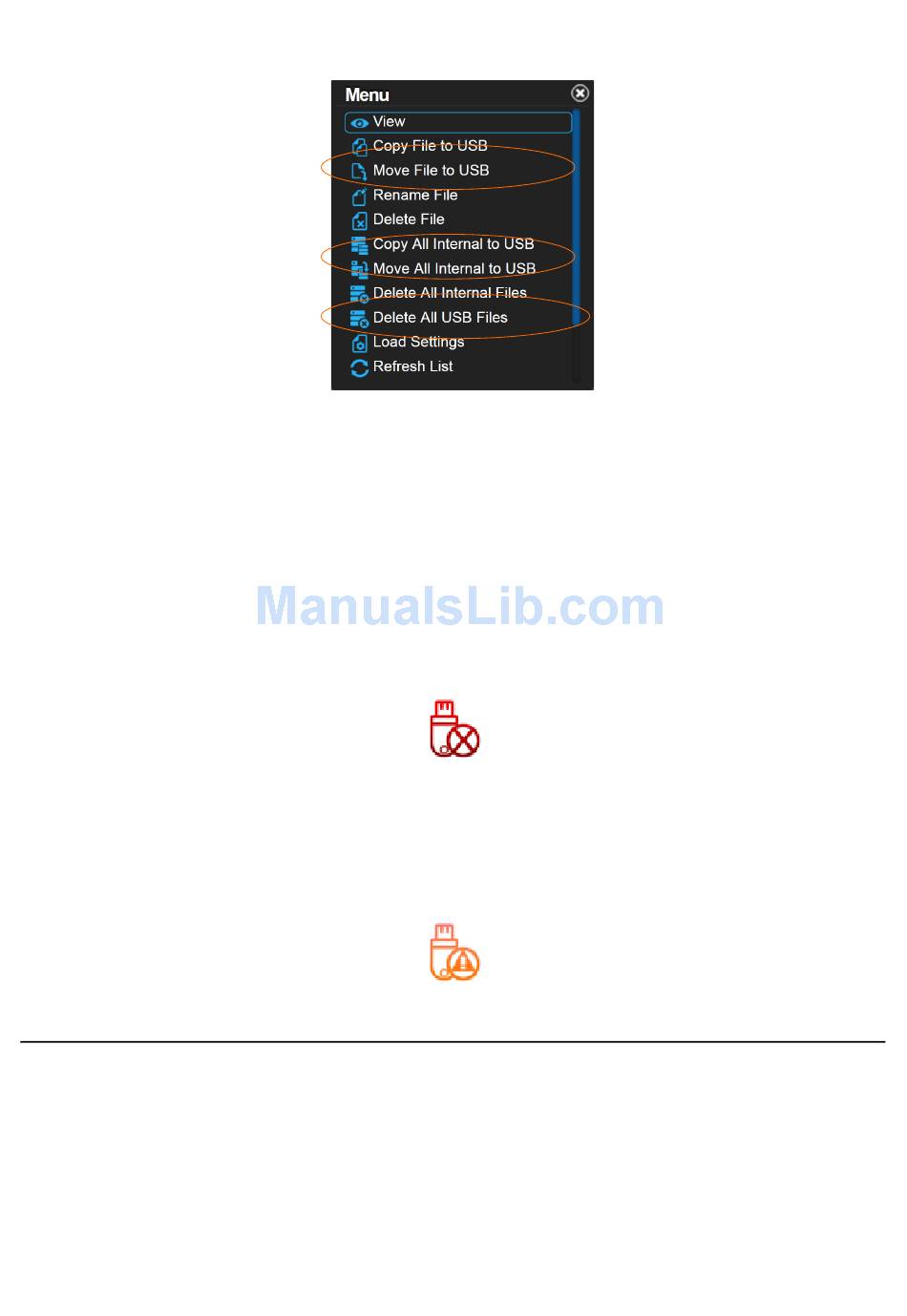

FIGURE 8-8 Data File Manager USB Menu
FIGURE 8-9 USB Not Inserted Icon
FIGURE 8-10 USB Inserted During Run

8.4.1 Save File to USB Drive

SoundAdvisor Model 831C
If your settings indicate that the measurements be stored on a USB
drive and no USB drive is inserted, this icon will appear. Files will save
to the meter until you insert a USB drive.
If the USB drive is removed during a measurement, the icon below will
appear and the measurement will end and data with that
measurement will not be visible on the meter. When the USB drive is
reinserted you will be notified that there is unsaved data and prompted
to save or delete the measurement data. You cannot continue with that
same measurement.
In the scenario where USB is set to primary, but was inserted during a
measurement run-- the files will save internally until the next reset.
This is indicated by the following icon.
Follow these steps to save a data file to a USB drive manually:
Step 1 Insert USB drive to the SoundAdvisor. Wait for the USB
icon to appear on the top left of the screen (about ten
seconds).
USB Drive Storage 8-6
