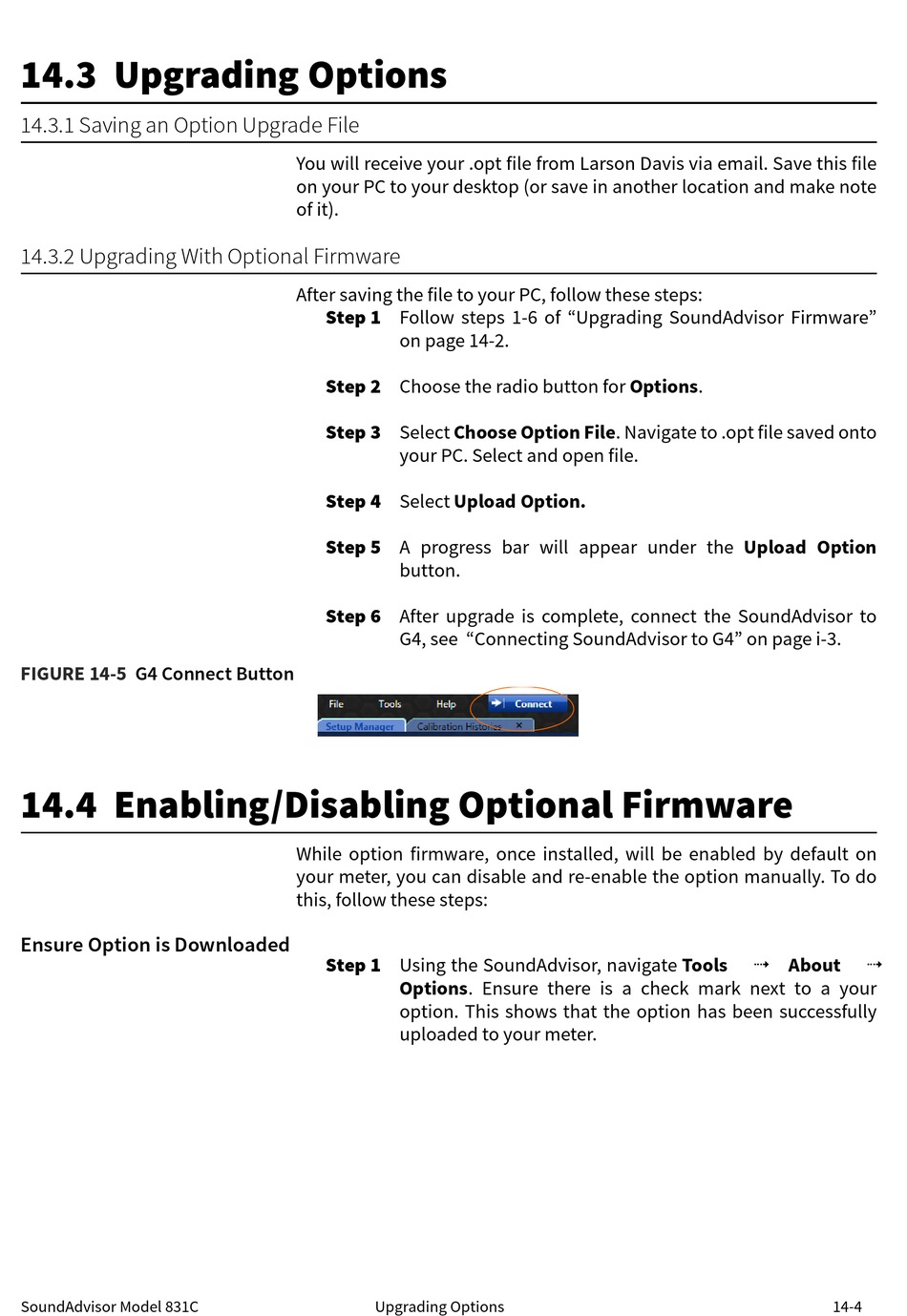

14.3 Upgrading Options

14.3.1 Saving an Option Upgrade File
14.3.2 Upgrading With Optional Firmware
FIGURE 14-5 G4 Connect Button

14.4 Enabling/Disabling Optional Firmware

Ensure Option is Downloaded
SoundAdvisor Model 831C
You will receive your .opt file from Larson Davis via email. Save this file
on your PC to your desktop (or save in another location and make note
of it).
After saving the file to your PC, follow these steps:
Step 1 Follow steps 1-6 of "Upgrading SoundAdvisor Firmware"
on page 14-2.
Step 2 Choose the radio button for Options.
Step 3 Select Choose Option File. Navigate to .opt file saved onto
your PC. Select and open file.
Step 4 Select Upload Option.
Step 5 A progress bar will appear under the Upload Option
button.
Step 6 After upgrade is complete, connect the SoundAdvisor to
G4, see "Connecting SoundAdvisor to G4" on page i-3.
While option firmware, once installed, will be enabled by default on
your meter, you can disable and re-enable the option manually. To do
this, follow these steps:
Step 1 Using the SoundAdvisor, navigate Tools  About 
Options. Ensure there is a check mark next to a your
option. This shows that the option has been successfully
uploaded to your meter.
Upgrading Options 14-4
