Larson Davis SoundAdvisor 831C Reference Manual page 104

The alert will not be
TAKE NOTE
sent until the snapshot time
and compression time has
expired after the event has
triggered. There may be
additional time depending on
your local proxy.

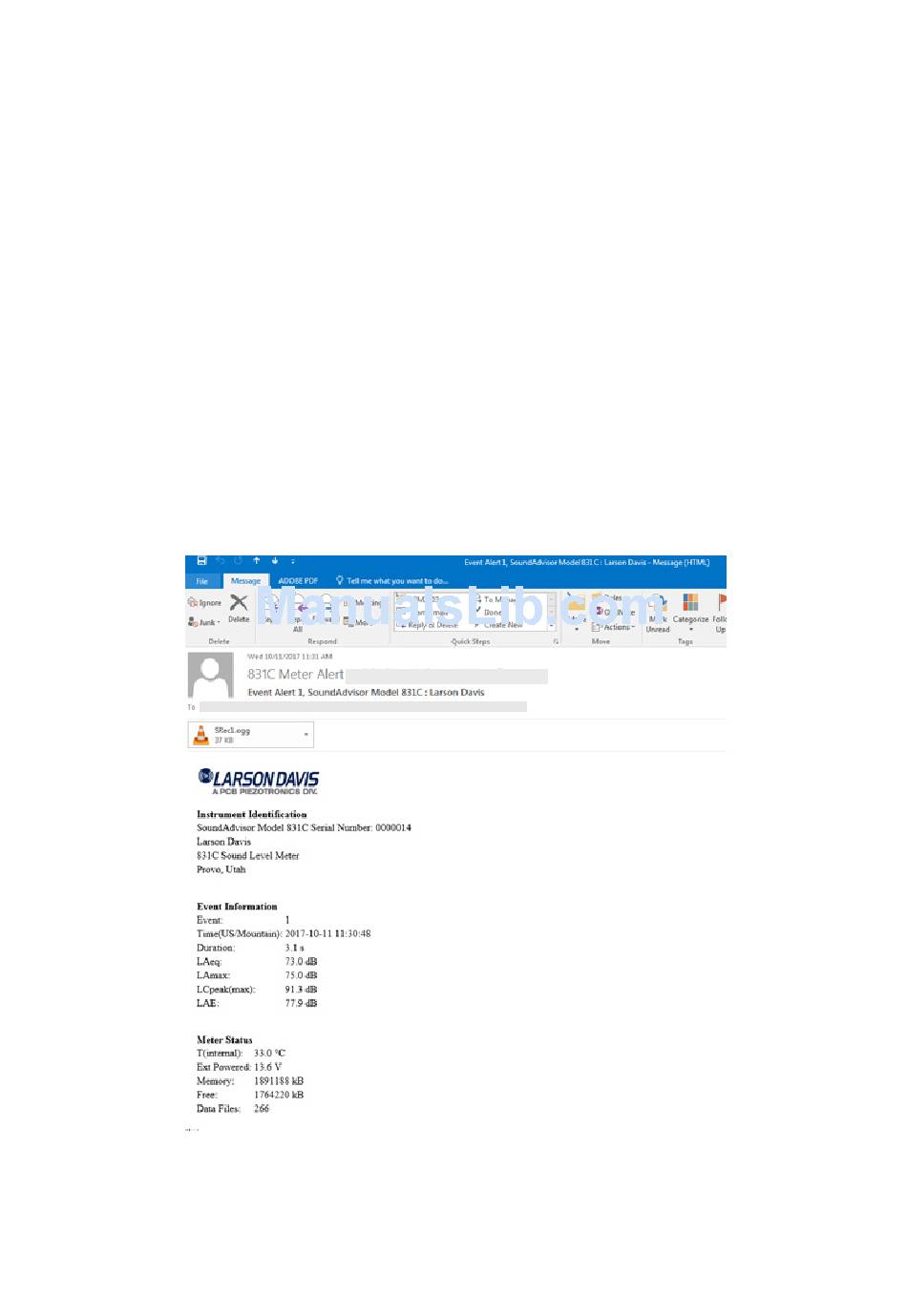

Example Email
FIGURE 9-18
SoundAdvisor Model 831C
Step 2 Indicate your SPL 2 Trigger Level. This decibel, when
exceeded during a run, will trigger an email alert. See
"Triggers" on page 6-7.
Step 3 To send a sound recording of the exceedance, see "Event
Sound Recording" on page 18-4. Select Save Event Sound.
A .wav file will be created when an event occurs.
HTML Emails will have the event sound recording attached unless:
1. Event sound recording is disabled.
2. Current sound recording is not finalized when the Event ends.
3. Event sound recording is too large to attach to the email
Step 4 Run a measurement. When the SPL 2 or Peak 3 Triggers are
exceeded, an email will be sent with a sound recording
attached to the recipients you have indicated.
Email 9-12
