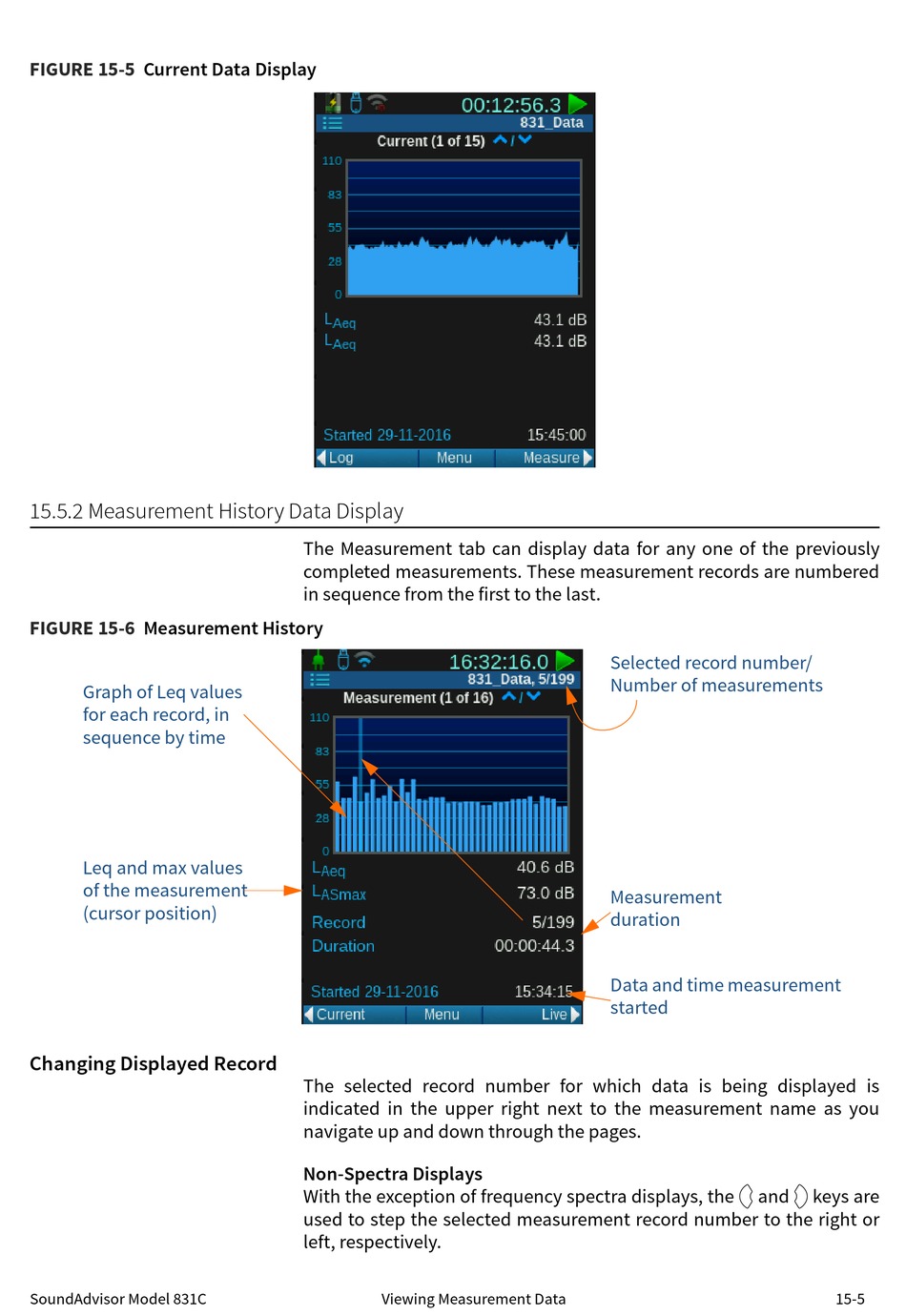

FIGURE 15-5 Current Data Display

15.5.2 Measurement History Data Display

FIGURE 15-6 Measurement History
Graph of Leq values
for each record, in
sequence by time
Leq and max values
of the measurement
(cursor position)
Changing Displayed Record
SoundAdvisor Model 831C
The Measurement tab can display data for any one of the previously
completed measurements. These measurement records are numbered
in sequence from the first to the last.
The selected record number for which data is being displayed is
indicated in the upper right next to the measurement name as you
navigate up and down through the pages.
Non-Spectra Displays
With the exception of frequency spectra displays, the 4 and 6 keys are
used to step the selected measurement record number to the right or
left, respectively.
Viewing Measurement Data
Selected record number/
Number of measurements
Measurement
duration
Data and time measurement
started
