2.5.1 Measurement Data Tabs

There are seven (7)
TAKE NOTE
tabs of measurement data.
Live, Overall, and Session Log
are default. To learn more
about additional tabs see
"Measurement Setup" on
page 6-1.
To learn more
LEARN MORE
about the Session Log, see
"Session Log Tab" on page 4-
18.

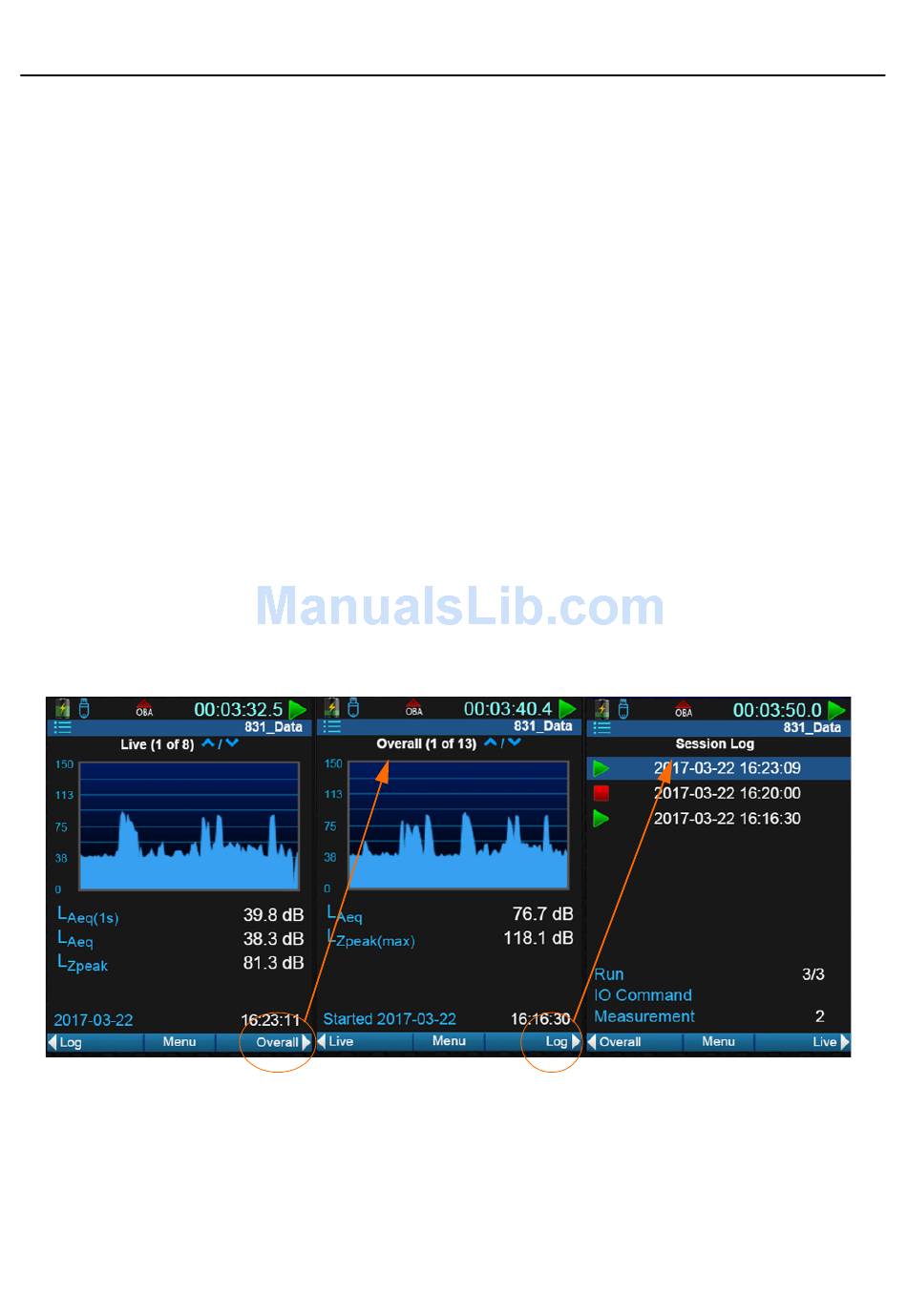

FIGURE 2-5 Measurement Data Tabs
SoundAdvisor Model 831C
Measurement data is presented on three (3) main screens called "tabs"
that can be navigated using the top left/right softkeys:
Live
• Data is continuously displayed on this tab whether there is a
measurement running or not. Data displayed on the Live tab is
not stored in the meter.
• Up to 13 pages of Live Measurement data
Overall
• Represents data measured and averaged beginning from the
time the measurement was started until the elapsed time
indicated at the top of the display. If the measurement is
stopped, the elapsed time will stop. Pressing the run key again
will continue the measurement. As long as there is no reset, the
same measurement is continued.
• Up to 20 pages of Overall Measurement data
Session Log
• A record of actions during a measurement. A time-stamped
record is made for every Run, Pause, Resume, Stop, and Sound
Recording action. The source responsible for each action is also
recorded. Resetting and storing data will clear the session
record.
Displays and Icons 2-7
