Allow Calibration When Locked - Larson Davis SoundAdvisor 831C Reference Manual

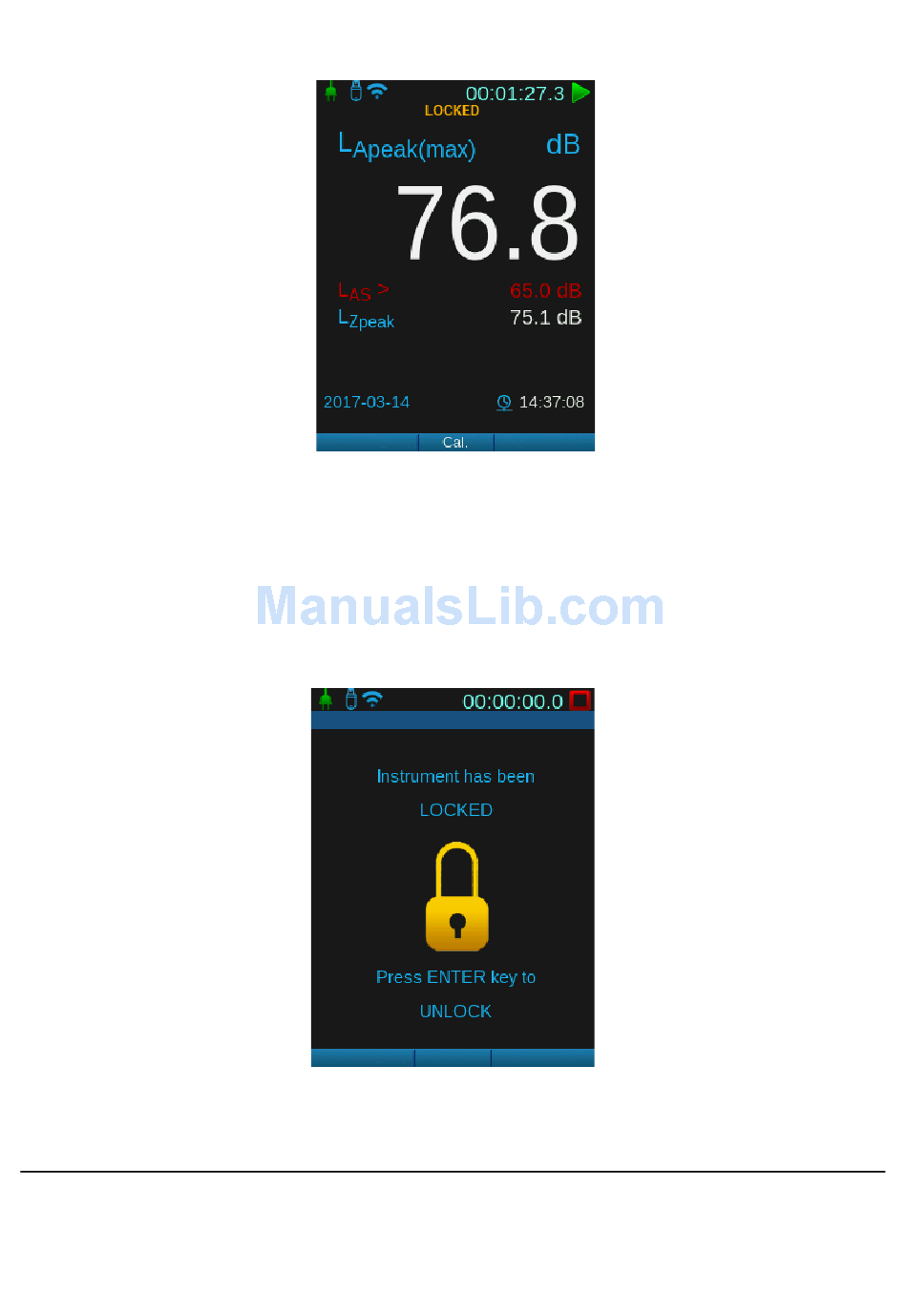

FIGURE 11-3 Locked with Auto/Manual Store
Fully Locked
FIGURE 11-4 Locked Screen

11.4 Allow Calibration When Locked

SoundAdvisor Model 831C
A fully locked screen shows only the padlock image. In this lock mode
you can run a measurement, but cannot pause, stop, or reset. You can
fully lock the screen while a measurement is running.
If you have indicated an auto-store mode in your current setup file, it
will run and store as indicated in the setup.
While in any of the three lock modes, the SoundAdvisor can be
calibrated, if the measurement is stopped and the Allow Calibration
When Locked was checked in the Lock Mode settings dialog.
Allow Calibration When Locked 11-3
