Waukesha Cherry-Burrell Brand Universal TS Series

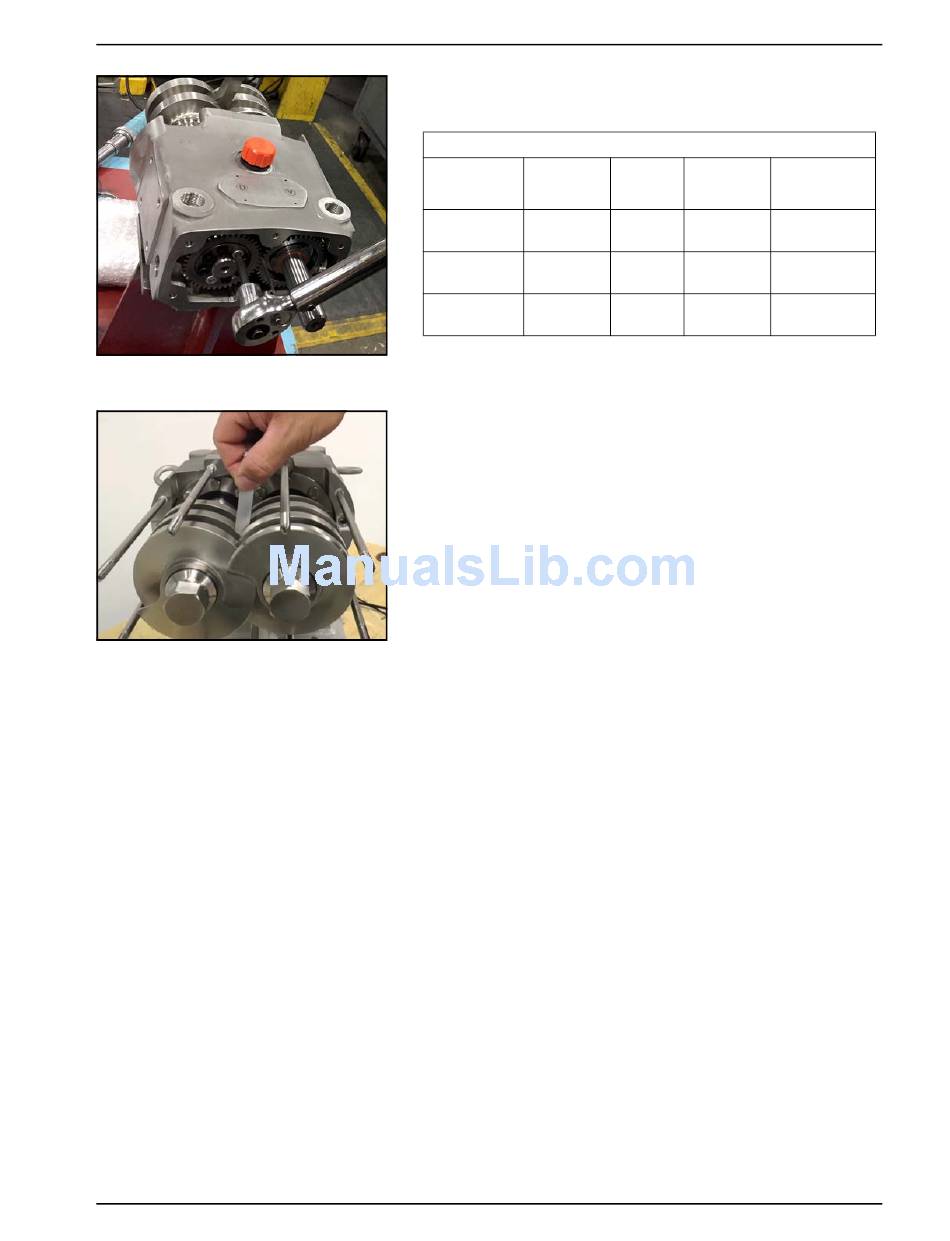

Figure 215 - Torque locking assembly
bolts
Figure 216 - Confirm the clearance
06/2017
13. In an alternating pattern, torque the locking assembly bolts to
half the specified torque, then to the full specified torque. See
below .
Table 10: Locking Assembly
Screw
Model
Hex Size
015-UTS 5 mm
030-UTS 5 mm
130-UTS
6 mm
220-UTS
14. Confirm the clearance between the screws is even on the
front and back edges of the screw flanks. Turn the drive shaft
and ensure that there is no contact at any point. If necessary,
re-time the screws.
95-03141
Maintenance
Half Full
Qty.
Torque Torque
63 in-lb 126 in-lb
8
7 N·m 14 N·m
79 in-lb 158 in-lb
6
9 N·m 18 N·m
189 in-lb 378 in-lb
6
21 N·m 43 N·m
Page 83
