SPX FLOW Universal TS Series Instruction Manual page 54

Maintenance

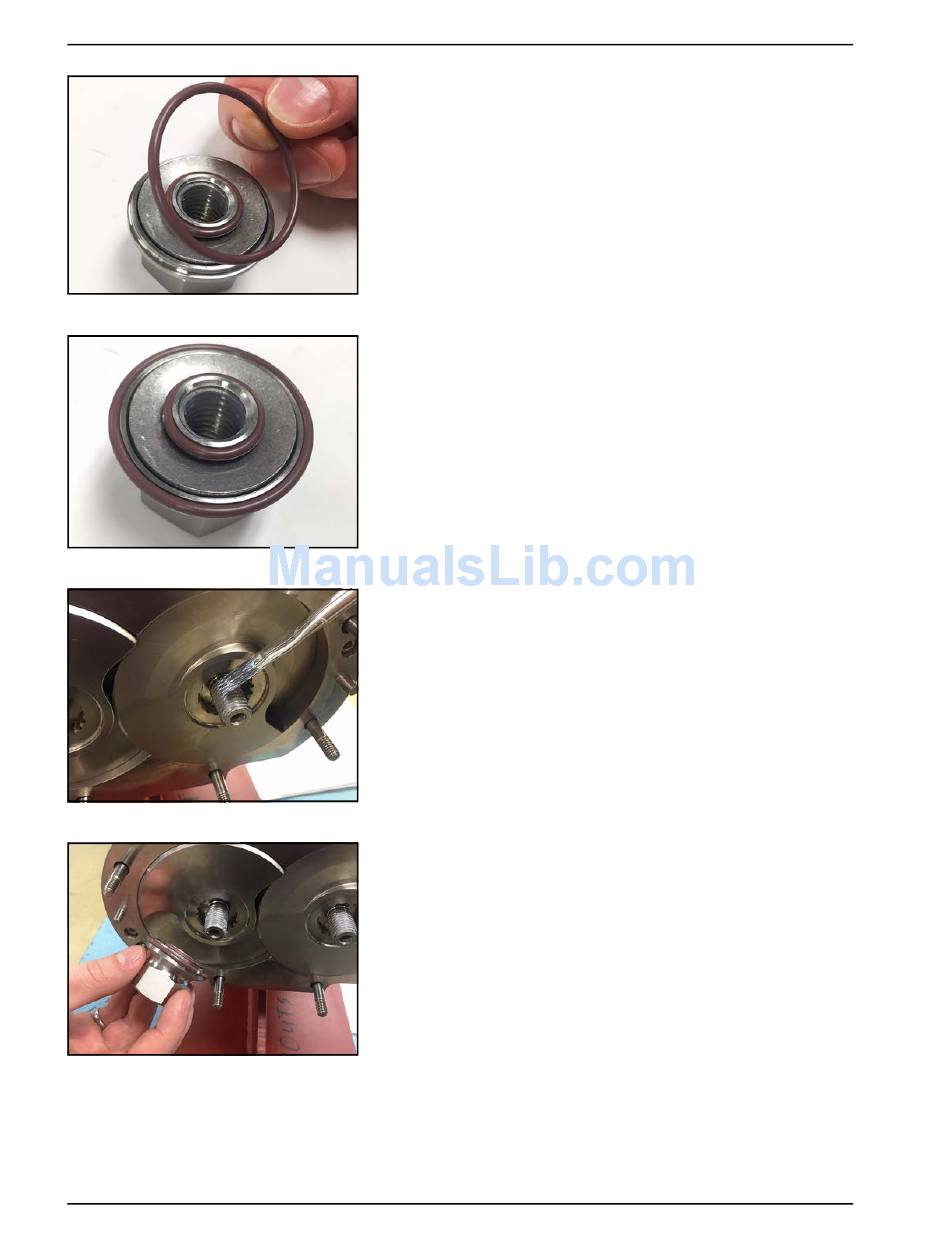

Figure 110 - Install screw nut O-ring
Figure 111 - Screw nut assembly
Figure 112 - Apply anti-seize
Figure 113 - Install screw nuts
Page 52
Waukesha Cherry-Burrell Brand Universal TS Series
4. Install the screw nut O-ring onto the outer O-ring groove on
the screw nut. Lubricate the O-ring.
5. Figure 111 shows the belleville washer and O-rings correctly
installed.
6. Apply anti-seize to the threads on the shafts.
7. Install the screw nuts on the pump shafts and hand-tighten.
95-03141 06/2017
