Maintenance

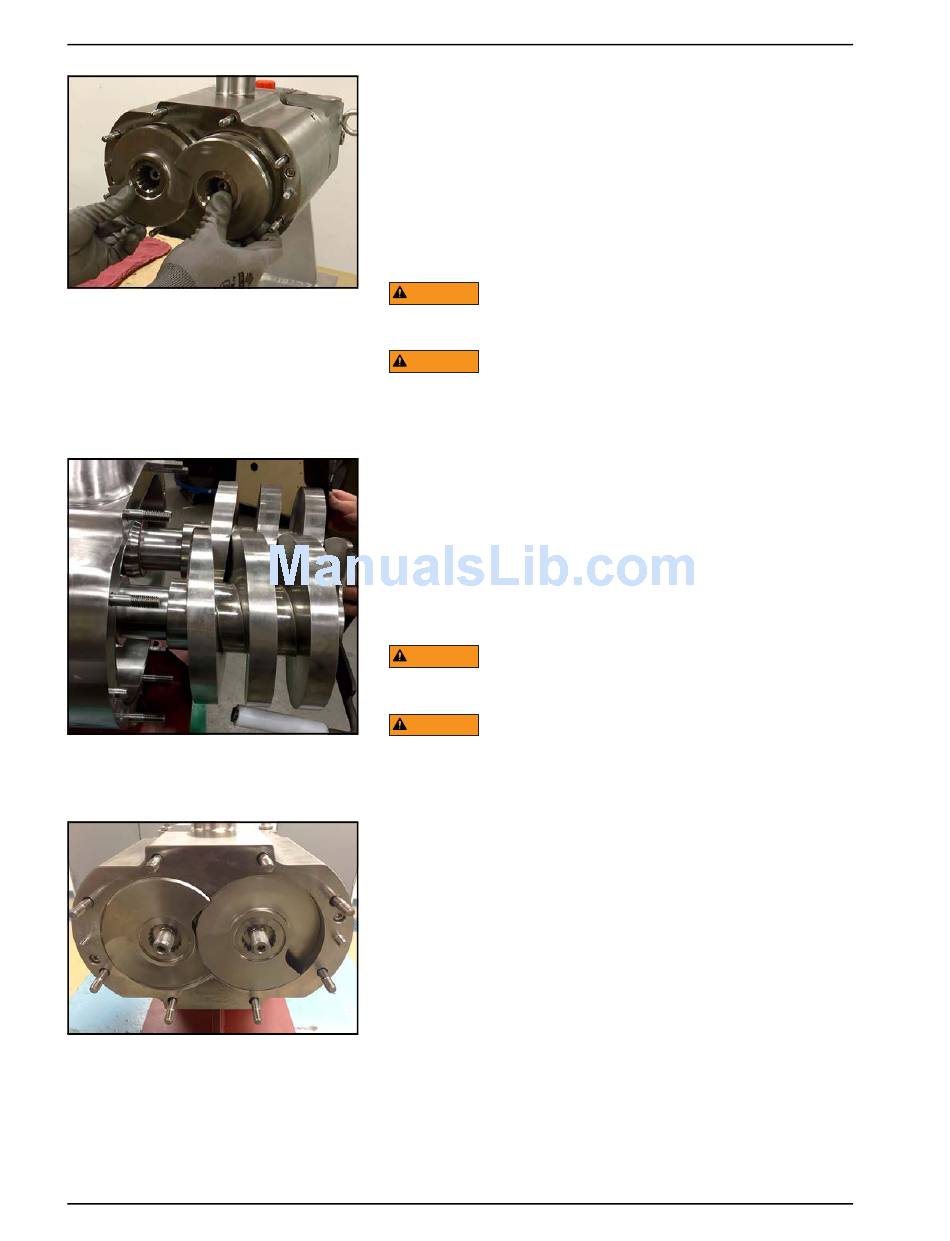

Figure 103 - Install screws
.
Figure 104 - Slide screws onto shafts
Figure 105 - Screws installed
Page 50
Waukesha Cherry-Burrell Brand Universal TS Series
4. (All sizes except 220-UTS) Making sure each screw spline
roughly matches the indexing tooth of each shaft spline (see
arrows in Figure 102 on page 49), slide the screws onto the
shafts as a pair.
5. (All sizes except 220-UTS) Once the beginning of the shaft
spline meets the screw spline, make sure that the indexing
teeth are lined up exactly. Lift up slightly on the screws, then
push on the screws so that the splines engage. Push the
screws onto the shafts completely, until they are flush with
the edge of the seal caps.
WARNING
Pinch point: Be careful not to pinch your fingers between the
screws and the pump body.
WARNING
The pump components and piping may contain sharp edges.
Handle the screw screws carefully because edges may be sharp.
Wear gloves while installing and servicing the pump to help avoid
injuries from these hazards.
6. (220-UTS) Roughly line up the indexing teeth of the screw
and shaft splines, then slide the screws onto the shafts as a
pair. The screws will go on about halfway and then stop. At
this point you can let the screws rest on the shafts.
7. (220-UTS) Lift up slightly on the screws, then slide them on,
up to the splines. Make sure the indexing teeth are lined up
exactly, then lift up slightly on the screws and push them on
completely, until the screws are flush with the edge of the
seal caps.
WARNING
Pinch point: Be careful not to pinch your fingers between the
screws and the pump body.
WARNING
The pump components and piping may contain sharp edges.
Handle the screw screws carefully because edges may be sharp.
Wear gloves while installing and servicing the pump to help avoid
injuries from these hazards.
8. Figure 105 shows the screws installed in the pump (030-UTS
pictured).
