Maintenance

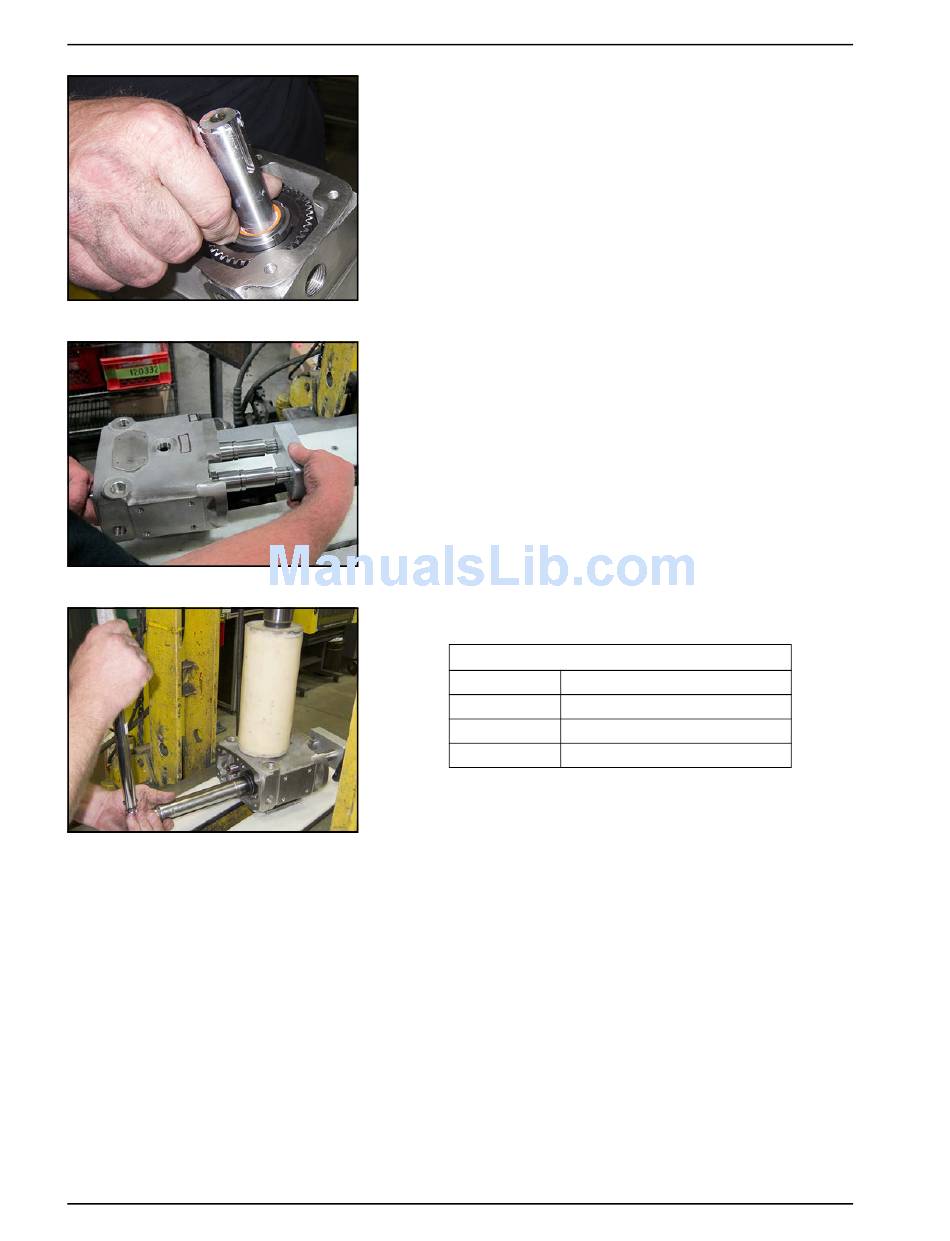

Figure 194 - Install locking nut
Figure 195 - Block shafts
Figure 196 - Torque locking nut
Page 76
Waukesha Cherry-Burrell Brand Universal TS Series
4. Screw the locking nut on the drive shaft, hand-tight.
5. Place the gear case upright, and block the shafts from turn-
ing.
6. Place the pump in a press (or use C-clamps) to keep it sta-
tionary, and torque the locking nut to the values below.
Table 9: Torque Values - Locking Nut
015-UTS
030-UTS
130-UTS
220-UTS
95-03141
15 ft-lb (20 N·m)
30 ft-lb (41 N·m)
45 ft-lb (61 N·m)
75 ft-lb (102 N·m)
06/2017
