Waukesha Cherry-Burrell Brand Universal TS Series

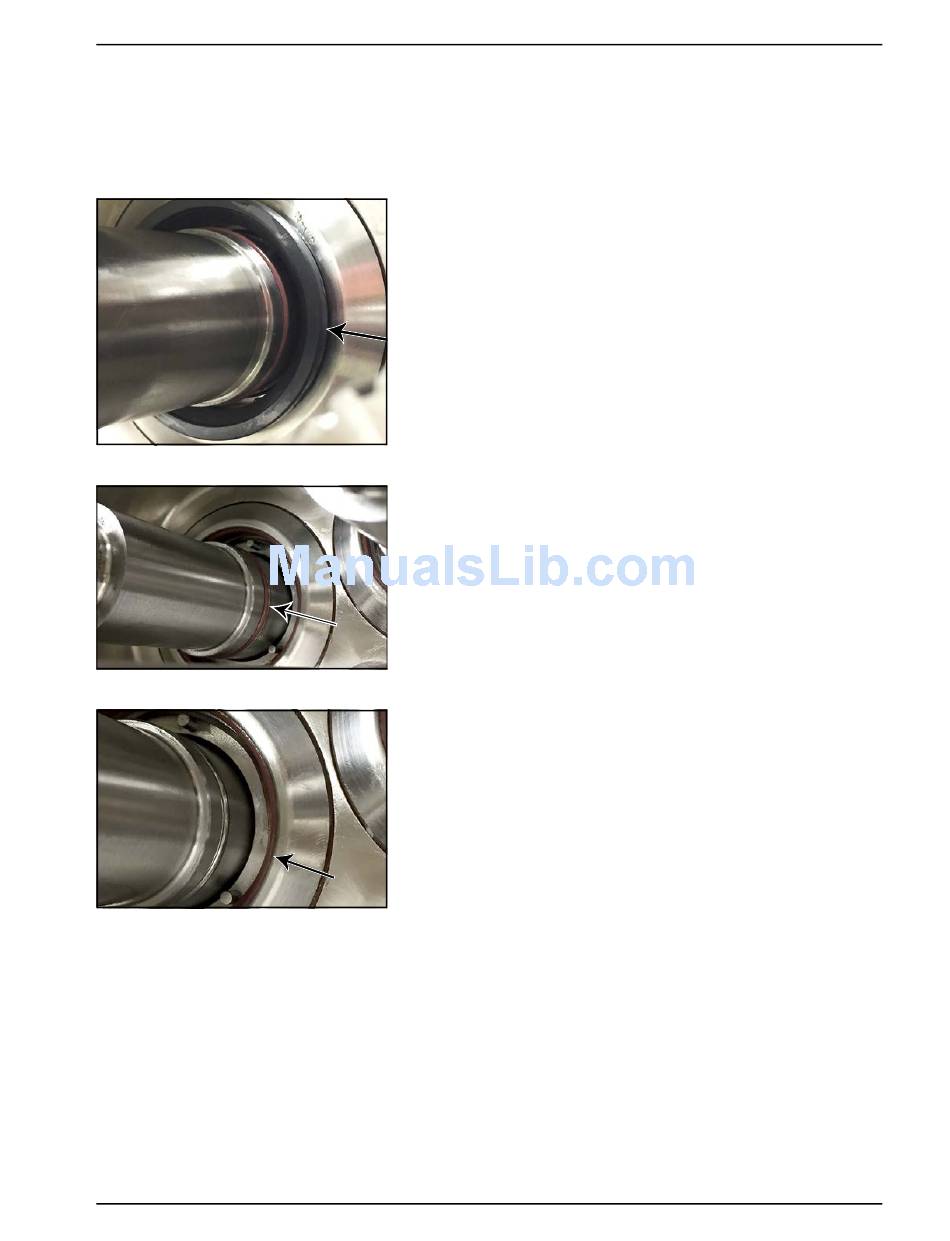

Figure 41 - Remove seal
Figure 42 - Remove shaft O-ring
Figure 43 - Remove carrier-to-seal O-ring
06/2017

Removing seal without removing body

NOTE: Steps 1-4 below are shown without removing the pump
body. These steps can also be performed after the pump body is
removed. To remove the seal after removing the pump body, skip
to "Remove pump body" on page 34.
1. Remove the seal from each shaft.
2. Remove the shaft O-ring from the O-ring groove on each
shaft, as shown in Figure 42.
3. Remove the carrier-to-seal O-ring from each shaft. If neces-
sary, use the O-ring removal tool (part number on page 114)
or an ice pick to aid in removing this O-ring.
95-03141
Maintenance
Page 33
