Remove Seal Cap And Seal - SPX FLOW Universal TS Series Instruction Manual

Maintenance

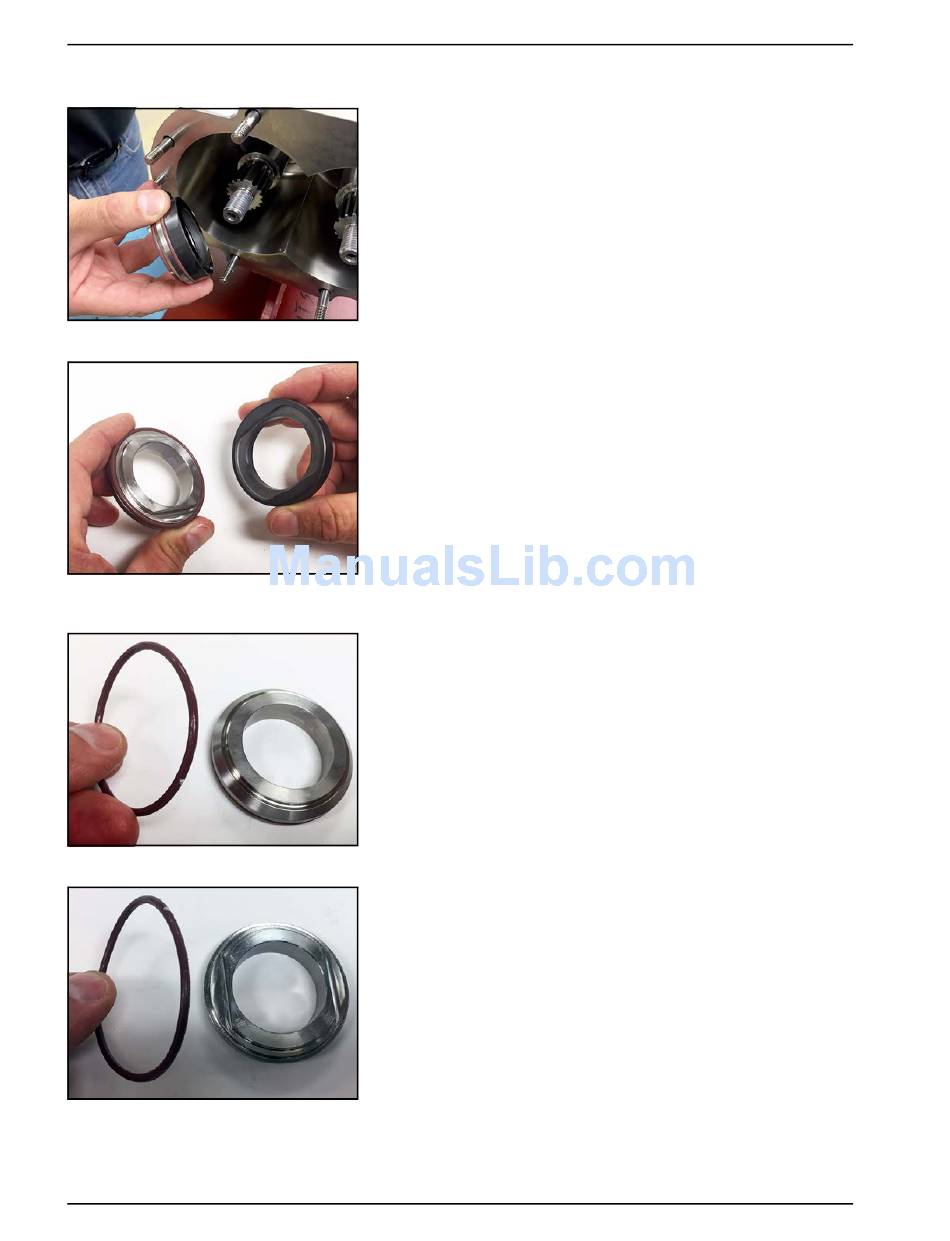

Figure 37 - Remove seal cap assembly
Figure 38 - Remove seal seat from seal
cap
Figure 39 - Remove cap-to-screw O-ring
Figure 40 - Remove cap-to-seat O-ring
Page 32
Waukesha Cherry-Burrell Brand Universal TS Series

Remove seal cap and seal

1. Remove the seal cap assembly (seal cap and seal seat) from
each shaft.
2. Remove the seal seat from the seal cap and place it on a
clean, protected surface.
3. Remove the cap-to-screw O-ring from the smaller side (prod-
uct side) of the seal cap.
4. Remove the cap-to-seat O-ring from the larger side (flush
side) of the seal cap.
