Screw Nut Assembly - SPX FLOW Universal TS Series Instruction Manual

Waukesha Cherry-Burrell Brand Universal TS Series

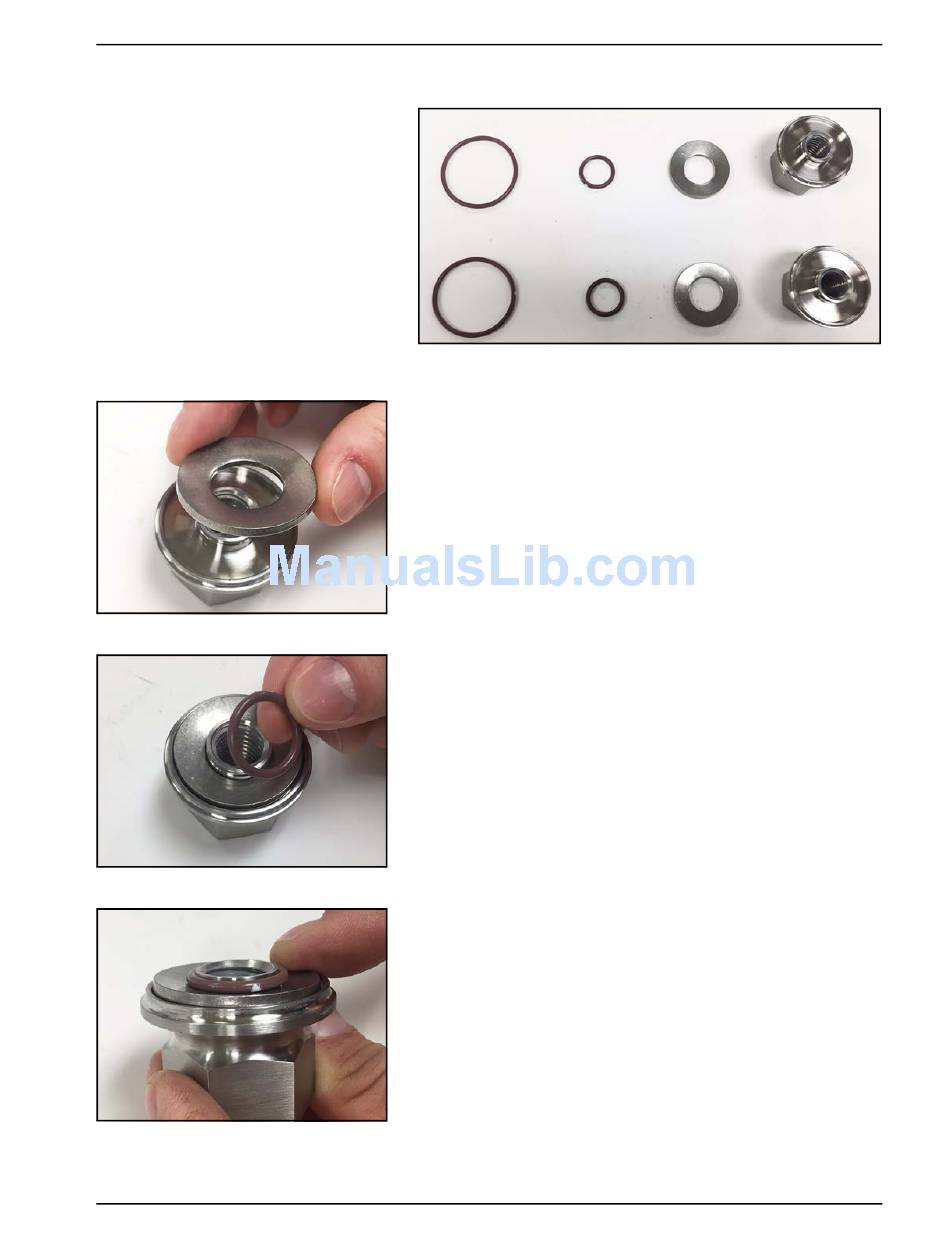

Figure 107 - Install belleville washer
Figure 108 - Install washer retainer O-ring
Figure 109 - Belleville washer installed
06/2017

Screw nut assembly

Figure 106 - Screw Nut Components
1. Assemble the screw nuts: Place the belleville washer onto
the screw nut. The belleville washer must be installed so the
outer edge of the washer raises up over the edge of the
screw nut.
2. Install the washer retainer O-ring onto the inner O-ring
groove on the screw nut.
3. Figure 109 shows the washer retainer O-ring and belleville
washer correctly installed. If the edge of the washer is lower
than the edge of the nut, flip the washer over.
95-03141
Maintenance
Page 51
