Assemble and install gear case cover

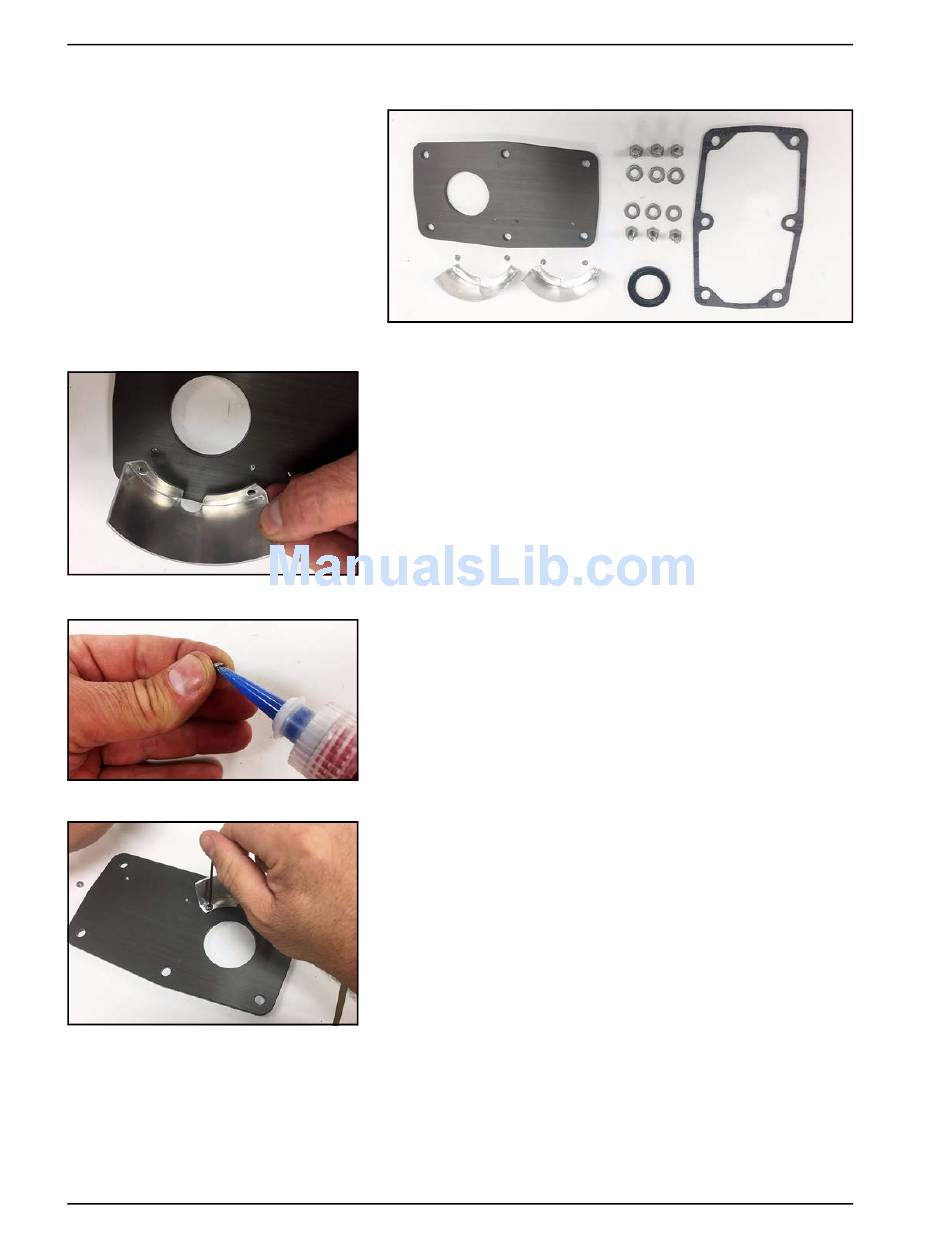

Figure 217 - Gear case cover components
1. Place the gear case cover on a protected surface, inner face,
facing up, as shown in Figure 217.
2. Align the holes in the left hand gear shroud (see note below)
with the holes in the gear case cover as shown in Figure 218.
NOTE: On the 015-UTS, there is a right and a left gear
shroud. On all other sizes, the two shrouds are identical.
3. Apply Loctite
insert them in the holes in the shroud.
®
4. With an Allen wrench, tighten the shroud screws till snug.
95-03141
®
242 or equivalent to the shroud screws, and
06/2017
