SPX FLOW Universal TS Series Instruction Manual page 43

Waukesha Cherry-Burrell Brand Universal TS Series

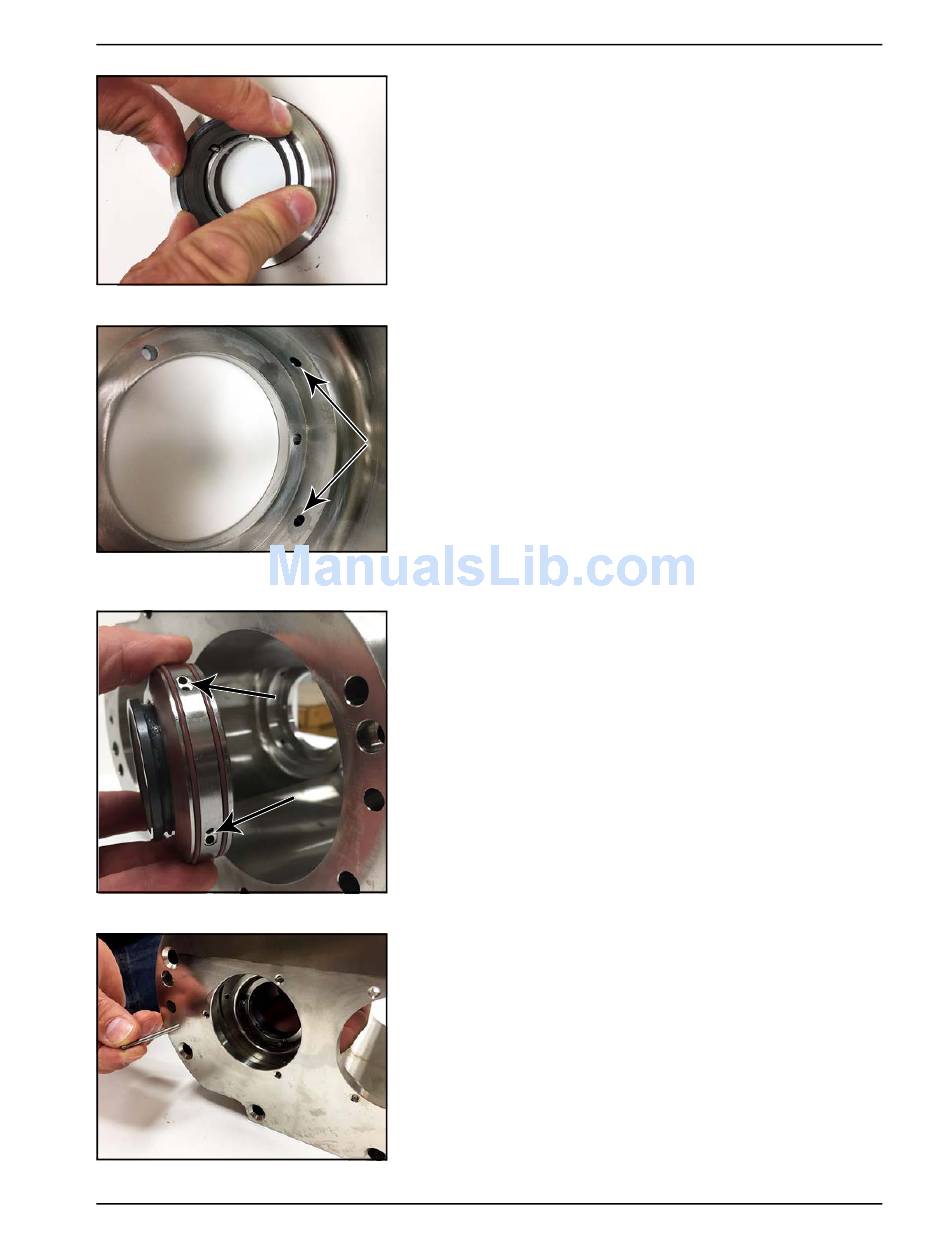

Figure 68 - Install seal
Figure 69 - View of flush holes on inside
of pump body
Figure 70 - Install seal carrier in body
Figure 71 - Use drift pin to align holes
06/2017
8. Make sure the slots in the seal align with the pins in the seal
carrier, then press down evenly on all sides of the seal to
install it in the seal carrier.
9. Repeat steps 1 to 8 for the seal carrier for the other shaft.
10. The flush holes in the body are located toward the outside of
the body (not toward the middle).
11. Install the seal carrier into the body, making sure to line up
the flush holes in the seal carrier with the flush holes in the
body.
12. On the back side of the body, use an appropriately-sized drift
pin to align the holes in the seal carrier with the holes in the
body.
95-03141
Maintenance
Page 41
