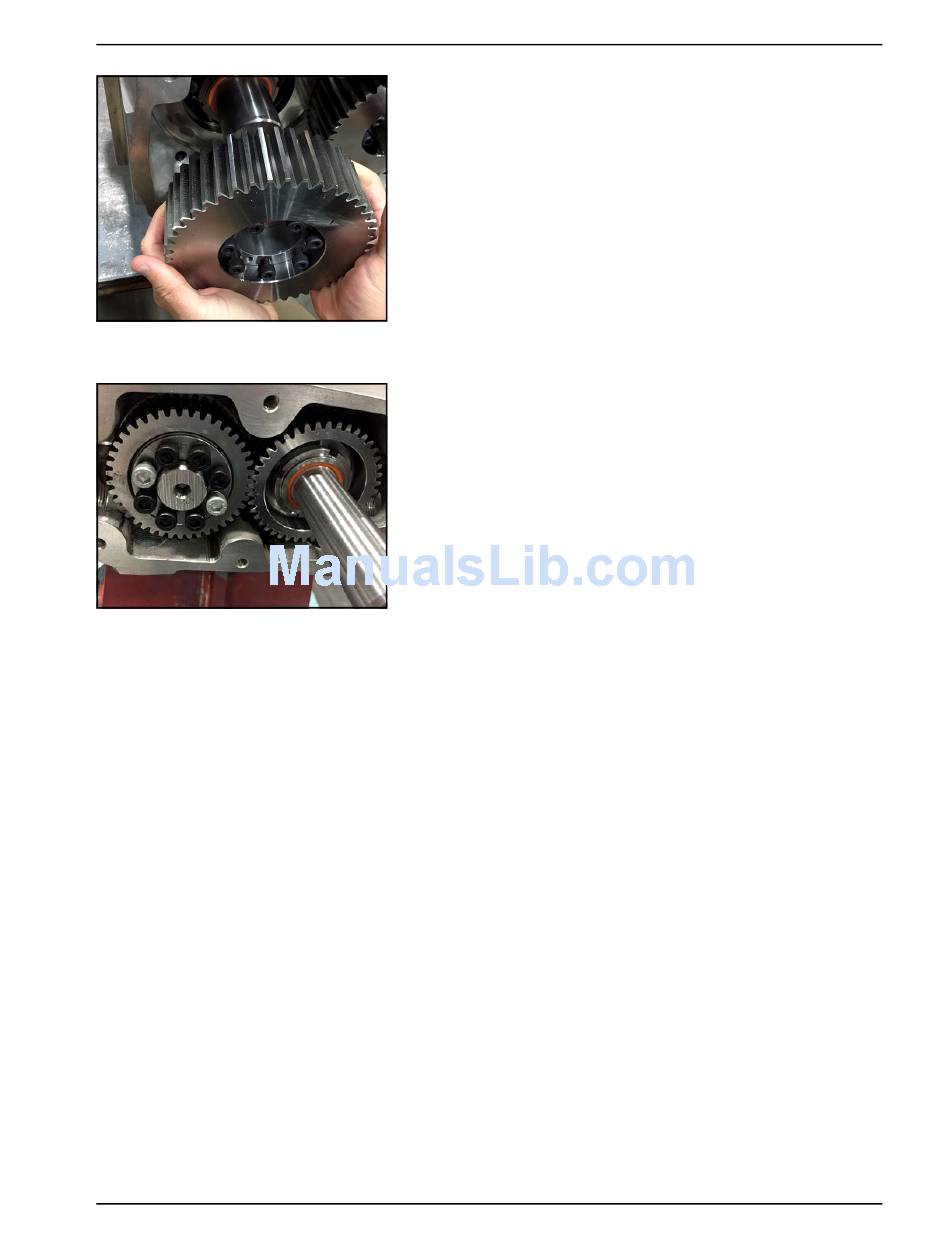

Figure 202 - Install gears onto pump
shafts
Figure 203 - Align loose gear with drive
gear
06/2017
4. Install the gear onto the pump shaft as shown in Figure 202.
Push the gears back until the locking assembly is resting
against the locking nut.
NOTE: On the 015-UTS, push the gears back until the back
of the gear is resting against the locking nut.
5. Very lightly align the loose gear with the drive gear.
95-03141
Maintenance
Page 79
