Waukesha Cherry-Burrell Brand Universal TS Series
\

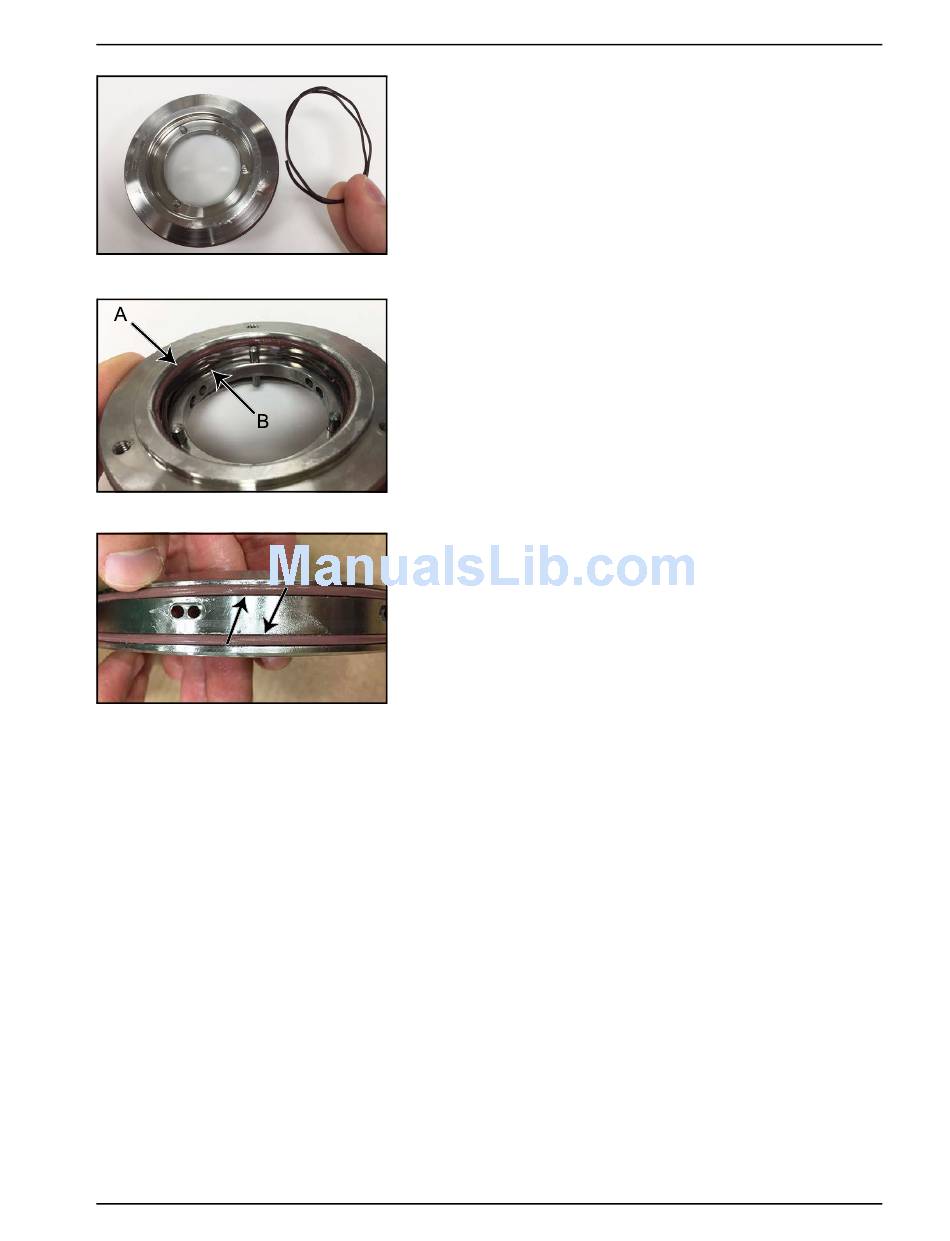

Figure 54 - Seal wave spring
Figure 55 - O-ring and wave spring
\ \
Figure 56 - Carrier-to-body O-rings
06/2017
3. Remove the seal wave spring from the product side of the
seal carrier.
For a single seal, skip to step 5.
For a double seal, continue.
NOTE: This step can also be performed with the body
installed. See "Removing seal without removing body" on
page 33.
4. For a double seal, remove the carrier-to-seal O-ring (A) and
the seal wave spring (B) from the flush side of the seal car-
rier.
5. Remove the carrier-to-body O-rings from the two grooves on
the outside of the seal carrier.
95-03141
Maintenance
Page 37
