Waukesha Cherry-Burrell Brand Universal TS Series

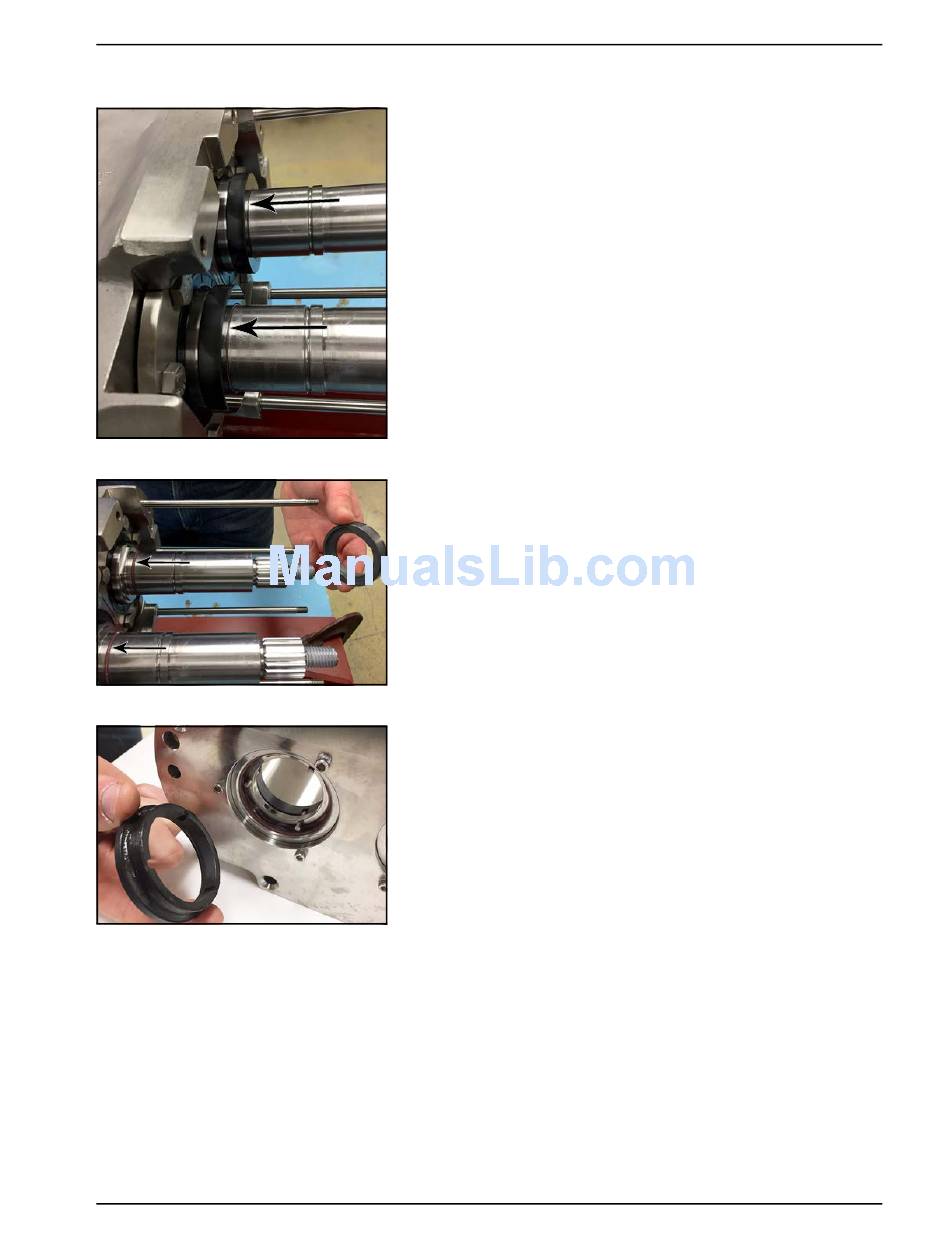

Figure 47 - Remove seal seats
Figure 48 - Remove shaft O-rings
Figure 49 - Remove seal
06/2017

Double seal - remove seals

1. (Double seal only) Remove the seal seats from the shafts by
hand. Pull the seal seats toward the end of the shafts. The
arrows in Figure 47 show the seal seat location.
2. (Double seal only) After removing the seal seat, remove the
shaft O-rings from the O-ring groove closest to the gear case.
3. (Double seal only) Remove the seal from the seal carrier, and
place it on a clean, protected surface.
95-03141
Maintenance
Page 35
