Maintenance

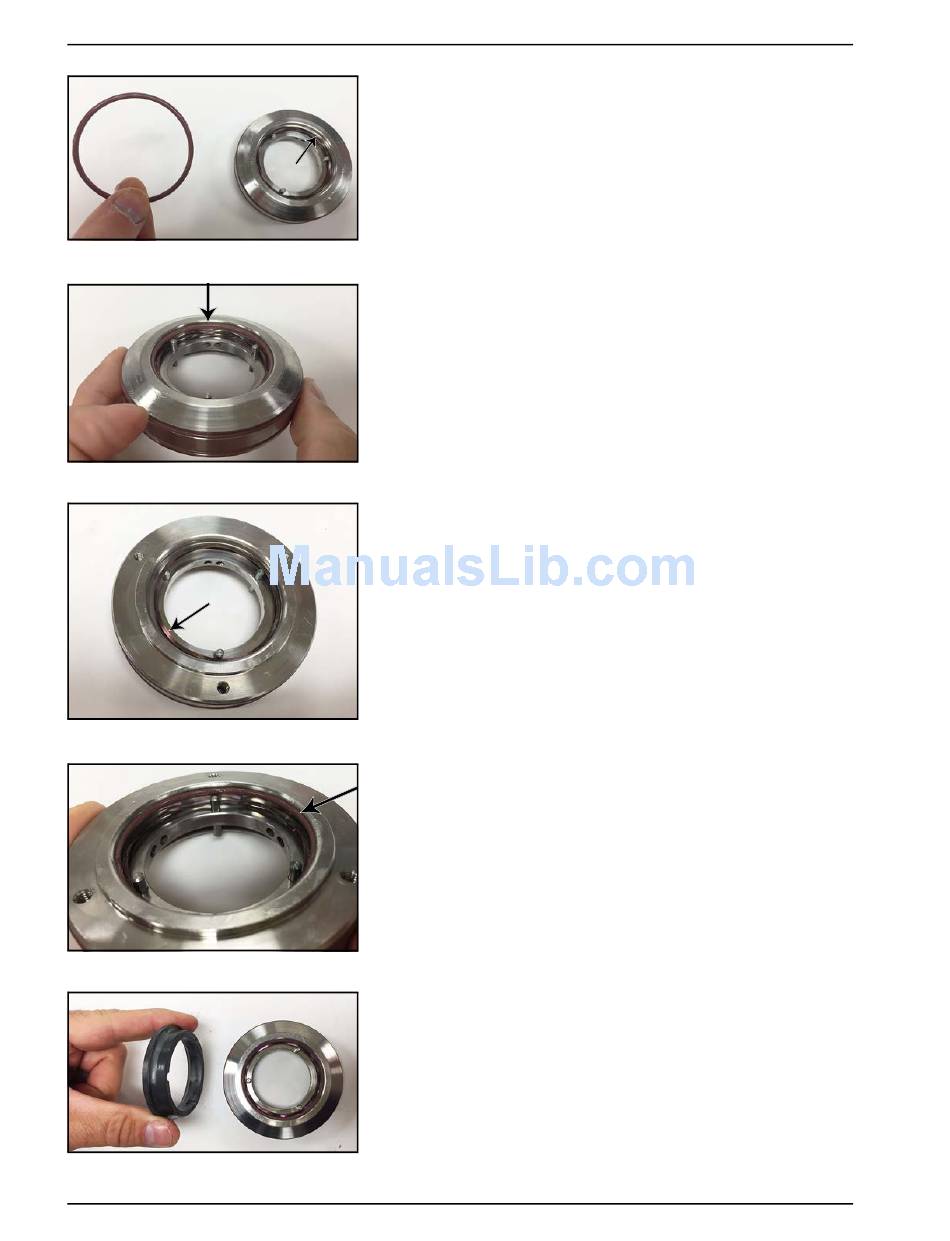

Figure 63 - Carrier-to-seal O-ring
Figure 64 - Carrier-to-seal O-ring installed
Figure 65 - Seal wave spring installed
Figure 66 - Carrier-to-seal O-ring installed
Figure 67 - Lubricate and install seal
Page 40
Waukesha Cherry-Burrell Brand Universal TS Series
3. Lubricate the carrier-to-seal O-ring and install it in the groove
on the inside of the of the seal carrier.
This O-ring groove is located on the product side of the seal
carrier.
NOTE: The product side of the seal carrier has an angled
surface and has no mounting holes.
4. Figure 64 shows the carrier-to-seal O-ring installed in the
product side of the seal carrier.
For a single seal, skip to step 7.
For a double-seal, continue.
5. For a double-seal, flip the seal carrier over and install the
second seal wave spring on the flush side of the seal carrier.
NOTE: On the 015-UTS and 220-UTS, the wave spring is a
single layer. Make sure that the gap in the wave spring is
positioned between the pins. See Figure 62 on page 39.
6. (Double seal only) Lubricate and install the second carrier-to-
seal O-ring in the flush side of the seal carrier.
7. Lubricate the O.D. of the seal (see Figure 75 on page 42) and
place it in the product side of the seal carrier. Align the slots
in the seal with the pins in the seal carrier.
