Waukesha Cherry-Burrell Brand Universal TS Series
Figure 91 - Install cap-to-seat O-ring
Figure 92 - Cap-to-seat O-ring installed
Figure 93 - Install cap-to-screw O-ring
06/2017

Seal cap assembly

Applies to both single and double seals.

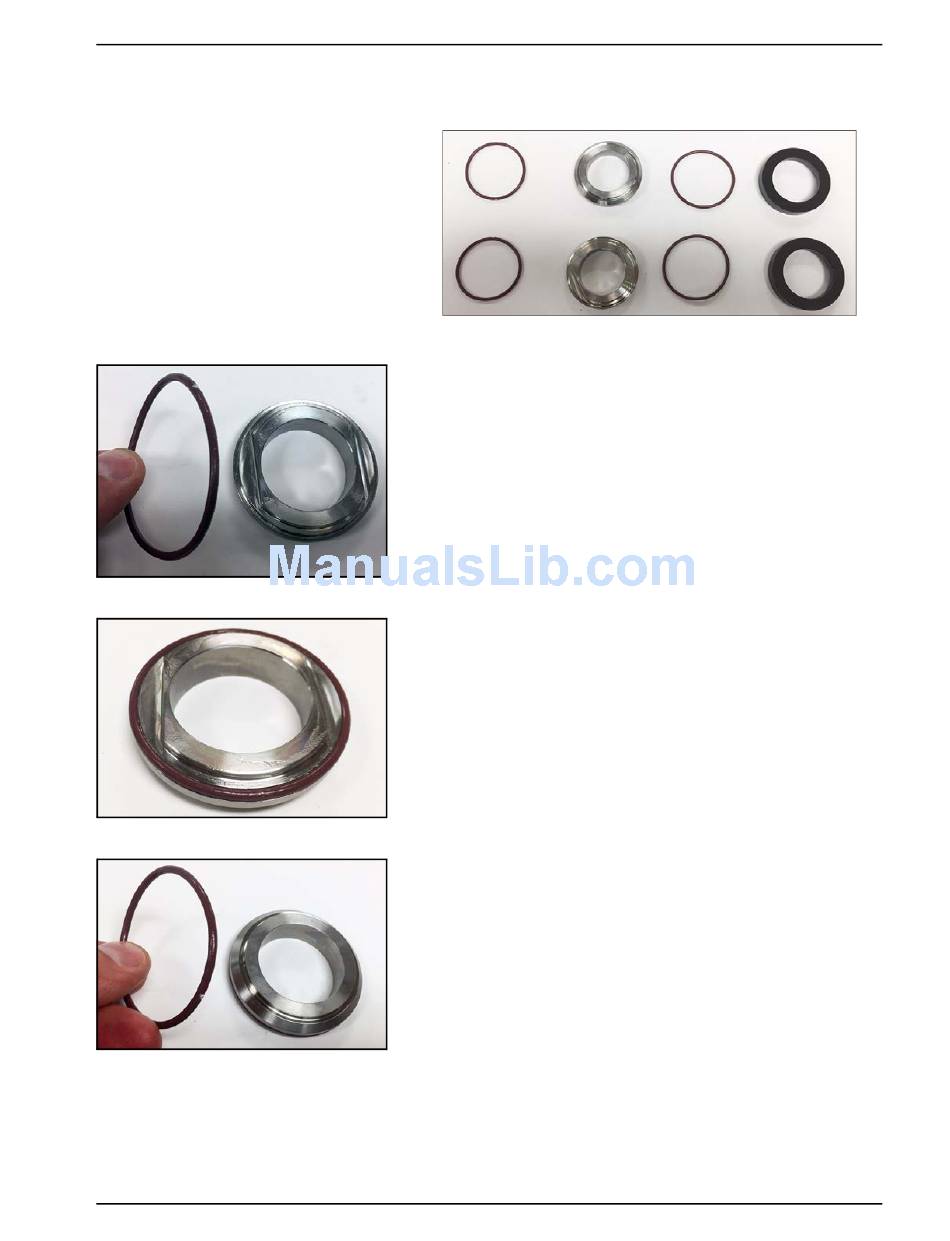

Figure 90 - Seal Cap Assembly Components
1. Place the seal cap on a protected surface, making sure the
side with the milled flats is facing up. Lubricate the cap-to-
seat O-ring and install it on the seal cap. Repeat for the sec-
ond seal cap.
2. Figure 92 shows the cap-to-seat O-ring installed on the seal
cap.
3. Lubricate and install the cap-to-screw O-ring on the opposite
side of the seal cap (the side without the milled flats). Repeat
for the second seal cap.
95-03141
Maintenance
Page 47
