Maintenance

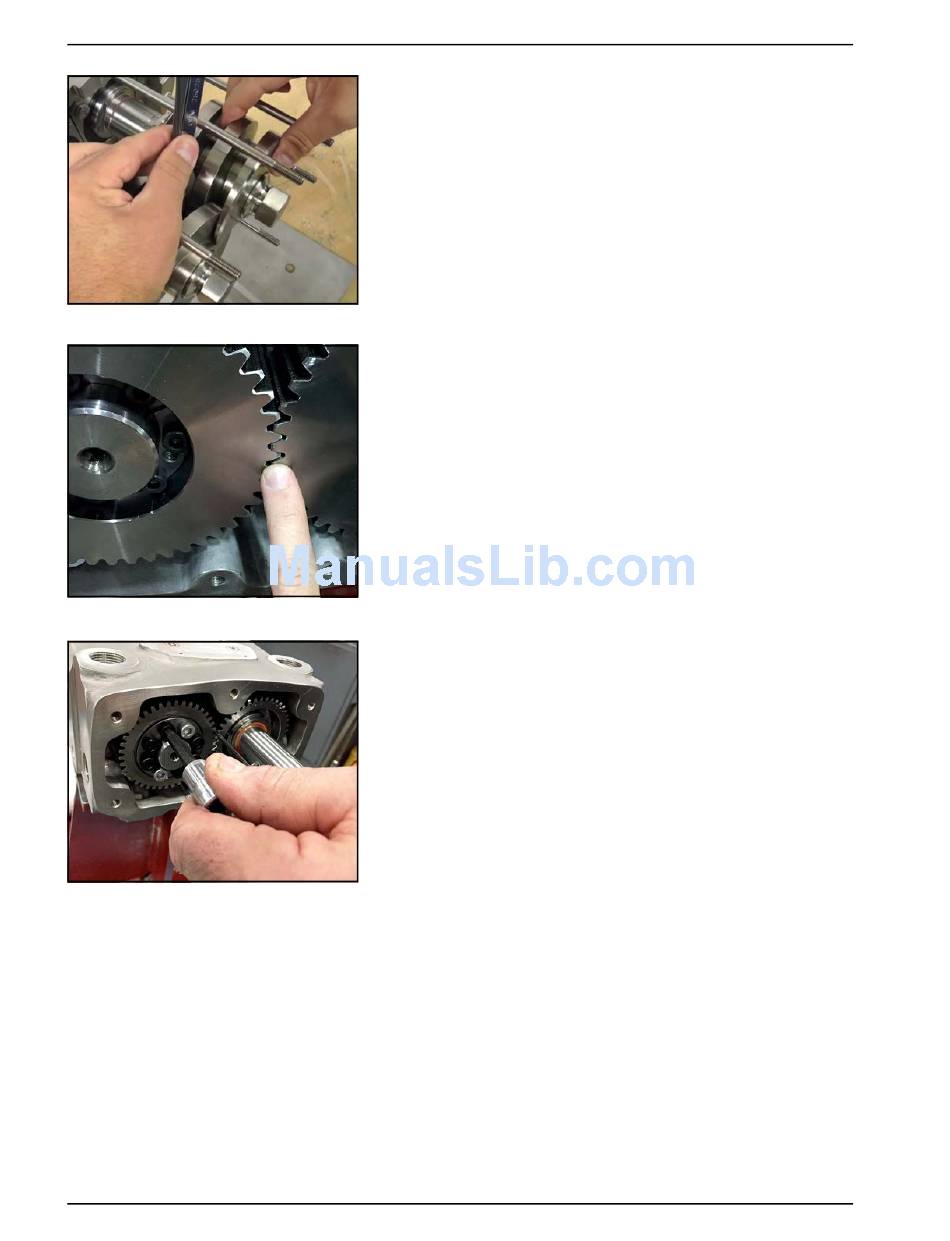

Figure 212 - Rotate screw
Figure 213 - Align gear
Figure 214 - Hand-tighten locking
assembly bolts
Page 82
Waukesha Cherry-Burrell Brand Universal TS Series
9. Insert the feeler gauge selected in step 8 between the screw
flanks. Rotate the right screw counter-clockwise until it
securely traps the feeler gauge between the screw flanks.
10. Align the loose gear with the drive shaft gear.
NOTE: It may be helpful to recess the loose gear slightly so
that when it is tightened down and draws out, it aligns with
the drive gear.
11. Place a soft dowel in the gear teeth to protect the gears from
turning.
12. Hand-tighten the locking assembly bolts in an alternating pat-
tern.
NOTE: To keep the screws timed correctly, it is important to
tighten the second gear to the shaft without rotating the shaft.
