I N S T R U CT I O N M A N UA L

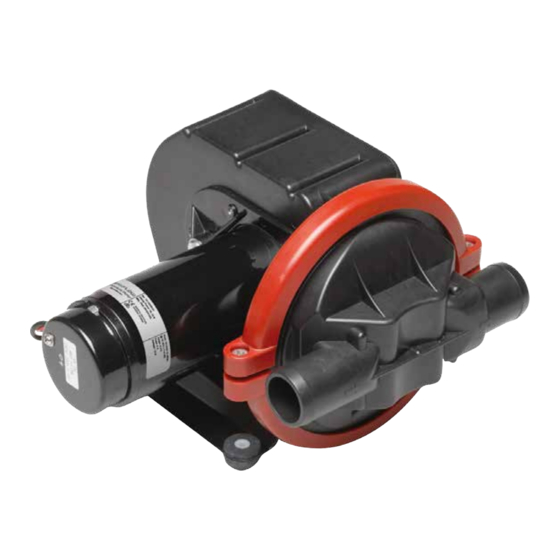

Viking Power 32 & Viking Power Vacuum
12 / 2 4 V D C
O R I G I N A L I N S T R U CT I O N S / T R A N S L AT I O N O F O R I G I N A L I N S T R U CT I O N S
I B - 117 R 0 5 ( 0 9 / 2 017 )
R E A D A N D U N D E R S TA N D T H I S M A N UA L P R I O R TO O P E R AT I N G O R S E R V I C I N G T H I S
P R O D U CT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SPX FLOW Viking Power 32
Summary of Contents for SPX FLOW Viking Power 32
- Page 1 I N S T R U CT I O N M A N UA L Viking Power 32 & Viking Power Vacuum 12 / 2 4 V D C O R I G I N A L I N S T R U CT I O N S / T R A N S L AT I O N O F O R I G I N A L I N S T R U CT I O N S...
- Page 2 Stand: Painted galvanized steel Connection: 1½” hose Features Max. discharge • 32 L/min at open flow – Viking Power 32 height: • 30 L/min at 0.1 bar pressure – Max. suction lift: 2,5 and 5 m Viking Power 32 respectively (Viking Power Vacuum) •...
- Page 3 > English Pressure Flow Amp. draw amperage draw of motor. Low voltage can cause the motor to overheat. Bar kPa Psi L/min USGPM 12V 24V 34.4 1.5 30.8 Maintenance 2.9 27.1 4.4 23.5 The pump valves inside the pump house 5.8 20.0 should be regularly cleared from debris to 7.2 16.7...
- Page 4 > English Service instructions Self-priming The pump is self-priming up to 2,5 and 5 m Change of diaphragm respectively (Viking Power Vacuum) 1. Remove the two screws that hold the Dry running clamps and remove the clamps. The pump can be run dry without any harm. 2.
-
Page 5: Troubleshooting
> English Troubleshooting Symptom Cause Solution 1. The pump doesn’t run. 1.1 Tripped thermal protector 1.1.1 Check the fuse. Let the or blown fuse. motor cool down before restart if it is overheated. 1.2 Faulty wire connection or 1.2.1 Check the battery/power power supply. -
Page 6: Parts List
Parts list 09-47181 09-47264 09-47181 Diaphragm kit 09-47183 09-47182 09-47264 09-47182 Clamp kit 09-47183 Viking Power Vacuum Pump house cpl 09-47182 Viking Power 32 Pump house cpl... - Page 7 Dimensions 139 mm 74 mm Pump no. 10-13373-05, 06, 07, 08 264 mm Pump no. 10-13373-01, 02, 03, 04 Check out the collection of boat parts & hardware we offer.
