Waukesha Cherry-Burrell Brand Universal TS Series

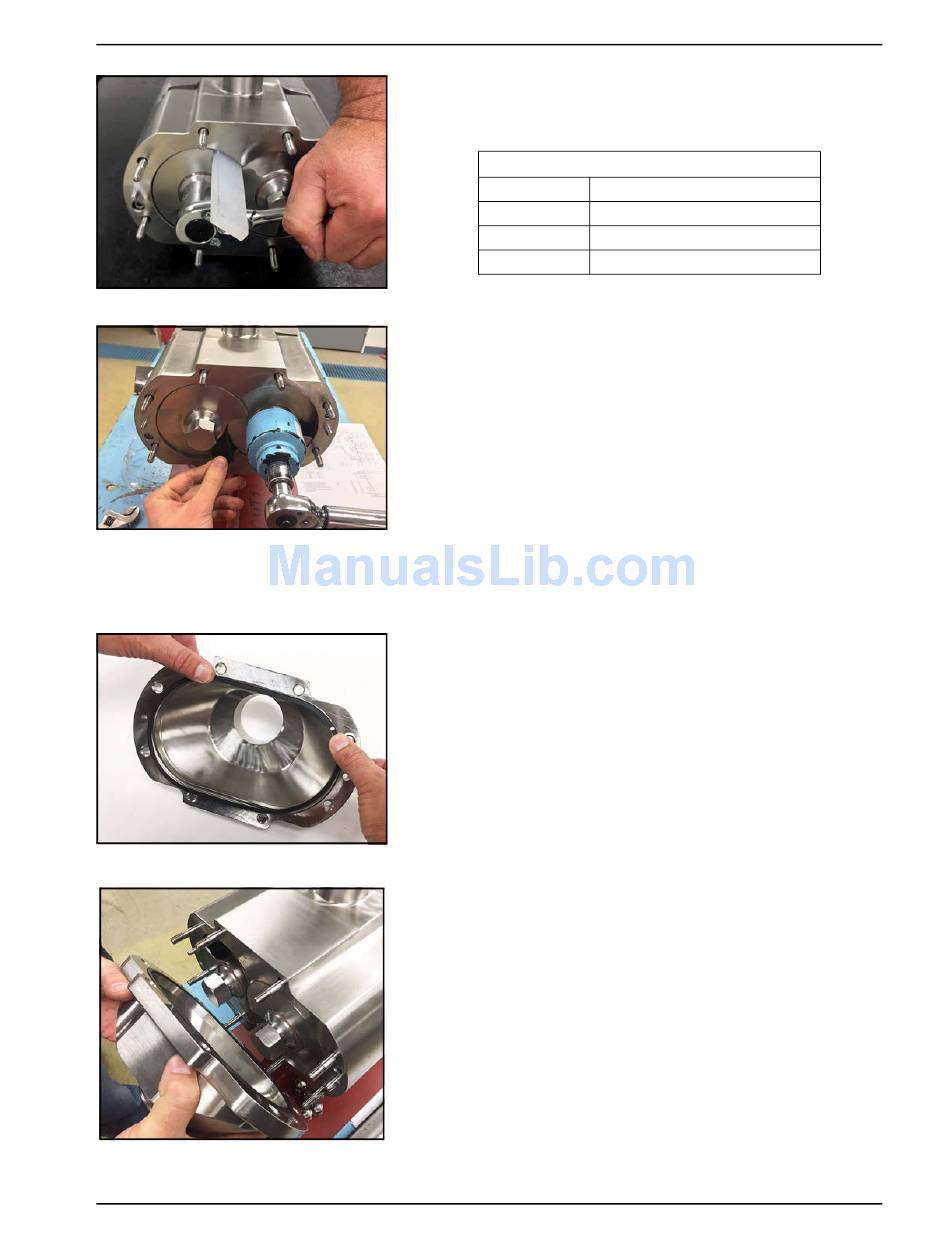

Figure 114 - Torque left screw
Figure 115 - Torque right screw
Figure 116 - Install cover gasket
Figure 117 - Install pump cover
06/2017
8. Block the screws from turning using a blocking dowel (for
015, 030, and 130-UTS, see "Screw Blocking Tool" on
page 114). Torque the left screw nut to specification (see
Table 4, below).
Table 4: Torque Values - Screw Nut
015-UTS
030-UTS
130-UTS
220-UTS
9. For the 015, 030, 130-UTS: Block between the screws as
shown in Figure 115 (see "Screw Blocking Tool" on
page 114).
For the 220-UTS (not shown), block the back of the threads
using a food-grade blocker compatible with the product.
10. Torque the right screw to the specification in Table 4.
11. Remove the screw blocker and spin the pump over to confirm
it rotates freely. If the pump does not spin over freely, fix the
interference before starting the pump.
NOTE: To time the screws, see "Install Gears and Time Screws"
on page 75.

Install cover

1. Install the cover gasket, flat side facing up, into the groove in
the cover. (On the 220-UTS (not pictured), this gasket is
installed in the groove on the body, not on the cover.)
NOTE: It may be helpful to lubricate the cover gasket to help
hold the gasket in place in the groove.
NOTE: For the 220-UTS, it may also be helpful to place four
dots of lubricant at four spots in the groove, to help hold the
gasket in place.
2. All sizes except 220-UTS: Align the cover holes with the
lower cover studs, then slide the cover onto the pump.
95-03141
Maintenance
12 ft-lb (16 N·m)
38 ft-lb (52 N·m)
88 ft-lb (119 N·m)
200 ft-lb (271 N·m)
Page 53
