Remove Screws - SPX FLOW Universal TS Series Instruction Manual

Maintenance

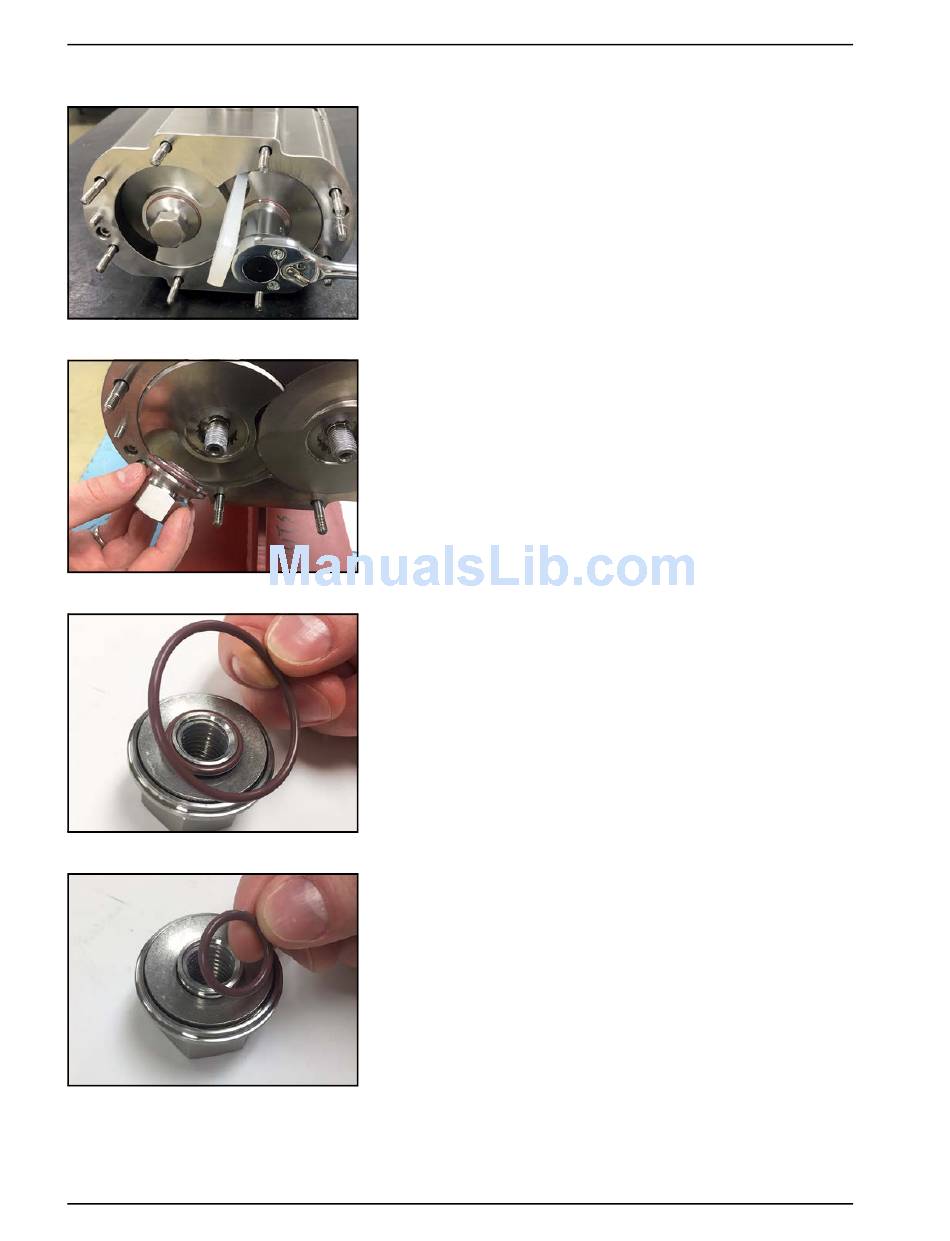

Figure 30 - Loosen screw nuts
Figure 31 - Remove screw nuts
Figure 32 - Remove screw nut O-ring
Figure 33 - Remove washer retainer O-ring
Page 30
Waukesha Cherry-Burrell Brand Universal TS Series

Remove screws

1. Block the screws from turning using a food grade blocker (For
the 015, 030, and 130-UTS, see "Screw Blocking Tool" on
page 114), then loosen the screw nuts.
2. Remove the screw nuts.
3. Remove the screw nut O-ring from the outer O-ring groove on
each screw nut.
4. Remove the washer retainer O-ring from the inner O-ring
groove on each screw nut.
