Maintenance

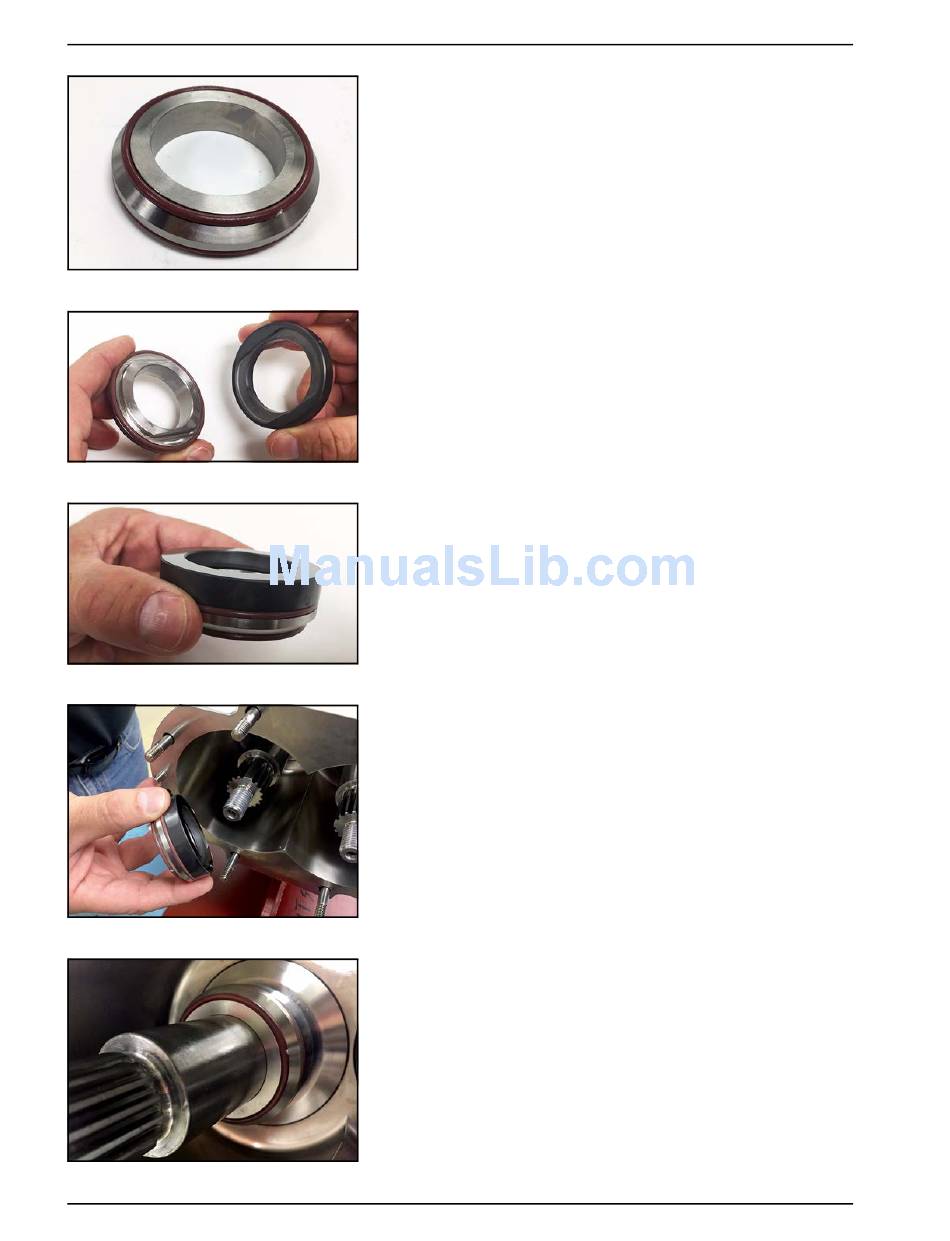

Figure 94 - Cap-to-screw O-ring installed
Figure 95 - Line up seal cap and seal seat
Figure 96 - Seal seat installed on seal cap
Figure 97 - Install seal cap assembly
Figure 98 - Seal cap installed on shaft
Page 48
Waukesha Cherry-Burrell Brand Universal TS Series
4. Figure 94 shows the cap-to-screw O-ring installed on the seal
cap.
5. Line up the flats on the seal cap, with the flats on the seal
seat, and place the seal seat on the seal cap.
6. Figure 96 shows the seal seat installed on the seal cap.
7. Install the seal cap assembly on the shaft. Make sure the
face of the seal seat is seated against the face of the seal
previously installed on the shaft.
8. Figure 98 shows the seal cap assembly installed on the shaft.
See the note next to Figure 99 on page 49.
