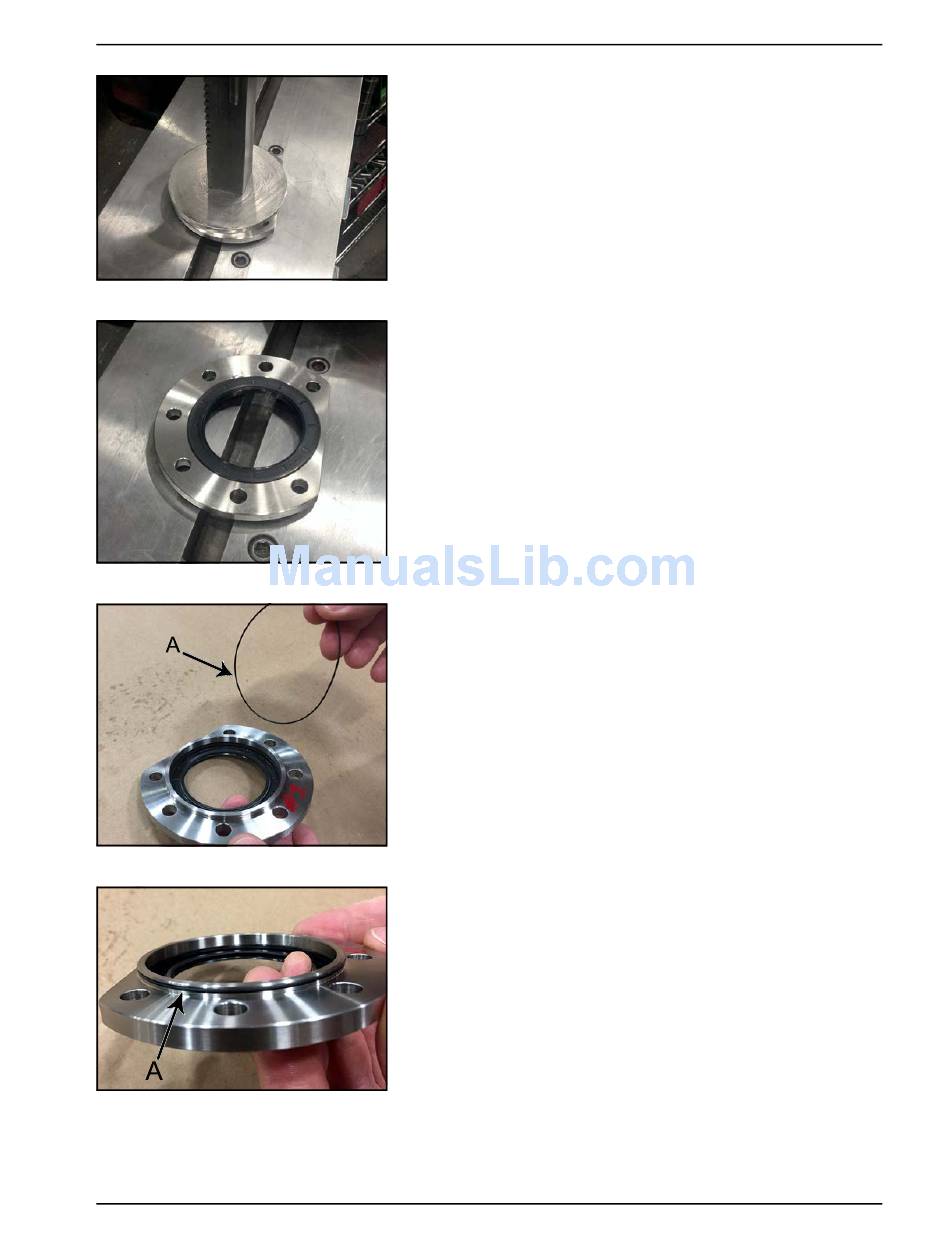

Figure 183 - Install bearing retainer seal
Figure 184 - Bearing retainer seal installed
Figure 185 - Install bearing retainer O-ring
Figure 186 - Bearing retainer O-ring
installed
06/2017
2. Press to install the bearing retainer seal into the bearing
retainer.
3. When correctly installed, the flat portion of the seal should be
flush with the bearing retainer.
4. Repeat for the second bearing retainer.
5. Assemble the bearing retainer O-ring (item A) on the bearing
retainer.
6. Figure 186 shows the bearing retainer O-ring (A) installed on
the bearing retainer.
7. Repeat for the second bearing retainer.
