SPX FLOW Universal TS Series Instruction Manual page 69

Waukesha Cherry-Burrell Brand Universal TS Series

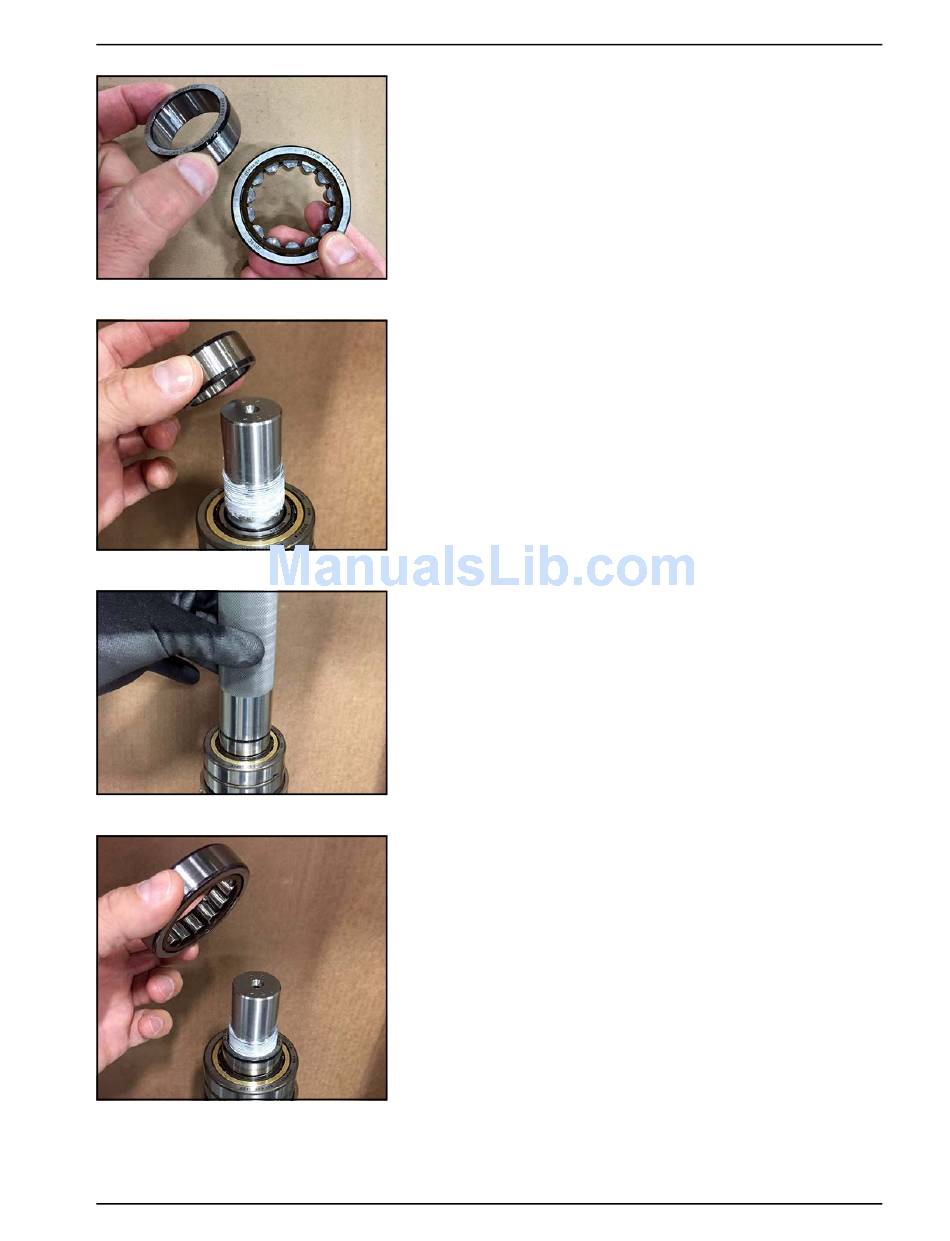

Figure 163 - Remove race from bearing
Figure 164 - Place race onto shaft
Figure 165 - Press race onto shaft
Figure 166 - Place bearing onto race
06/2017
25. Remove the inner race of the cylindrical roller bearing.
26. Place the inner race of the cylindrical roller bearing onto the
shaft.
27. Press the inner race of the cylindrical roller bearing onto the
shaft until it contacts the four point angular contact bearing
already installed.
28. Place the outer race of the cylindrical roller bearing onto the
inner race installed on the shaft.
29. For the drive shaft, repeat steps 1 through 28, then skip to
step 33. For the short shaft, continue.
