Waukesha Cherry-Burrell Brand Universal TS Series

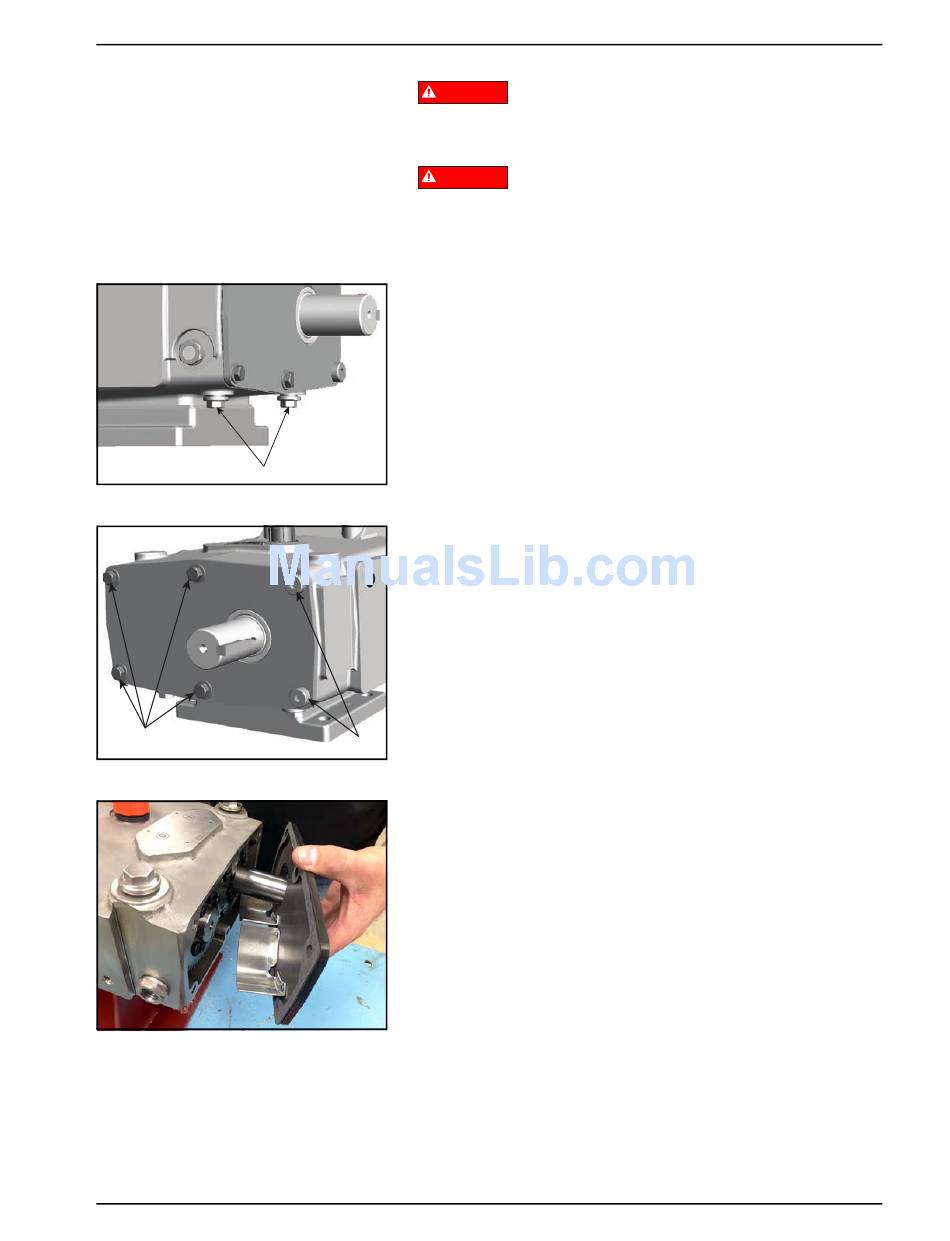

Gear Case Disassembly

45
Figure 122 - Remove oil drain plug
60
Figure 123 - Remove fasteners
Figure 124 - Remove gear case cover
06/2017
DANGER
To avoid serious injury, DO NOT install, clean, service, or repair
the pump unless all power is off and locked out and the pump is
de-pressurized.
DANGER
To avoid serious injury, shut off and drain product from the pump
prior to disconnecting piping.

Remove oil drain plugs and cover

1. Remove one of the oil drain plugs (location shown in
Figure 122, item 45) and drain the oil.
2. Remove the fasteners from the gear case cover; the two
socket head shoulder bolts (Figure 123, item 59) from the two
holes by the drive shaft, and the four (six on the 220-UTS)
hex head cap screws (item 60) from the remaining holes.
59
3. Remove the gear case cover. Discard the cover gasket.
95-03141
Maintenance
Page 55
