Maintenance
60

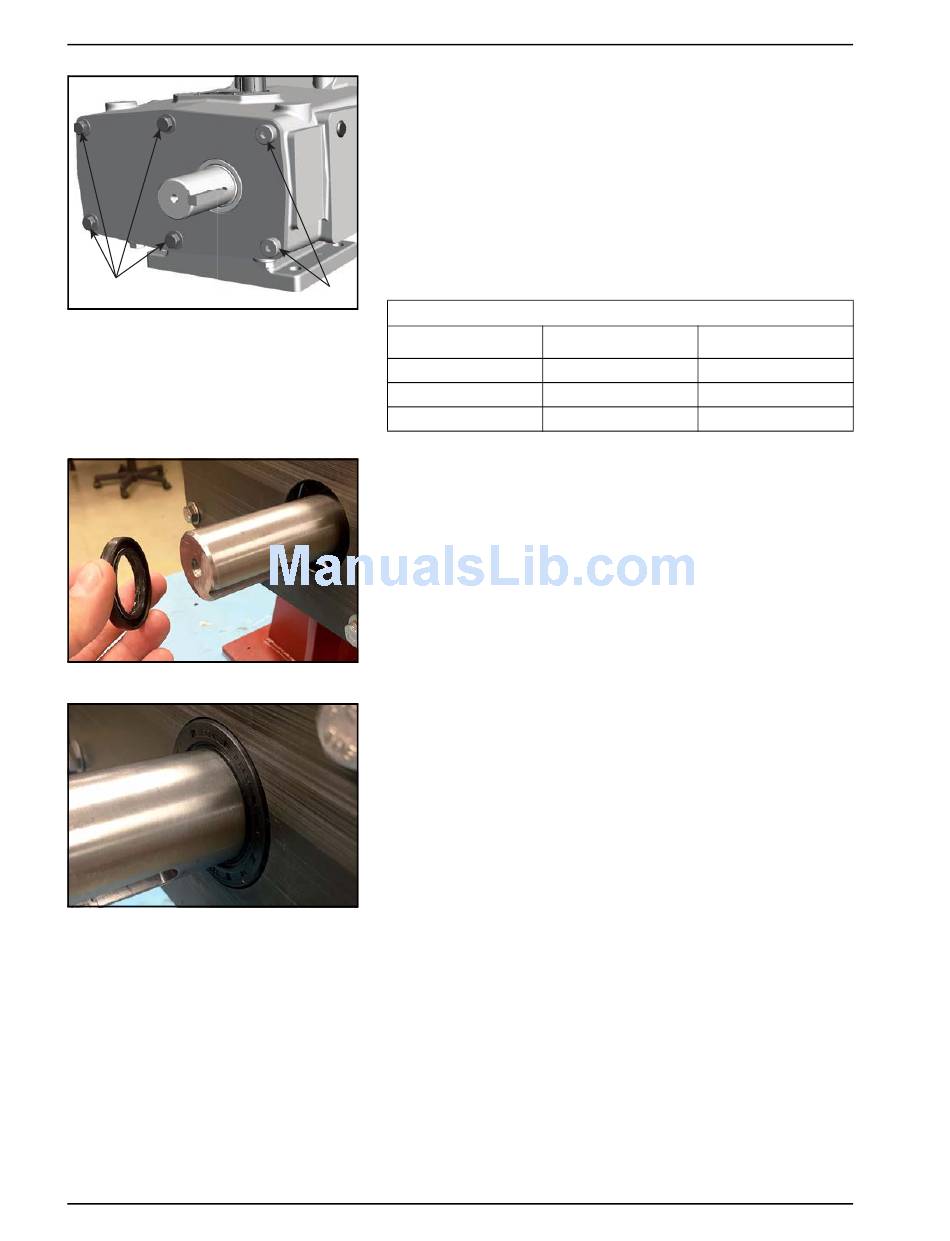

Figure 225 - Install fasteners
Figure 226 - Install oil seal
Figure 227 - Oil seal installed
Page 86
Waukesha Cherry-Burrell Brand Universal TS Series
9. Install the two socket head shoulder bolts (Figure 225, item
59) in the two holes by the drive shaft, and the four (six on the
220-UTS) hex head cap screws (item 60) in the remaining
holes. Snug down the bolts/screws by hand.
10. Before torquing the bolts/screws, turn the drive shaft and
ensure that the gears do not contact the gear shrouds.
NOTE: If there is contact, remove the cover and shift the
shrouds as low on the cover as the shroud screw holes allow.
11. Torque the fasteners in an alternating pattern as specified in
Table 11.
59
Table 11: Torque Values - Gear Case Cover
Model
015-UTS
030-UTS
130-UTS, 220-UTS
12. On the ID of the oil seal, apply lubricant between the lips of
the seal.
13. Install the oil seal on the drive shaft.
14. Press the oil seal into the gear case cover, flush with the out-
side face.
95-03141
HHCS, item 60 SHSB, item 59
88 in-lb (10 N·m) 110 in-lb (12 N·m)
110 in-lb (12 N·m) 132 in-lb (15 N·m)
132 in-lb (15 N·m) 176 in-lb (20 N·m)
06/2017
