Waukesha Cherry-Burrell Brand Universal TS Series

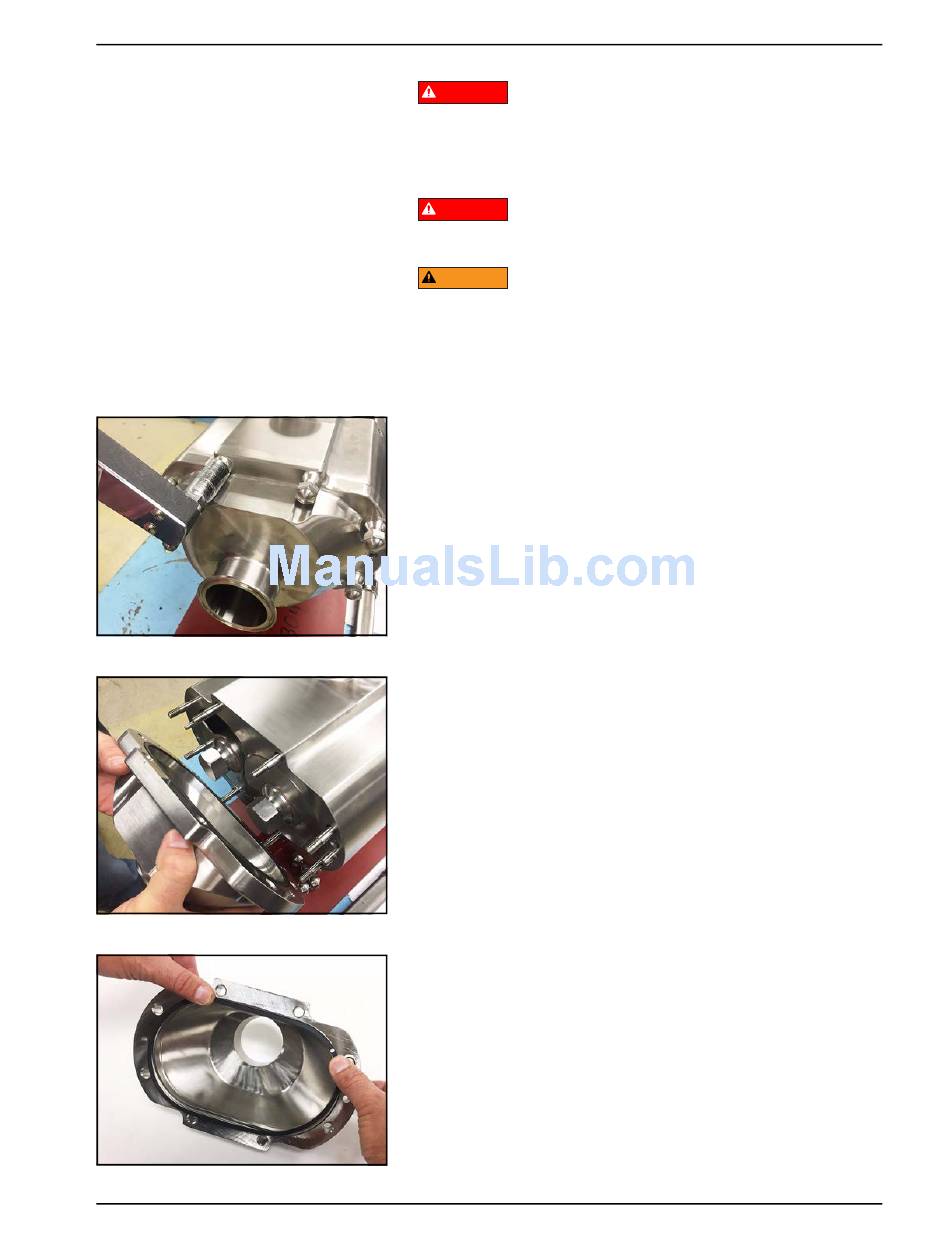

Fluid Head Disassembly

Figure 27 - Remove cover nuts
Figure 28 - Remove pump cover
Figure 29 - Remove cover gasket
06/2017
DANGER
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, service,
or repair pump unless all power is off and locked out and the
pump is de-pressurized.
DANGER
To avoid serious injury, shut off and drain product from the pump
prior to disconnecting the piping.
WARNING
The pump components and piping may contain sharp edges.
Handle the screws carefully because edges may be sharp. Wear
gloves while installing and servicing the pump to help avoid
injuries from these hazards.

Remove cover

1. Remove the cover nuts from the cover.
2. Remove the cover from the body. If necessary, use a soft
hammer to tap the cover off the body studs and dowel pins.
3. Remove and inspect the cover gasket.
NOTE: On the 220-UTS (not pictured), this gasket is installed
in the groove on the body, not on the cover.
95-03141
Maintenance
Page 29
