Maintenance

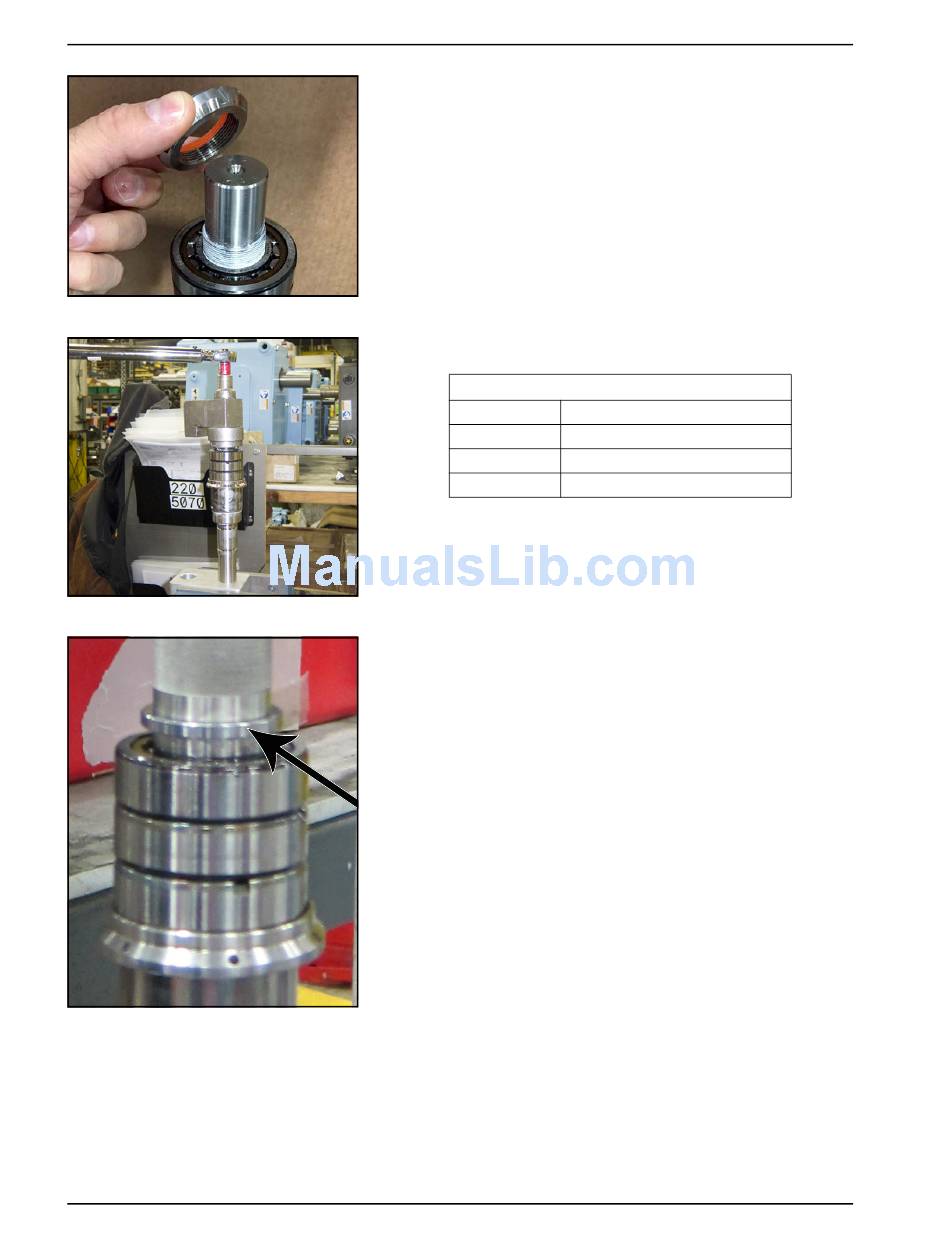

Figure 167 - Place locking nut onto shaft
Figure 168 - Torque down locking nut
Figure 169 - Press gear spacer on drive
shaft
Page 68
Waukesha Cherry-Burrell Brand Universal TS Series
30. Short shaft only: Apply anti-seize to the shaft.
Place the locking nut onto the shaft, and screw it on finger-
tight.
31. Short shaft only: Place the shaft in a holding device clamped
into a vise, then torque down the locking nut onto the shaft.
Table 7: Torque Values - Locking Nut
015-UTS
030-UTS
130-UTS
220-UTS
32. Short shaft only: skip to "Install shafts in gear case" on
page 70.
33. Drive shaft only: Press the gear spacer onto the shaft until it
contacts the cylindrical roller bearing already installed.
NOTE: Make sure the gear spacer is positioned so that the
flanged side is up.
95-03141
15 ft-lb (20 N·m)
30 ft-lb (41 N·m(
45 ft-lb (61 N·m)
75 ft-lb (102 N·m)
06/2017
