NOTE:
5 In single probe versions, all LTCDIFF pickup and dropout settings
display "N/A".
6 Be careful to check that the LTCDIFF & LTCDIFF1 & 2 pickup and
dropout set points are never set to greater than 20 or less than –20.
Erroneous operation of the LTCDIFF pickup or dropout will result if
these set points are set beyond the stated range.

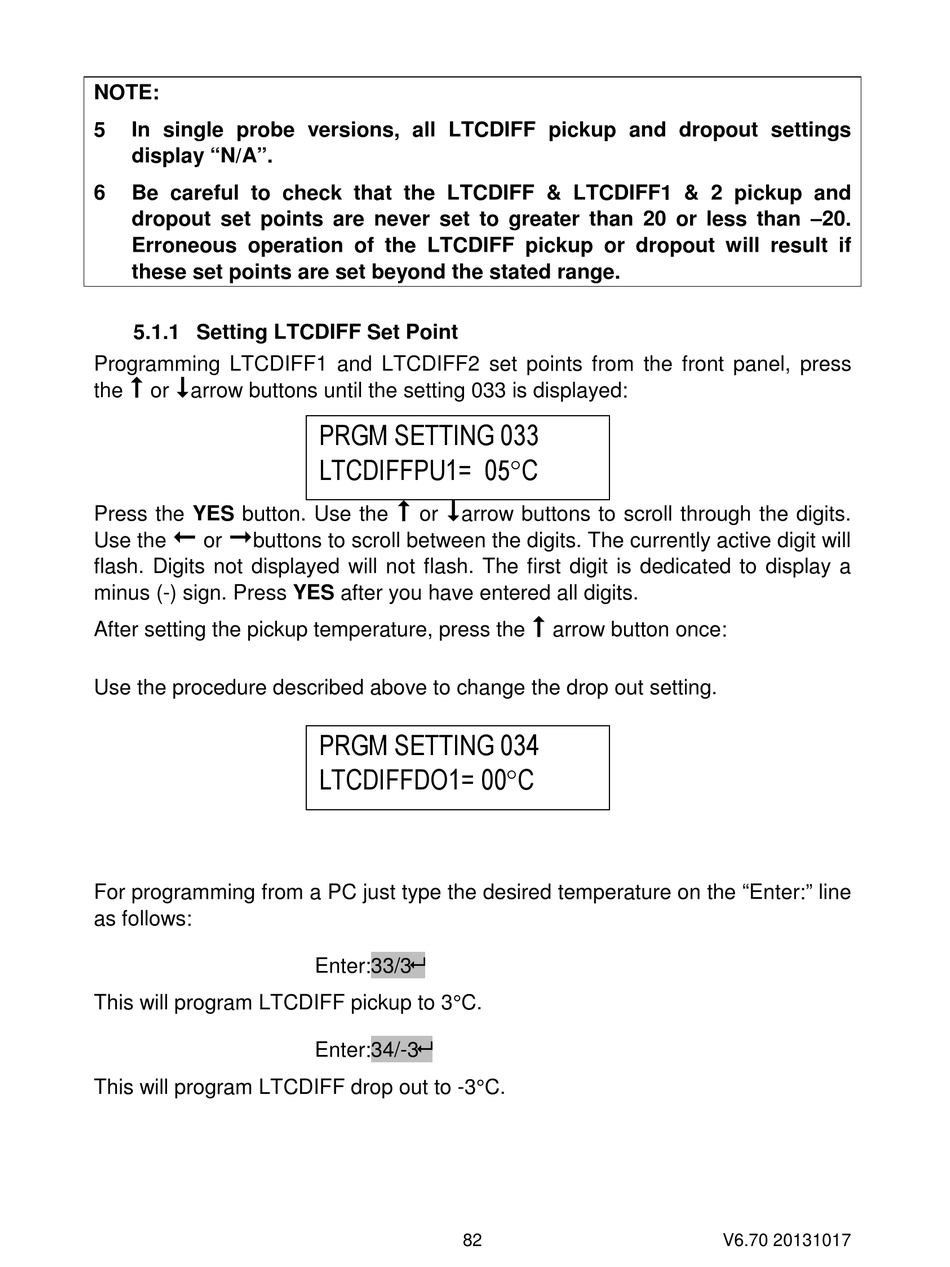

5.1.1 Setting LTCDIFF Set Point

Programming LTCDIFF1 and LTCDIFF2 set points from the front panel, press
 
the or arrow buttons until the setting 033 is displayed:
Press the YES button. Use the
 
Use the or buttons to scroll between the digits. The currently active digit will
flash. Digits not displayed will not flash. The first digit is dedicated to display a
minus (-) sign. Press YES after you have entered all digits.
After setting the pickup temperature, press the
Use the procedure described above to change the drop out setting.
For programming from a PC just type the desired temperature on the "Enter:" line
as follows:
This will program LTCDIFF pickup to 3C.
This will program LTCDIFF drop out to -3C.
PRGM SETTING 033
LTCDIFFPU1= 05C
 
or arrow buttons to scroll through the digits.
PRGM SETTING 034
LTCDIFFDO1= 00C
Enter:33/3
Enter:34/-3
82

arrow button once:
V6.70 20131017
