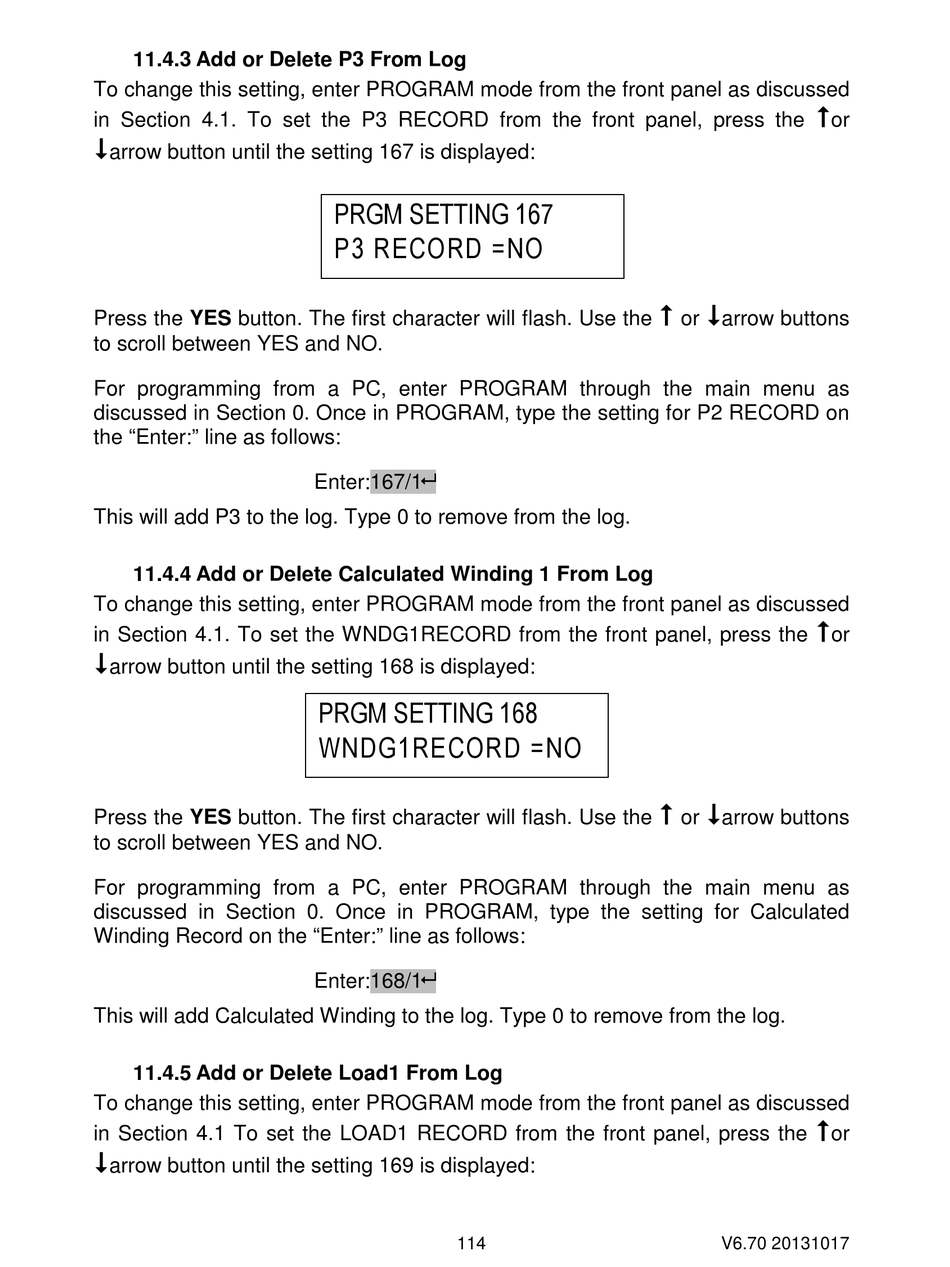

11.4.3 Add or Delete P3 From Log

To change this setting, enter PROGRAM mode from the front panel as discussed
in Section 4.1. To set the P3 RECORD from the front panel, press the

arrow button until the setting 167 is displayed:
Press the YES button. The first character will flash. Use the
to scroll between YES and NO.
For programming from a PC, enter PROGRAM through the main menu as
discussed in Section 0. Once in PROGRAM, type the setting for P2 RECORD on
the "Enter:" line as follows:
This will add P3 to the log. Type 0 to remove from the log.

11.4.4 Add or Delete Calculated Winding 1 From Log

To change this setting, enter PROGRAM mode from the front panel as discussed
in Section 4.1. To set the WNDG1RECORD from the front panel, press the

arrow button until the setting 168 is displayed:
Press the YES button. The first character will flash. Use the
to scroll between YES and NO.
For programming from a PC, enter PROGRAM through the main menu as
discussed in Section 0. Once in PROGRAM, type the setting for Calculated
Winding Record on the "Enter:" line as follows:
This will add Calculated Winding to the log. Type 0 to remove from the log.

11.4.5 Add or Delete Load1 From Log

To change this setting, enter PROGRAM mode from the front panel as discussed
in Section 4.1 To set the LOAD1 RECORD from the front panel, press the

arrow button until the setting 169 is displayed:
PRGM SETTING 167
P3 RECORD =NO
Enter:167/1
PRGM SETTING 168
WNDG1RECORD =NO
Enter:168/1
114

or
 
or arrow buttons

or
 
or arrow buttons

or
